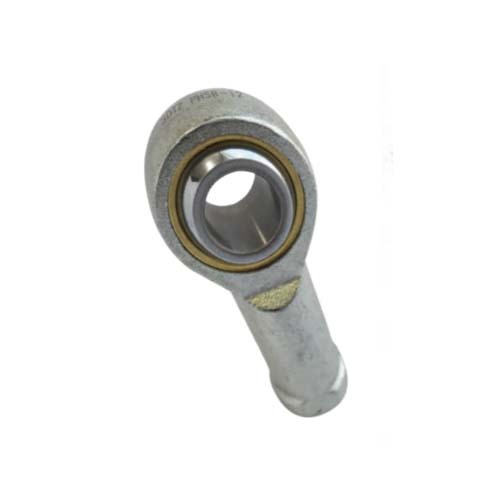

IKO PHSB-4L Rod End Imperial Female Left | AIMS Industrial

About Pilloball Structure and Features

• PILLOBALLs are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time.
• These bushings are classified by sliding surface types, namely, insert type, die-cast type, and maintenance-free type.
• In the insert type, a spherical inner ring makes contact with the special copper alloy bushing with superior run-in properties.
• In the die-cast type, a spherical inner ring makes direct contact with the bore surface of the body of a special zinc die-cast alloy.
• In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of the maintenance-free type.
• Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type.
• PILLOBALL Rod Ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines.
• PILLOBALLs are used in control and link mechanisms in machine tools, textile machines, packaging machines, etc.
• The maintenance-free type is especially suitable for loading in one direction and is the best choice for machines in which oil must be avoided such as food processing machines, or machines that cannot be re-lubricated.

Rod Ends (metric and imperial, male/female right and left hand thread) are articulating pivot bearings for mechanical linkages, control rods, and actuator connections in agricultural, industrial, and automotive equipment.

Agriculture and Primary Industries

• Tractor linkage, three-point hitch, and implement control rod ends
• Farm machinery actuator, steering, and pivot rod end supply
• Agricultural equipment linkage and control rod end maintenance

Automotive and Transport

• Vehicle steering, suspension, and brake linkage rod end supply
• Commercial vehicle and fleet control linkage rod end replacement
• Automotive and transport rod end bearing maintenance

General Engineering

• Industrial machinery control, linkage, and actuator rod ends
• Engineering plant and production line rod end bearing supply
• Workshop and maintenance rod end replacement

Product Specifications

• Type: Rod end with spherical bearing
• Thread gender: Male
• Thread direction: Left-hand
• Sizing: Imperial
• Bearing: Spherical plain (steel/steel or PTFE-lined)
