Imperial Taper Lock Bush - Cast Iron
Imperial Taper Lock Bush - Cast Iron

Finer Power taper Lock Bushes, 1008 x 1

$12.17
$12.17
Inc. GST

Available

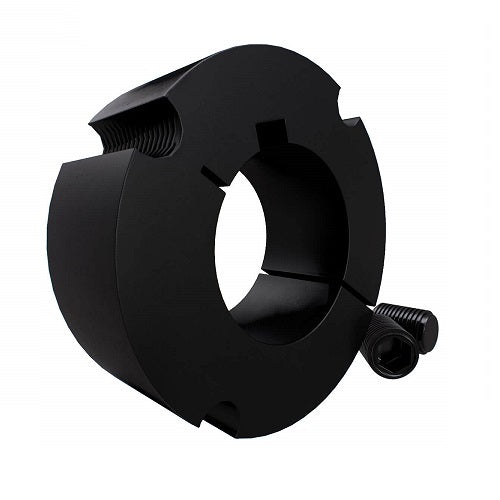

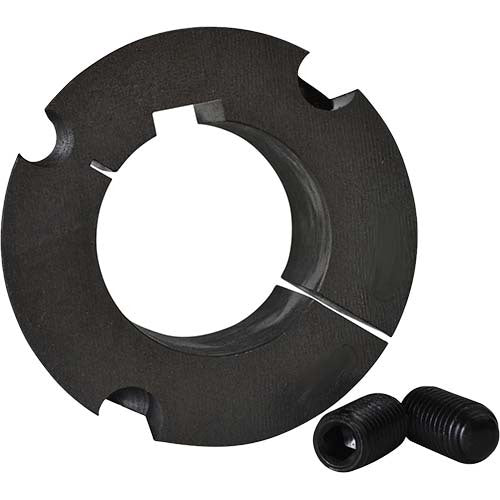

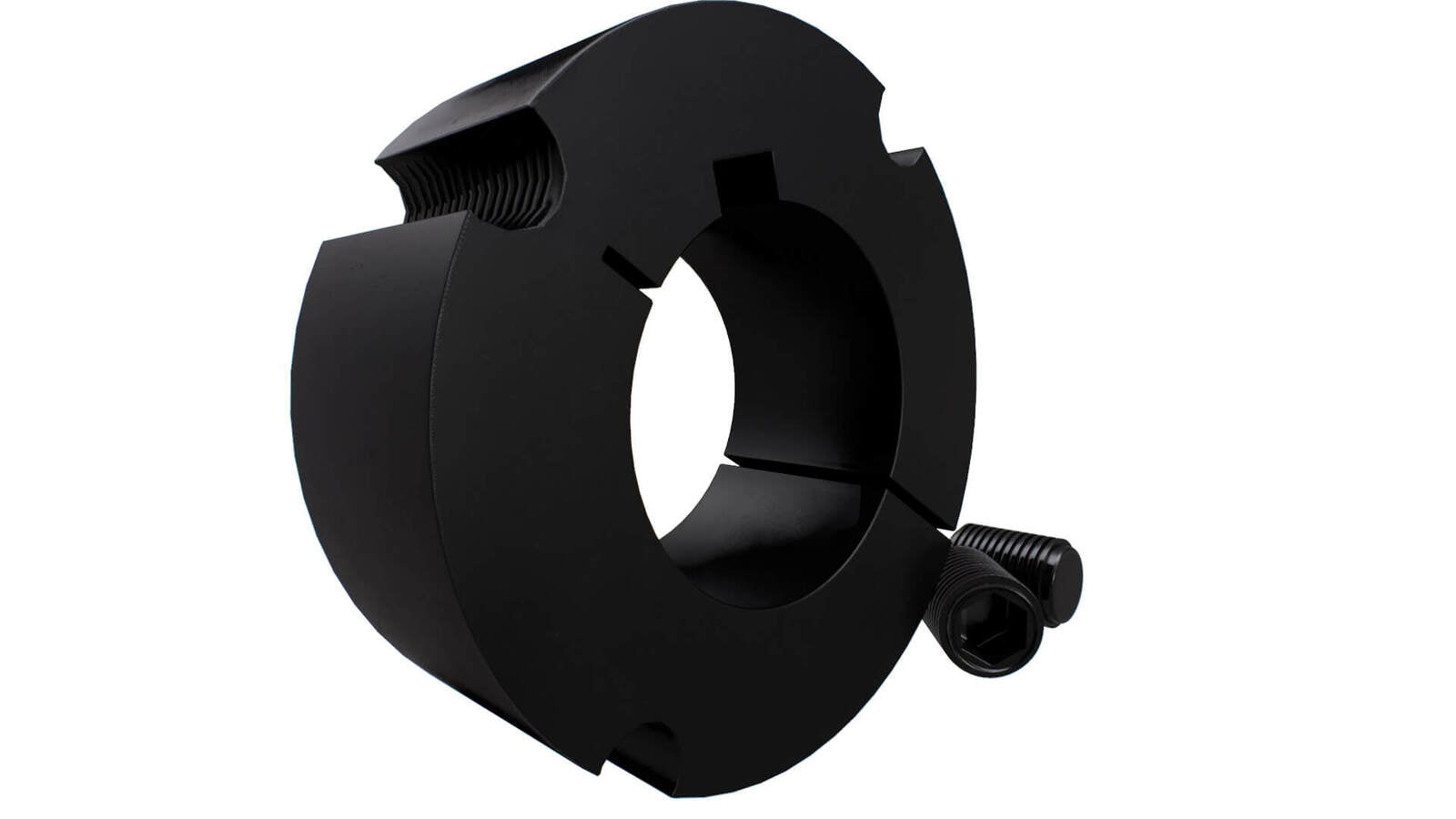

These imperial taper lock bushes are cast iron, with imperial bores. The range covers 18 series, from 1008 to 5050, and 255 bore sizes from 3/8 to 5".

A taper lock bush fits into a hub with a matching tapered bore, such as a taper lock pulley, sprocket or coupling hub. The bush is split so it clamps onto the shaft when its screws are tightened, and it can be removed and refitted. Choose the bush by series, which must match the series of the hub, and then by bore to suit your shaft.

Where this product is used

  • Fitting taper lock V pulleys to a shaft
  • Fitting taper lock sprockets to a shaft
  • Fitting taper lock coupling hubs and other taper lock hubs to a shaft

Features

  • Cast iron taper lock bush, series 1008 to 5050
  • Imperial bores from 3/8 to 5"
  • Keyway size for each bore

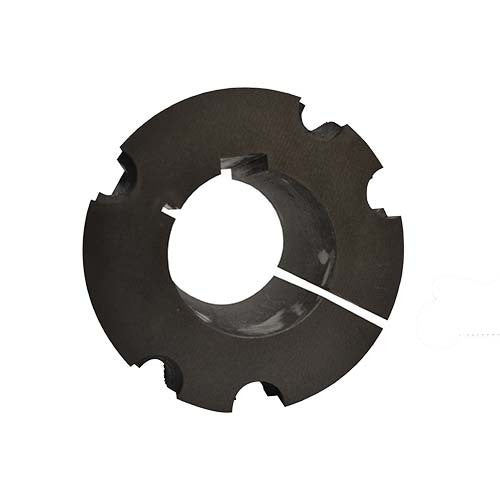

  • Two screws on series up to 3030 and three screws on series 3525 and above
  • Can be removed and refitted
  • Fits a hub with a matching tapered bore of the same series

Key specifications

Specification Detail
Product Taper lock bush
Material Cast Iron
Bore system Imperial
Series 1008 to 5050
Bore range 3/8 to 5"
Number of sizes 255

Series and bore sizes

Series Bore range (in) Bores available (in) Length (mm) Screws (qty x size, in)
1008 3/8 to 1 3/8, 1/2, 5/8, 3/4, 7/8, 1 22.2 2 x 1/4 x 1/2
1108 3/8 to 1-1/8 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/8 22.2 2 x 1/4 x 1/2
1210 1/2 to 1-1/4 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4 25.4 2 x 3/8 x 5/8
1215 5/8 to 1-1/4 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4 38.1 2 x 3/8 x 5/8
1610 1/2 to 1-11/16 1/2, 5/8, 3/4, 7/8, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-11/16 25.4 2 x 3/8 x 5/8
1615 1/2 to 1-5/8 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8 38.1 2 x 3/8 x 5/8
2012 1/2 to 2 1/2, 3/4, 7/8, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-11/16, 1-3/4, 1-7/8, 1-15/16, 2 31.8 2 x 7/16 x 7/8
2017 1 to 2 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-3/4, 2 44.5 2 x 7/16 x 7/8
2517 15/16 to 2-1/2 15/16, 1, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-11/16, 1-3/4, 1-7/8, 1-15/16, 2, 2-1/8, 2-3/16, 2-1/4, 2-3/8, 2-7/16, 2-1/2 44.5 2 x 1/2 x 1
2525 1 to 2-1/2 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 1-7/8, 2, 2-1/8, 2-1/4, 2-3/8, 2-1/2 63.5 2 x 1/2 x 1
3020 1 to 3 1, 1-1/8, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-11/16, 1-3/4, 1-7/8, 1-15/16, 2, 2-1/8, 2-3/16, 2-1/4, 2-3/8, 2-7/16, 2-1/2, 2-5/8, 2-11/16, 2-3/4, 2-7/8, 2-15/16, 3 50.8 2 x 5/8 x 1-1/4
3030 1-1/4 to 3 1-1/4, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 1-7/8, 2, 2-1/8, 2-3/16, 2-1/4, 2-3/8, 2-7/16, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 2-15/16, 3 76.2 2 x 5/8 x 1-1/4
3525 1-1/4 to 3-1/2 1-1/4, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 1-7/8, 2, 2-1/8, 2-1/4, 2-3/8, 2-7/16, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 3, 3-1/8, 3-1/4, 3-3/8, 3-1/2 63.5 3 x 1/2 x 1-1/2
3535 1-1/4 to 3-1/2 1-1/4, 1-5/16, 1-3/8, 1-1/2, 1-5/8, 1-11/16, 1-3/4, 1-7/8, 2, 2-1/8, 2-3/16, 2-1/4, 2-3/8, 2-7/16, 2-1/2, 2-5/8, 2-11/16, 2-3/4, 2-7/8, 2-15/16, 3, 3-1/8, 3-1/4, 3-3/8, 3-1/2 88.9 3 x 1/2 x 1-1/2
4030 1-3/4 to 4 1-3/4, 1-7/8, 2, 2-1/8, 2-1/4, 2-3/8, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 3, 3-1/8, 3-1/4, 3-3/8, 3-1/2, 3-3/4, 4 76.2 3 x 5/8 x 1-1/2
4040 1-3/4 to 4 1-3/4, 1-7/8, 2, 2-1/8, 2-3/16, 2-1/4, 2-3/8, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 3, 3-1/8, 3-1/4, 3-3/8, 3-1/2, 3-3/4, 4 101.6 3 x 5/8 x 1-3/4
4545 2-1/4 to 4-1/2 2-1/4, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 3, 3-1/8, 3-1/4, 3-3/8, 3-1/2, 3-3/4, 4, 4-1/8, 4-1/4, 4-1/2 114.3 3 x 3/4 x 2
5050 2-1/2 to 5 2-1/2, 2-3/4, 3, 3-1/4, 3-1/2, 4, 4-1/4, 4-1/2, 5 127 3 x 7/8 x 2-1/4

Choosing the right option

Check the series number on the hub and choose a bush of the same series. The bore must suit your shaft diameter, and the keyway for the bore is the key size for the shaft and hub. Tighten the screws using the torque in the installation instructions for the bush or hub you are fitting.

Imperial bores come in inches, with the metric conversion shown in the variant details.

Length and screw sizes are nominal and are for reference.

Option Part number SKU
1008 x 1 1008-1 A0060583
1008 x 1/2 1008-1/2 A0060584
1008 x 3/4 1008-3/4 A0060585
1008 x 3/8 1008-3/8 A0060586
1008 x 5/8 1008-5/8 A0060587
1008 x 7/8 1008-7/8 A0060588
1108 x 1 1108-1 A0060589
1108 x 1 1/8 1108-1-1/8 A0060590
1108 x 1/2 1108-1/2 A0060591
1108 x 3/4 1108-3/4 A0060592
1108 x 3/8 1108-3/8 A0060593
1108 x 5/8 1108-5/8 A0060594
1108 x 7/8 1108-7/8 A0060595
1210 x 1 1210-1 A0060596
1210 x 1 1/4 1210-1-1/4 A0060597
1210 x 1 1/8 1210-1-1/8 A0060598
1210 x 1/2 1210-1/2 A0060599
1210 x 3/4 1210-3/4 A0060600
1210 x 5/8 1210-5/8 A0060601
1210 x 7/8 1210-7/8 A0060602
1215 x 1 1215-1 A0060603
1215 x 1 1/4 1215-1-1/4 A0060604
1215 x 1 1/8 1215-1-1/8 A0060605
1215 x 3/4 1215-3/4 A0060606
1215 x 5/8 1215-5/8 A0060607
1215 x 7/8 1215-7/8 A0060608
1610 x 1 1610-1 A0060609
1610 x 1 1/2 1610-1-1/2 A0060610
1610 x 1 1/4 1610-1-1/4 A0060611
1610 x 1 1/8 1610-1-1/8 A0060612
1610 x 1 11/16 1610-1-11/16 A0060613
1610 x 1 3/16 1610-1-3/16 A0060614
1610 x 1 3/8 1610-1-3/8 A0060615
1610 x 1 5/8 1610-1-5/8 A0060616
1610 x 1 7/16 1610-1-7/16 A0060617
1610 x 1/2 1610-1/2 A0060618
1610 x 3/4 1610-3/4 A0060619
1610 x 5/8 1610-5/8 A0060620
1610 x 7/8 1610-7/8 A0060621
1610 x 1-1/16 1610-1-1/16 A0148716
1615 x 1 1615-1 A0060622
1615 x 1 1/2 1615-1-1/2 A0060623
1615 x 1 1/4 1615-1-1/4 A0060624
1615 x 1 1/8 1615-1-1/8 A0060625
1615 x 1 3/8 1615-1-3/8 A0060626
1615 x 1 5/8 1615-1-5/8 A0060627
1615 x 1 7/16 1615-1-7/16 A0060628
1615 x 1/2 1615-1/2 A0060629
1615 x 3/4 1615-3/4 A0060630
1615 x 5/8 1615-5/8 A0060631
1615 x 7/8 1615-7/8 A0060632
2012 x 1 2012-1 A0060633
2012 x 1 1/2 2012-1-1/2 A0060634
2012 x 1 1/4 2012-1-1/4 A0060635
2012 x 1 1/8 2012-1-1/8 A0060636
2012 x 1 11/16 2012-1-11/16 A0060637
2012 x 1 15/16 2012-1-15/16 A0060638
2012 x 1 3/16 2012-1-3/16 A0060639
2012 x 1 3/4 2012-1-3/4 A0060640
2012 x 1 3/8 2012-1-3/8 A0060641
2012 x 1 5/8 2012-1-5/8 A0060642
2012 x 1 7/16 2012-1-7/16 A0060643
2012 x 1 7/8 2012-1-7/8 A0060644
2012 x 2 2012-2 A0060645
2012 x 3/4 2012-3/4 A0060646
2012 x 7/8 2012-7/8 A0060648
2012 x 1-1/16 2012-1-1/16 A0148717
2012 x 1/2 2012-1/2 A0148718
2017 x 1 2017-1 A0060649
2017 x 1 1/2 2017-1-1/2 A0060650
2017 x 1 1/4 2017-1-1/4 A0060651
2017 x 1 1/8 2017-1-1/8 A0060652
2017 x 1 3/4 2017-1-3/4 A0060653
2017 x 1 3/8 2017-1-3/8 A0060654
2017 x 2 2017-2 A0060655
2517 x 1 2517-1 A0060656
2517 x 1 1/2 2517-1-1/2 A0060657
2517 x 1 1/4 2517-1-1/4 A0060658
2517 x 1 1/8 2517-1-1/8 A0060659
2517 x 1 11/16 2517-1-11/16 A0060660
2517 x 1 15/16 2517-1-15/16 A0060661
2517 x 1 3/16 2517-1-3/16 A0060662
2517 x 1 3/4 2517-1-3/4 A0060663
2517 x 1 3/8 2517-1-3/8 A0060664
2517 x 1 5/16 2517-1-5/16 A0060665
2517 x 1 5/8 2517-1-5/8 A0060666
2517 x 1 7/16 2517-1-7/16 A0060667
2517 x 1 7/8 2517-1-7/8 A0060668
2517 x 2 2517-2 A0060669
2517 x 2 1/2 2517-2-1/2 A0060670
2517 x 2 1/4 2517-2-1/4 A0060671
2517 x 2 1/8 2517-2-1/8 A0060672
2517 x 2 3/16 2517-2-3/16 A0060673
2517 x 2 3/8 2517-2-3/8 A0060674
2517 x 2 7/16 2517-2-7/16 A0060675
2517 x 15/16 2517-15/16 A0148722
2525 x 1 2525-1 A0060678
2525 x 1 1/2 2525-1-1/2 A0060679
2525 x 1 1/4 2525-1-1/4 A0060680
2525 x 1 1/8 2525-1-1/8 A0060681
2525 x 1 3/4 2525-1-3/4 A0060682
2525 x 1 3/8 2525-1-3/8 A0060683
2525 x 1 5/8 2525-1-5/8 A0060684
2525 x 1 7/8 2525-1-7/8 A0060685
2525 x 2 2525-2 A0060686
2525 x 2 1/2 2525-2-1/2 A0060687
2525 x 2 1/4 2525-2-1/4 A0060688
2525 x 2 1/8 2525-2-1/8 A0060689
2525 x 2 3/8 2525-2-3/8 A0060690
3020 x 1 3020-1 A0060691
3020 x 1 1/2 3020-1-1/2 A0060692
3020 x 1 1/4 3020-1-1/4 A0060693
3020 x 1 1/8 3020-1-1/8 A0060694
3020 x 1 11/16 3020-1-11/16 A0060695
3020 x 1 15/16 3020-1-15/16 A0060696
3020 x 1 3/4 3020-1-3/4 A0060697
3020 x 1 3/8 3020-1-3/8 A0060698
3020 x 1 5/8 3020-1-5/8 A0060699
3020 x 1 7/16 3020-1-7/16 A0060700
3020 x 1 7/8 3020-1-7/8 A0060701
3020 x 2 3020-2 A0060702
3020 x 2 1/2 3020-2-1/2 A0060703
3020 x 2 1/4 3020-2-1/4 A0060704
3020 x 2 1/8 3020-2-1/8 A0060705
3020 x 2 15/16 3020-2-15/16 A0060706
3020 x 2 3/16 3020-2-3/16 A0060707
3020 x 2 3/4 3020-2-3/4 A0060708
3020 x 2 3/8 3020-2-3/8 A0060709
3020 x 2 5/8 3020-2-5/8 A0060710
3020 x 2 7/16 3020-2-7/16 A0060711
3020 x 2 7/8 3020-2-7/8 A0060712
3020 x 3 3020-3 A0060713
3020 x 2-11/16 3020-2-11/16 A0148725
3030 x 1 1/2 3030-1-1/2 A0060714
3030 x 1 1/4 3030-1-1/4 A0060715
3030 x 1 3/4 3030-1-3/4 A0060716
3030 x 1 3/8 3030-1-3/8 A0060717
3030 x 1 5/8 3030-1-5/8 A0060718
3030 x 1 7/8 3030-1-7/8 A0060719
3030 x 2 3030-2 A0060720
3030 x 2 1/2 3030-2-1/2 A0060721
3030 x 2 1/4 3030-2-1/4 A0060722
3030 x 2 1/8 3030-2-1/8 A0060723
3030 x 2 15/16 3030-2-15/16 A0060724
3030 x 2 3/16 3030-2-3/16 A0060725
3030 x 2 3/4 3030-2-3/4 A0060726
3030 x 2 3/8 3030-2-3/8 A0060727
3030 x 2 5/8 3030-2-5/8 A0060728
3030 x 2 7/16 3030-2-7/16 A0060729
3030 x 2 7/8 3030-2-7/8 A0060730
3030 x 3 3030-3 A0060731
3525 x 1 1/2 3525-1-1/2 A0060732
3525 x 1 1/4 3525-1-1/4 A0060733
3525 x 1 3/4 3525-1-3/4 A0060734
3525 x 1 3/8 3525-1-3/8 A0060735
3525 x 1 5/8 3525-1-5/8 A0060736
3525 x 1 7/8 3525-1-7/8 A0060737
3525 x 2 3525-2 A0060738
3525 x 2 1/2 3525-2-1/2 A0060739
3525 x 2 1/4 3525-2-1/4 A0060740
3525 x 2 1/8 3525-2-1/8 A0060741
3525 x 2 3/4 3525-2-3/4 A0060742
3525 x 2 3/8 3525-2-3/8 A0060743
3525 x 2 5/8 3525-2-5/8 A0060744
3525 x 2 7/16 3525-2-7/16 A0060745
3525 x 2 7/8 3525-2-7/8 A0060746
3525 x 3 3525-3 A0060747
3525 x 3 1/2 3525-3-1/2 A0060748
3525 x 3 1/4 3525-3-1/4 A0060749
3525 x 3 1/8 3525-3-1/8 A0060750
3525 x 3 3/8 3525-3-3/8 A0060751
3535 x 1 1/2 3535-1-1/2 A0060752
3535 x 1 1/4 3535-1-1/4 A0060753
3535 x 1 11/16 3535-1-11/16 A0060754
3535 x 1 3/4 3535-1-3/4 A0060755
3535 x 1 3/8 3535-1-3/8 A0060756
3535 x 1 5/16 3535-1-5/16 A0060757
3535 x 1 5/8 3535-1-5/8 A0060758
3535 x 1 7/8 3535-1-7/8 A0060759
3535 x 2 3535-2 A0060760
3535 x 2 1/2 3535-2-1/2 A0060761
3535 x 2 1/4 3535-2-1/4 A0060762
3535 x 2 1/8 3535-2-1/8 A0060763
3535 x 2 11/16 3535-2-11/16 A0060764
3535 x 2 15/16 3535-2-15/16 A0060765
3535 x 2 3/16 3535-2-3/16 A0060766
3535 x 2 3/4 3535-2-3/4 A0060767
3535 x 2 3/8 3535-2-3/8 A0060768
3535 x 2 5/8 3535-2-5/8 A0060769
3535 x 2 7/8 3535-2-7/8 A0060770
3535 x 3 3535-3 A0060771
3535 x 3 1/2 3535-3-1/2 A0060772
3535 x 3 1/4 3535-3-1/4 A0060773
3535 x 3 1/8 3535-3-1/8 A0060774
3535 x 3 3/8 3535-3-3/8 A0060775
3535 x 2-7/16 3535-2-7/16 A0148726
4030 x 1 3/4 4030-1-3/4 A0060776
4030 x 1 7/8 4030-1-7/8 A0060777
4030 x 2 4030-2 A0060778
4030 x 2 1/2 4030-2-1/2 A0060779
4030 x 2 1/4 4030-2-1/4 A0060780
4030 x 2 1/8 4030-2-1/8 A0060781
4030 x 2 3/4 4030-2-3/4 A0060782
4030 x 2 3/8 4030-2-3/8 A0060783
4030 x 2 5/8 4030-2-5/8 A0060784
4030 x 2 7/8 4030-2-7/8 A0060785
4030 x 3 4030-3 A0060786
4030 x 3 1/2 4030-3-1/2 A0060787
4030 x 3 1/4 4030-3-1/4 A0060788
4030 x 3 1/8 4030-3-1/8 A0060789
4030 x 3 3/4 4030-3-3/4 A0060790
4030 x 3 3/8 4030-3-3/8 A0060791
4030 x 4 4030-4 A0060792
4040 x 1 3/4 4040-1-3/4 A0060793
4040 x 1 7/8 4040-1-7/8 A0060794
4040 x 2 4040-2 A0060795
4040 x 2 1/2 4040-2-1/2 A0060796
4040 x 2 1/4 4040-2-1/4 A0060797
4040 x 2 1/8 4040-2-1/8 A0060798
4040 x 2 3/16 4040-2-3/16 A0060799
4040 x 2 3/4 4040-2-3/4 A0060800
4040 x 2 3/8 4040-2-3/8 A0060801
4040 x 2 5/8 4040-2-5/8 A0060802
4040 x 2 7/8 4040-2-7/8 A0060803
4040 x 3 4040-3 A0060804
4040 x 3 1/2 4040-3-1/2 A0060805
4040 x 3 1/4 4040-3-1/4 A0060806
4040 x 3 1/8 4040-3-1/8 A0060807
4040 x 3 3/4 4040-3-3/4 A0060808
4040 x 3 3/8 4040-3-3/8 A0060809
4040 x 4 4040-4 A0060810
4545 x 2 1/2 4545-2-1/2 A0060811
4545 x 2 1/4 4545-2-1/4 A0060812
4545 x 2 3/4 4545-2-3/4 A0060813
4545 x 2 5/8 4545-2-5/8 A0060814
4545 x 2 7/8 4545-2-7/8 A0060815
4545 x 3 4545-3 A0060816
4545 x 3 1/2 4545-3-1/2 A0060817
4545 x 3 1/4 4545-3-1/4 A0060818
4545 x 3 1/8 4545-3-1/8 A0060819
4545 x 3 3/4 4545-3-3/4 A0060820
4545 x 3 3/8 4545-3-3/8 A0060821
4545 x 4 4545-4 A0060822
4545 x 4 1/2 4545-4-1/2 A0060823
4545 x 4 1/4 4545-4-1/4 A0060824
4545 x 4 1/8 4545-4-1/8 A0060825
5050 x 2 3/4 5050-2-3/4 A0060826
5050 x 3 5050-3 A0060827
5050 x 3 1/2 5050-3-1/2 A0060828
5050 x 3 1/4 5050-3-1/4 A0060829
5050 x 4 5050-4 A0060830
5050 x 4 1/2 5050-4-1/2 A0060831
5050 x 4 1/4 5050-4-1/4 A0060832
5050 x 5 5050-5 A0060833
5050 x 2-1/2 5050-2-1/2 A0148727
Product Highlights −

These imperial taper lock bushes are cast iron, with imperial bores. The range covers 18 series, from 1008 to 5050, and 255 bore sizes from 3/8 to 5".

A taper lock bush fits into a hub with a matching tapered bore, such as a taper lock pulley, sprocket or coupling hub. The bush is split so it clamps onto the shaft when its screws are tightened, and it can be removed and refitted. Choose the bush by series, which must match the series of the hub, and then by bore to suit your shaft.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Taper Lock Bush, Imperial Bore, Cast Iron, Series 1008 to 5050: 1008 x 1

SKU: A0060583 | Model: 1008-1

Finer Power 1008-1: taper Lock Bushes, 1008 x 1. Product: Taper Lock Bush. Series: 1008.

Available options

Aims white logo

Industrial Supplies Made Simple!

About AIMS

Shop

Contact Details

Milperra NSW 2214, Australia
+61297730122
8:00am - 5:00pm, Mon to Fri

© 2026 AIMS Industrial Supplies.

Home Cart Products
Quote Cart
+ Add more products Submit Quote Request
