Mitutoyo 141-102 Inch Inside Micrometer Set 1-2"
Out of stock
The Mitutoyo Series 141 inch inside micrometer measures the diameter of a bore over a wide range by combining interchangeable rods and spacing collars. It suits toolrooms, machinists, fitters and inspectors who measure bores of many sizes from inch drawings. Each rod is marked with its measuring range. It reads to 0.001".
There are three sets: 1 to 2" (2 rods), 2 to 8" (3 rods) and 2 to 12" (5 rods). Graduation is the smallest step you can read on the scale. Accuracy is a separate figure. It is the maximum permissible error, which is the most the reading is allowed to be out. The spindle feed error, the difference between the highest and lowest reading error across the head, as 0.00015".
Where this product is used
- Measuring bore diameters over a wide range with one set of rods
- Inch bore checks in toolrooms and workshops
Features
- Wide measuring range by combining interchangeable rods and spacing collars
- Each rod is marked with its measuring range
- Graduation of 0.001"
- Spindle feed error of 0.00015"
- Rod count of 2, 3 or 5, depending on the set
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mitutoyo |
| Series | 141 |
| Type | Analog inside micrometer, interchangeable rod type |
| Measuring ranges | 1 to 2", 2 to 8" and 2 to 12" |
| Graduation | 0.001" |
| Spindle feed error | 0.00015" |
| Micrometer head stroke | 0.25" (1 to 2") or 0.5" (2 to 8" and 2 to 12") |
| Number of rods | 2, 3 or 5, depending on the range |
Supplied with

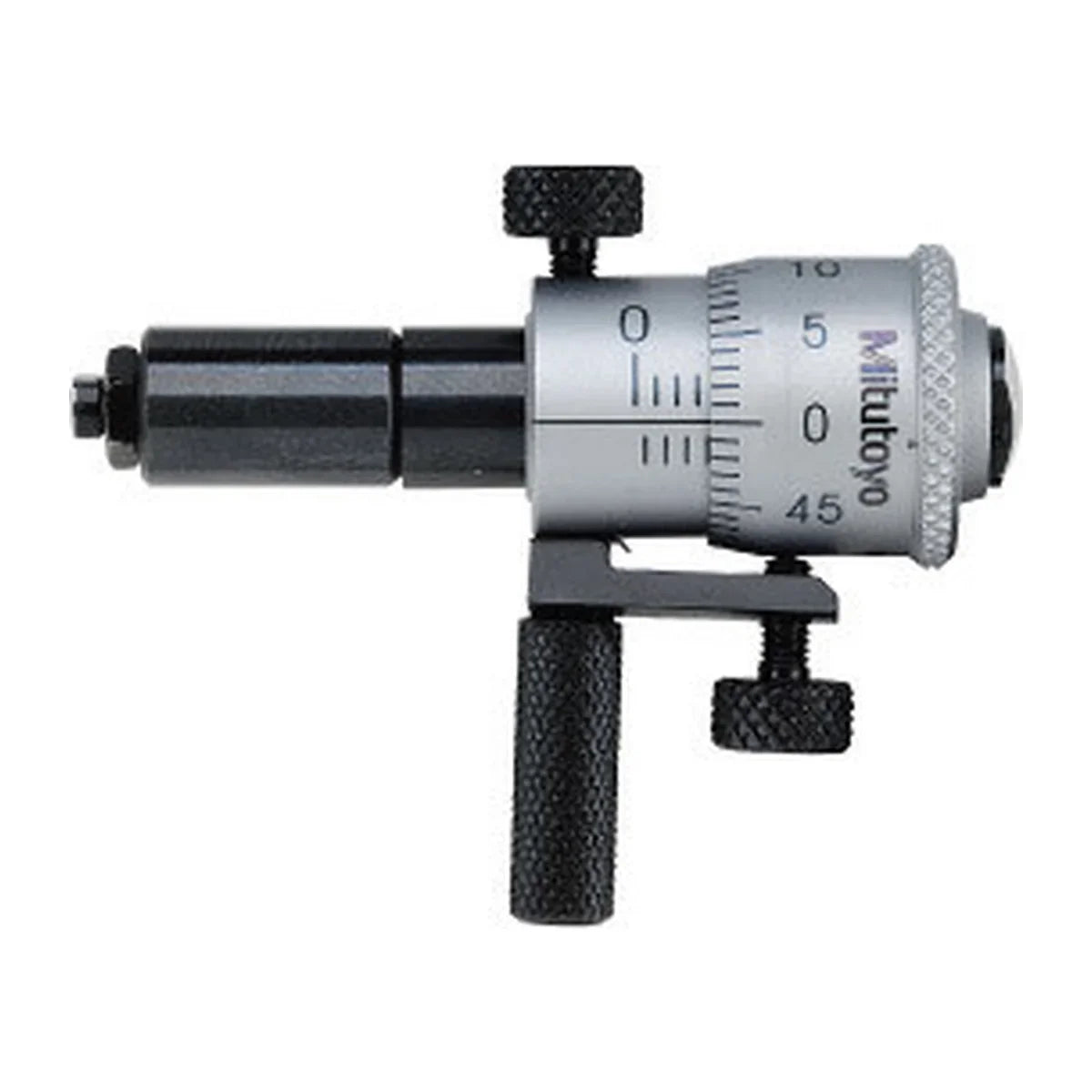

- Micrometer head
- Interchangeable rods and spacing collars
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 1 - 2" | 141-102 | A0211447 |

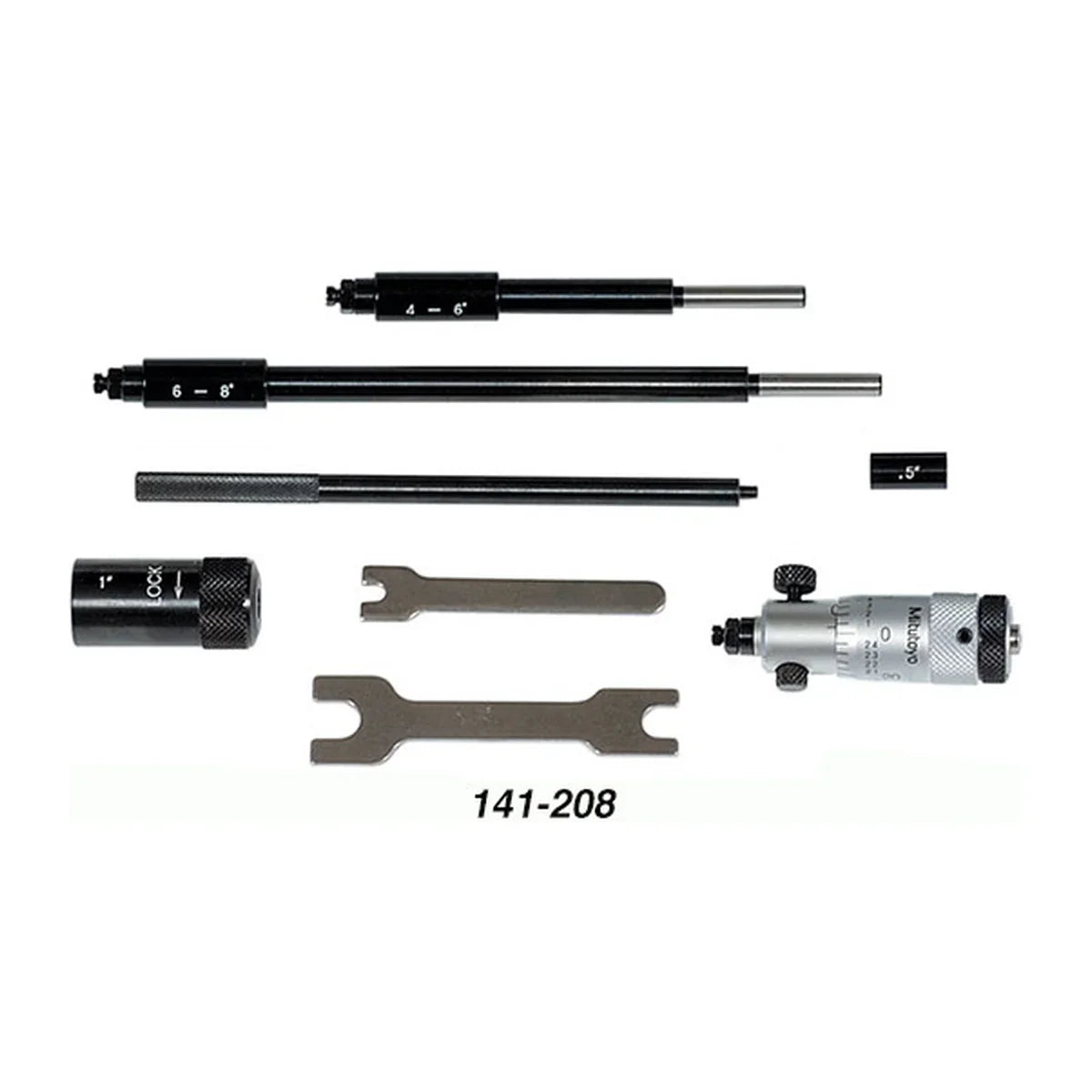

| 2 - 8" | 141-208 | A0211448 |

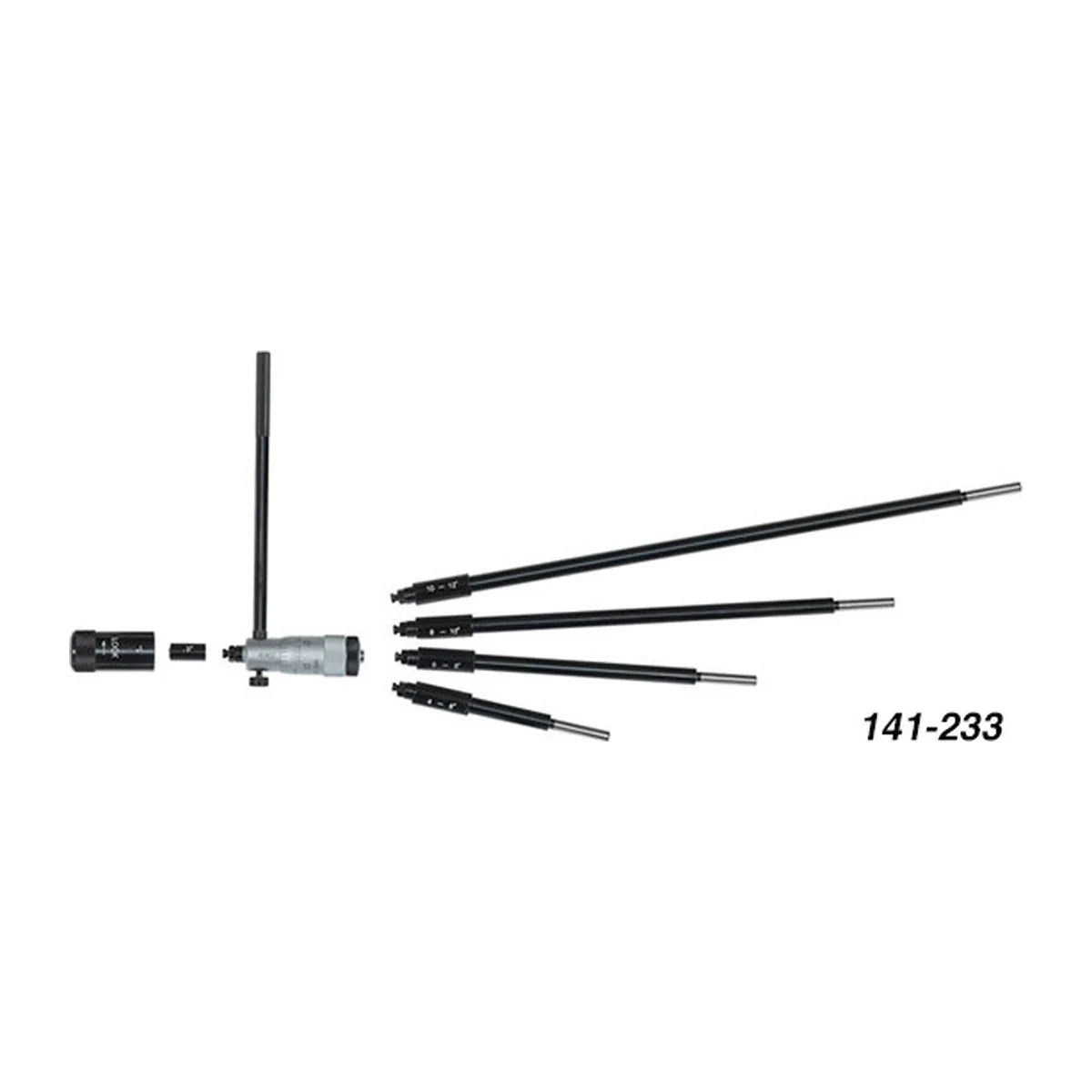

| 2 - 12" | 141-233 | A0211449 |
