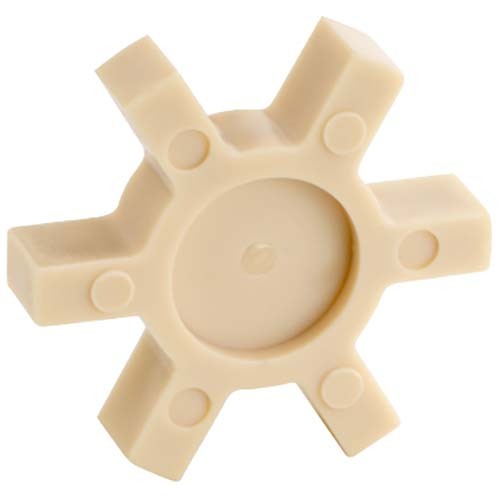

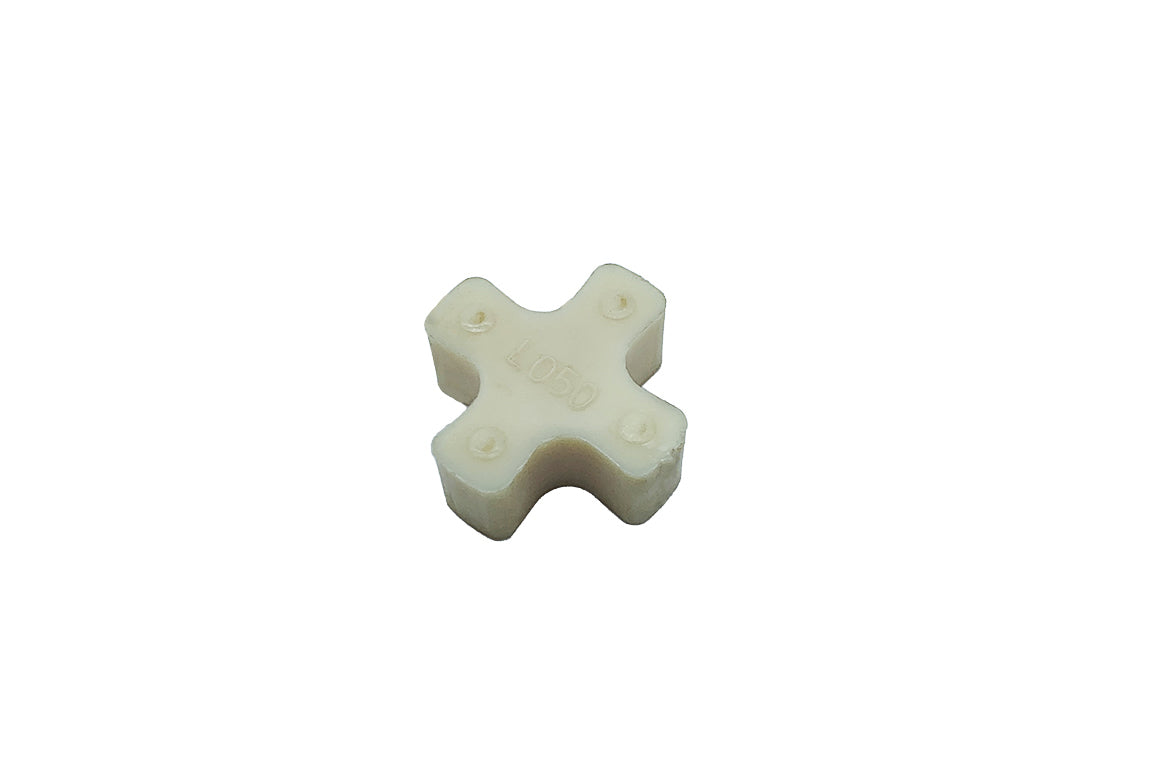

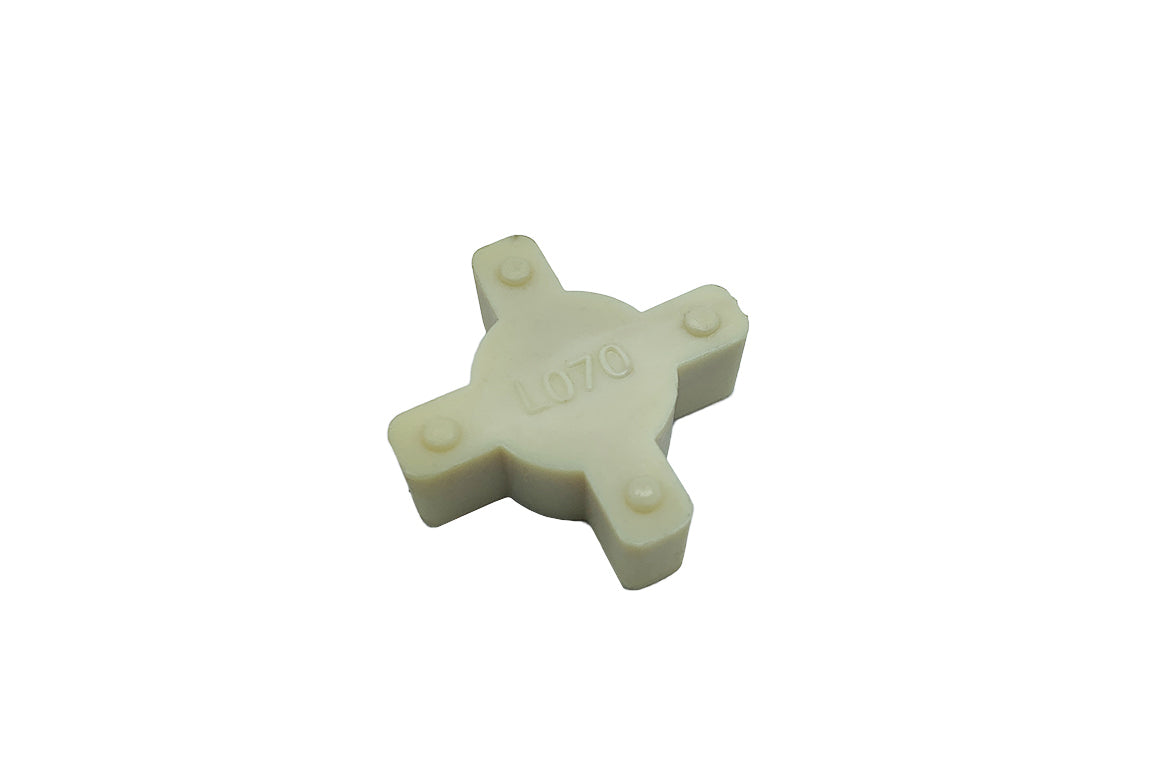

Finer Power jaw Coupling Hytrel Spider Element, L050
Available
Hytrel (a thermoplastic polyester elastomer) spider elements for jaw couplings, in sizes L050 to L190. The jaw coupling is used across a large range of industries. It is highly resilient, it needs no lubrication, and it works in environments contaminated with oil, dirt, sand, moisture and grease. The rubber element sits between the jaws of the two hubs and absorbs shock loading, so there is no metal-to-metal contact.
The spider is the replaceable element between the jaws of the two hubs, and it is the part that wears. Match the spider size to the hub size, for example an L095 spider in L095 hubs.
Where this product is used
- Motor to pump, fan and blower connections
- Gearbox and conveyor drives
- Compressor and general machinery drives
- Drives with shock loading or minor misalignment
- Replacing worn spiders on jaw couplings
Features
- Hytrel spider for L series jaw couplings
- Sizes L050 to L190
- Absorbs shock loading with no metal-to-metal contact
- No lubrication needed
- Fits the pilot bore, bored and keyed, and taper lock hubs of the same size
Key specifications
| Specification | Detail |
|---|---|
| Sizes | L050 to L190 (8 models) |
| Part | Spider element |
| Material | Hytrel (a thermoplastic polyester elastomer) |
| Suits | L series jaw coupling hubs of the same size |
Sizes available
| Size | Suits hubs | Max bore of size (mm) |
|---|---|---|
| L050 | L050 hubs | 15 |
| L070 | L070 hubs | 19 |
| L075 | L075 hubs | 22 |
| L095 | L095 hubs | 29 |
| L100 | L100 hubs | 35 |
| L110 | L110 hubs | 42 |
| L150 | L150 hubs | 48 |
| L190 | L190 hubs | 55 |
Choosing the right option
Choose the spider by hub size, then by material. Spiders of the same size fit the same hubs, so the material can be changed at a service.
Other spider materials are on Jaw Coupling Nitrile Rubber Spider Element and Jaw Coupling Polyurethane Spider Element.
Hubs are on Jaw Coupling Half Pilot Bore, Jaw Coupling - Metric and Jaw Coupling, Bore & Standard Keyway - Imperial.
Isolate the drive before working on the coupling, and replace a cracked or worn spider before the jaws can touch. Align the two shafts as closely as you can before fitting the coupling, and check the alignment again once the coupling is fitted. Good alignment gives the longest life, whatever the coupling type.
| Option | Part number | SKU |
|---|---|---|
| L050 | L050-HYT-SPIDER | A0152846 |
| L070 | L070-HYT-SPIDER | A0152847 |
| L075 | L075-HYT-SPIDER | A0152848 |
| L095 | L095-HYT-SPIDER | A0152849 |
| L100 | L100-HYT-SPIDER | A0152850 |
| L110 | L110-HYT-SPIDER | A0152851 |
| L150 | L150-HYT-SPIDER | A0152852 |
| L190 | L190-HYT-SPIDER | A0152853 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Jaw Coupling Hytrel Spider Element, L050 to L190: L050
SKU: A0152846 | Model: L050-HYT-SPIDER
L050 jaw coupling spider element in Hytrel. Fits L050 jaw coupling hubs.
