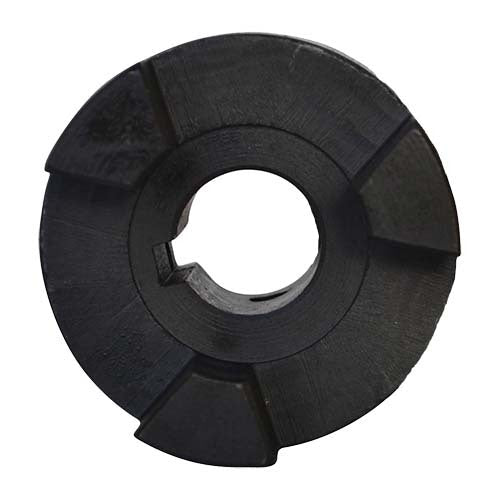

Finer Power jaw Coupling Half, 9mm / L050
Available
These are metric jaw coupling halves, bored and keyed, in L050 to L225. The jaw coupling is used across a large range of industries. It is highly resilient, it needs no lubrication, and it works in environments contaminated with oil, dirt, sand, moisture and grease. The rubber element sits between the jaws of the two hubs and absorbs shock loading, so there is no metal-to-metal contact.
Each half comes bored to the bore you choose, from 9 to 60mm, with a keyway cut, so it is ready to fit.
Where this product is used
- Motor to pump, fan and blower connections
- Gearbox and conveyor drives
- Compressor and general machinery drives
- Drives with shock loading or minor misalignment
Features
- Pre-bored and keyed, no machining before fitting
- 25 metric bore sizes from 9 to 60mm
- Sizes L050 to L225
- Torque and maximum speed for every size
- No lubrication needed, and suits oily and dirty environments
Key specifications
| Specification | Detail |
|---|---|
| Sizes | L050 to L225 |
| Bore sizes | 9 to 60mm (25 sizes) |
| Bore system | Metric |
| Finish | Bored and keyed |
| Torque | 3.51 to 280 Nm |
| Maximum speed | 3,600 to 18,000rpm |
| Maximum bore of size | 15 to 65mm |
| Models | 76 |
Sizes available
| Size | Bores available (mm) | Max bore (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Max rpm | Torque (Nm) |
|---|---|---|---|---|---|---|---|---|
| L050 | 9, 10, 11, 12, 14 | 15 | 27.4 | 43.4 | 12.2 | 15.7 | 18,000 | 3.51 |
| L070 | 10, 11, 12, 14, 16, 18, 19 | 19 | 35 | 53 | 13 | 19 | 14,000 | 5.77 |
| L075 | 12, 14, 15, 16, 18, 19, 20, 22 | 22 | 44.5 | 53 | 13 | 21 | 11,000 | 11.9 |
| L095 | 14, 16, 18, 19, 20, 22, 24, 25, 28 | 29 | 54 | 65 | 13 | 25 | 9,000 | 25.8 |
| L100 | 18, 19, 20, 22, 24, 25, 28, 30, 32, 35, 38 | 35 | 65 | 86 | 19 | 35 | 7,000 | 55.4 |
| L110 | 20, 22, 24, 25, 28, 30, 32, 35, 38, 40, 42 | 42 | 84 | 110 | 24 | 43 | 5,000 | 105 |
| L150 | 24, 25, 28, 30, 32, 35, 38, 40, 42, 45, 48 | 48 | 96 | 113 | 25 | 45 | 4,000 | 150 |
| L190 | 25, 28, 30, 32, 35, 38, 40, 42, 45, 48, 50, 55, 60 | 55 | 115 | 133 | 25 | 50 | 3,600 | 200 |
| L225 | 60 | 65 | 127 | 155 | 25 | 55 | 3,600 | 280 |
Choosing the right option
Choose the size from the torque and the shaft size, apply a service factor for the type of machine, and pick the bore that matches the shaft. Each coupling needs two halves and one spider. Spiders are on Jaw Coupling NBR Spider Element, Jaw Coupling Hytrel Spider Element and Jaw Coupling Polyurethane Spider Element.
Imperial bores are on Jaw Coupling, Bore & Standard Keyway - Imperial. Halves with a pilot bore, for boring to size, are on Jaw Coupling Half Pilot Bore.
Isolate the drive before working on the coupling. Align the two shafts as closely as you can before fitting the coupling, and check the alignment again once the coupling is fitted. Good alignment gives the longest life, whatever the coupling type.
| Option | Part number | SKU |
|---|---|---|
| 9mm / L050 | L050-9 | A0112340 |
| 10mm / L050 | L050-10 | A0112334 |
| 10mm / L070 | L070-10 | A0112323 |
| 11mm / L050 | L050-11 | A0112335 |
| 11mm / L070 | L070-11 | A0112324 |
| 12mm / L050 | L050-12 | A0112336 |
| 12mm / L070 | L070-12 | A0112325 |
| 12mm / L075 | L075-12 | A0112311 |
| 14mm / L050 | L050-14 | A0112337 |
| 14mm / L070 | L070-14 | A0112326 |
| 14mm / L075 | L075-14 | A0112312 |
| 14mm / L095 | L095-14 | A0112295 |
| 15mm / L075 | L075-15 | A0112313 |
| 16mm / L070 | L070-16 | A0112327 |
| 16mm / L075 | L075-16 | A0112314 |
| 16mm / L095 | L095-16 | A0112296 |
| 18mm / L070 | L070-18 | A0112328 |
| 18mm / L075 | L075-18 | A0112315 |
| 18mm / L095 | L095-18 | A0112297 |
| 18mm / L100 | L100-18 | A0112278 |
| 19mm / L070 | L070-19 | A0112329 |
| 19mm / L075 | L075-19 | A0112316 |
| 19mm / L095 | L095-19 | A0112298 |
| 19mm / L100 | L100-19 | A0112279 |
| 20mm / L075 | L075-20 | A0112317 |
| 20mm / L095 | L095-20 | A0112299 |
| 20mm / L100 | L100-20 | A0112280 |
| 20mm / L110 | L110-20 | A0112262 |
| 22mm / L075 | L075-22 | A0112318 |
| 22mm / L095 | L095-22 | A0112300 |
| 22mm / L100 | L100-22 | A0112281 |
| 22mm / L110 | L110-22 | A0112263 |
| 24mm / L095 | L095-24 | A0112301 |
| 24mm / L100 | L100-24 | A0112282 |
| 24mm / L110 | L110-24 | A0112264 |
| 24mm / L150 | L150-24 | A0112246 |
| 25mm / L095 | L095-25 | A0112302 |
| 25mm / L100 | L100-25 | A0112283 |
| 25mm / L110 | L110-25 | A0112265 |
| 25mm / L150 | L150-25 | A0112247 |
| 25mm / L190 | L190-25 | A0112228 |
| 28mm / L095 | L095-28 | A0112303 |
| 28mm / L100 | L100-28 | A0112284 |
| 28mm / L110 | L110-28 | A0112266 |
| 28mm / L150 | L150-28 | A0112248 |
| 28mm / L190 | L190-28 | A0112229 |
| 30mm / L100 | L100-30 | A0112286 |
| 30mm / L110 | L110-30 | A0112268 |
| 30mm / L150 | L150-30 | A0112249 |
| 30mm / L190 | L190-30 | A0112230 |
| 32mm / L100 | L100-32 | A0112287 |
| 32mm / L110 | L110-32 | A0112269 |
| 32mm / L150 | L150-32 | A0112250 |
| 32mm / L190 | L190-32 | A0112231 |
| 35mm / L100 | L100-35 | A0112288 |
| 35mm / L110 | L110-35 | A0112270 |
| 35mm / L150 | L150-35 | A0112251 |
| 35mm / L190 | L190-35 | A0112232 |
| 38mm / L100 | L100-38 | A0112289 |
| 38mm / L110 | L110-38 | A0112271 |
| 38mm / L150 | L150-38 | A0112252 |
| 38mm / L190 | L190-38 | A0112233 |
| 40mm / L110 | L110-40 | A0112272 |
| 40mm / L150 | L150-40 | A0112253 |
| 40mm / L190 | L190-40 | A0112234 |
| 42mm / L110 | L110-42 | A0112273 |
| 42mm / L150 | L150-42 | A0112254 |
| 42mm / L190 | L190-42 | A0112235 |
| 45mm / L150 | L150-45 | A0112255 |
| 45mm / L190 | L190-45 | A0112236 |
| 48mm / L150 | L150-48 | A0112256 |
| 48mm / L190 | L190-48 | A0112237 |
| 50mm / L190 | L190-50 | A0112238 |
| 55mm / L190 | L190-55 | A0112239 |
| 60mm / L190 | L190-60 | A0112240 |
| 60mm / L225 | L225-60 | A0112222 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Jaw Coupling Half, Bored and Keyed, Metric, L050 to L225: 9mm / L050
SKU: A0112340 | Model: L050-9
L050 jaw coupling half, bored to 9mm with a keyway, 3.51 Nm torque, 18,000rpm max.
