M5 Jaw/jaw Open Body Turnbuckle, 316 Stainless Steel - TJJA4M5

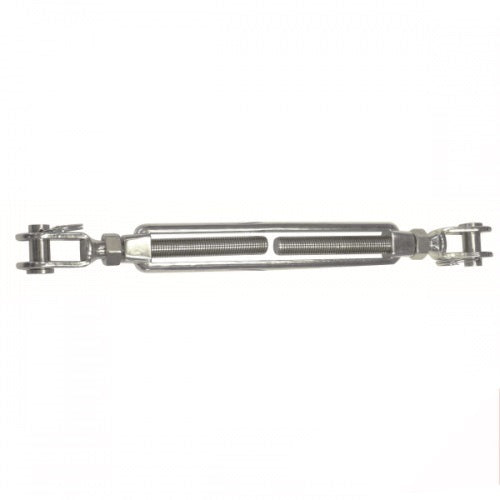

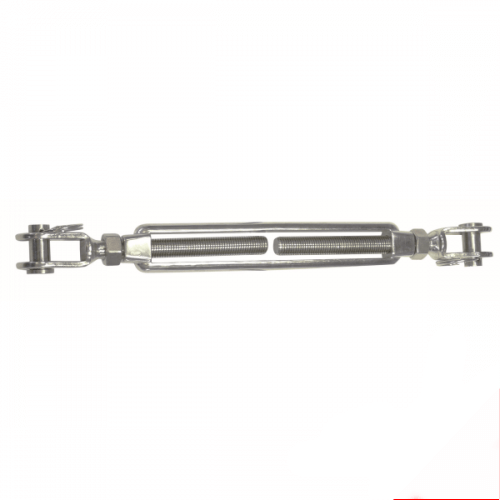

Made in 316 (A4) stainless steel, the Jaw-Jaw Open Body Turnbuckle With Lock Nuts is an adjustable tensioning fitting with a jaw at each end. Turning the open body tightens or loosens the line, and lock nuts hold the setting.

This listing has 5 variants covering sizes M5 to M12. Variants are supplied in packs of 2 to 10, depending on size.

The A4 (316) grade is stainless steel with added molybdenum, which helps it hold up where salt, pool chemicals or washdown chemicals are present. It is the more corrosion-resistant of the two common stainless grades, at a higher cost than 304. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Larger sizes for frames, plant and structural fixings
• Balustrade and wire fencing
• Small sizes for enclosures, instruments and light fittings
• Outdoor fittings exposed to salt air
• Marine rigging, boat and yacht fittings
• Shade sails, awnings and tensioned structures

Features

• Pack quantities to suit trade and bulk buying: packs of 2 to 10
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Range covers M5 to M12 in 5 variants
• Lock nuts hold the setting
• Open body for adjusting line tension
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

Key specifications

Selecting the right option

Choose the turnbuckle by the thread size on the variant, and the end fittings you need to connect. Lubricate the threads with anti-seize and fully engage both ends.

Important

This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
