KCM H-Type ASA Cottered Roller Chain Connecting Link Simplex 80H, 1 in Pitch
Out of stock

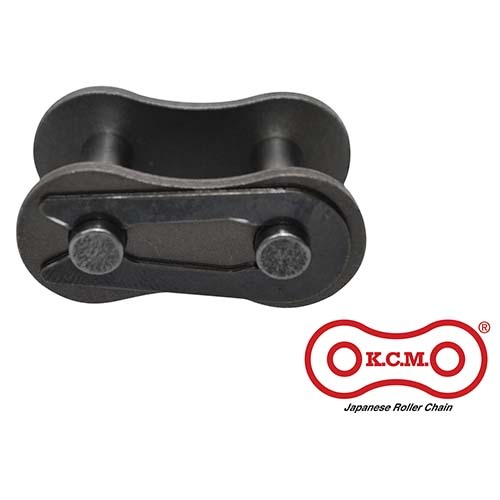

This is the KCM H-Type ASA Cottered Roller Chain Connecting Link Simplex 80H, 1 in Pitch.
KCM connecting links join the ends of a length of ASA H-Type cottered simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series. KCM designed H-type for more strength than ANSI H-type, with thickened link plates and high-strength pins (A0066993).
Where this product is used
- Drives with heavier or fluctuating loads
- Drives where standard chain of the same pitch runs close to its limit
- Crusher, mixer and mill drives
- Presses and heavy conveyors
Features
- Matched to the KCM chain of the same number and series
- Joins the chain ends into a continuous loop
- KCM designed H-type for more strength than ANSI H-type, with thickened link plates and high-strength pins
- Single strand H-type chain runs on KCM standard sprockets
- Pins are longer than standard chain, so check clearances
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Connecting Link (Full Link) |
| Standard | ASA (JIS and ANSI dimensions) |
| Series | H-Type |
| Strands | Simplex |
| Component | Connecting link |
| Construction | Cottered (split pin) |
| Chain sizes | 80H (1) |
| Pitch | 25.4mm (1") |
| Supplied as | Individual links |
Choosing the right option
For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.
Choose H-type where standard chain of the same pitch is too lightly rated. Single strand H-type runs on standard sprockets.
Related KCM products: KCM H-Type ASA Roller Chain Simplex 40H-160H, 10 ft Box, KCM H-Type ASA Roller Chain Simplex 50H, 60H and 80H, 100 ft Box, KCM H-Type ASA Roller Chain Simplex 80H, 1" Pitch, 50 ft Box, KCM H-Type ASA Cottered Roller Chain Offset Link (Half Link) Simplex 60H and 80H.
Product details
| Model | 80H-1COT-CL/KCM |
|---|---|
| Chain Number | 80H |
| Series | H-Type |
| Standard | ASA (ANSI) |
| Strands | Simplex |
| Construction | Cottered (split pin) |
| Component | Connecting link |
| Chain Pitch | 1" |
| Suits Chain | 80H |
| Pitch P (mm) | 25.4 |
| Width Between Inner Plates W (mm) | 15.88 |
| Roller Diameter D (mm) | 15.88 |
| Pin Diameter d (mm) | 7.94 |
| Link Plate Thickness T (mm) | 4 |
| Link Plate Height H (mm) | 23 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM H-Type ASA Cottered Roller Chain Connecting Link Simplex 80H, 1 in Pitch
SKU: A0066993 | Model: 80H-1COT-CL/KCM
KCM A0066993: KCM H-Type ASA Cottered Connecting Link Simplex 80H. Chain Number: 80H. Series: H-Type. Standard: ASA (ANSI).
