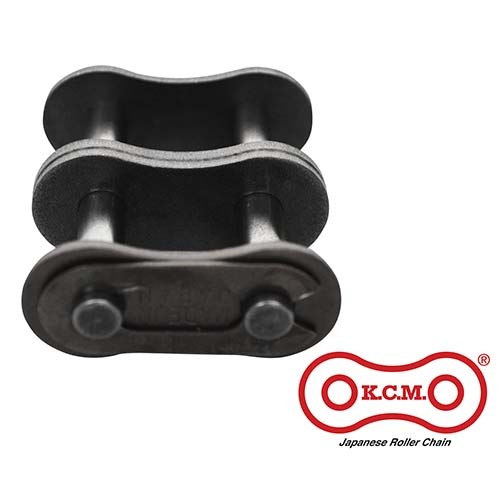

KCM 60H-2 ASA H-Type Roller Chain Connecting Link Duplex, 3/4 in Pitch

KCM connecting links join the ends of a length of ASA H-Type duplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series.

AIMS Industrial supplies these links individually. This listing covers 2 sizes (60H and 80H). KCM designed H-type for more strength than ANSI H-type, with thickened link plates and high-strength pins.

Where this product is used

• Drives with heavier or fluctuating loads
• Drives where standard chain of the same pitch runs close to its limit
• Crusher, mixer and mill drives
• Presses and heavy conveyors

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• KCM designed H-type for more strength than ANSI H-type, with thickened link plates and high-strength pins
• Single strand H-type chain runs on KCM standard sprockets
• Pins are longer than standard chain, so check clearances

Key specifications

Available sizes

Selecting the right option

For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8 in (1/2 in), 60 is 6/8 in (3/4 in), 100 is 10/8 in (1-1/4 in). The figure after the dash is the number of strands.

Choose H-type where standard chain of the same pitch is too lightly rated. Single strand H-type runs on standard sprockets. KCM manufactures multiple-strand H-type separately because its transverse pitch (C) differs from standard chain, so confirm the sprocket before ordering duplex.

Fitting and use

KCM lists clip-type connecting links for sizes 40H to 60H.

KCM says not to replace damaged parts of a chain with new ones. Replace the whole chain, and check the sprockets when changing chain.

Check that a safety cover is fitted before running a chain drive.

Related products

Matching chain: KCM H-Type ASA Roller Chain Duplex 60H and 80H, 10 ft Box. Matching offset links: KCM H-Type ASA Roller Chain Offset Link (Half Link) Duplex 60H and 80H.
