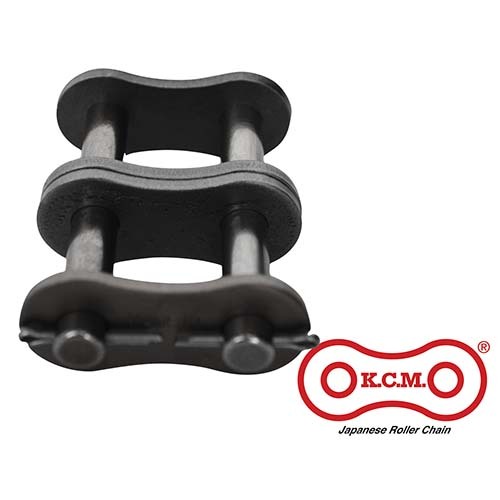

KCM ASA Cottered Roller Chain Connecting Link Duplex 100-160

KCM connecting links join the ends of a length of ASA cottered duplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series.

Where this product is used

• General power transmission drives
• Conveyor and material handling drives
• Agricultural and farm machinery
• Replacing worn or broken chain on existing drives

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• Sizes to JIS and ANSI roller chain dimensions
• Riveted construction, split-pin (cotter) construction is used for sizes 80 and larger
• Connecting links for 25 to 60 are clip type, 80 and larger use split pins

Key specifications

Choosing the right option

For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.

This is KCM standard (carbon steel) chain. Step up to H-type where loads are heavier, or to stainless steel, nickel plated or self-lube chain where the environment or lubrication calls for it.
