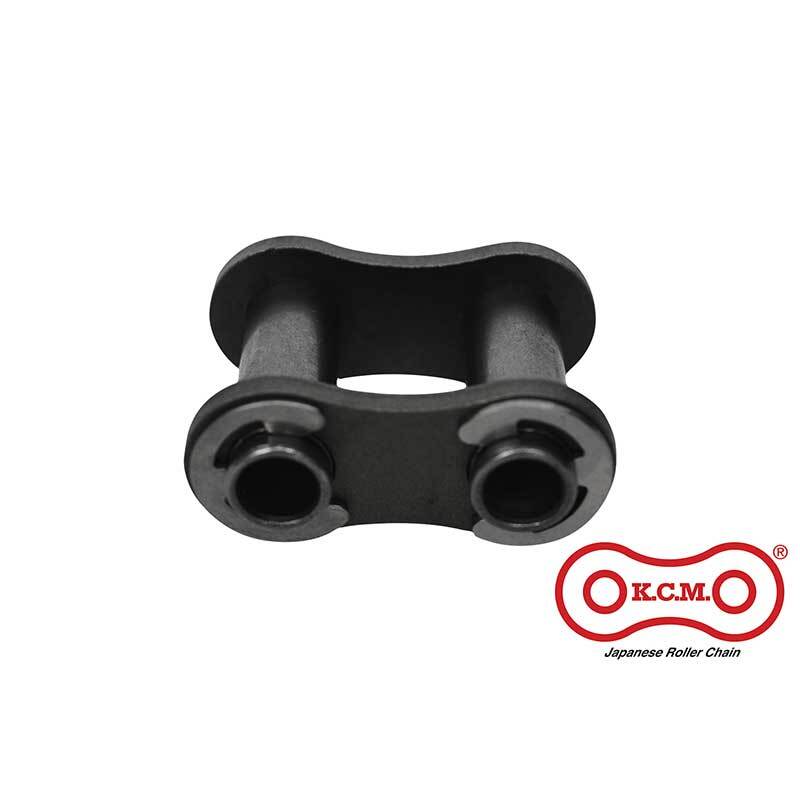

KCM Hollow Pin ASA Connecting Link Simplex 40HP, 40HP
Available
KCM connecting links join the ends of a length of ASA hollow pin simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series. Hollow pins let attachments be fixed easily.
Where this product is used
- Conveyors that carry cross rods or attachments
- Jobs that need a hollow pin to take a bolt or rod
Features
- Matched to the KCM chain of the same number and series
- Joins the chain ends into a continuous loop
- Hollow pins let attachments be fixed easily
- Standard and double pitch sprockets are available
- Stainless steel and surface-treated hollow pin versions are available
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Connecting Link (Full Link) |
| Standard | ASA (JIS and ANSI dimensions) |
| Series | Hollow Pin (HP) |
| Strands | Simplex |
| Component | Connecting link |
| Chain sizes | 40HP, 50HP and 60HP (3) |
| Pitch | 12.7 to 19.05mm |
| Supplied as | Individual links |
Choosing the right option
For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.
Choose hollow pin chain where attachments are fixed through the pin. It is a bushed chain, so check the sprocket and roller type before ordering.
Related KCM products: KCM Hollow Pin ASA Roller Chain Simplex 40HP, 50HP and 60HP, 10 ft Box.
| Option | SKU |
|---|---|
| 40HP | A0067017 |
| 50HP | A0067018 |
| 60HP | A0067019 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM Hollow Pin ASA Roller Chain Connecting Link Simplex 40HP, 50HP and 60HP: 40HP
SKU: A0067017 | Model: 40HP-CL/KCM
KCM 40HP ASA hollow pin simplex roller chain connecting link, 1/2" pitch.
