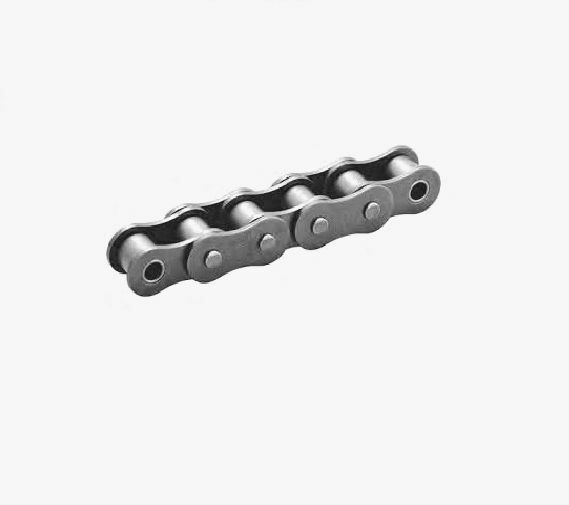

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state of the art manufacturing and quality assurance technology, KCM strives to maintain its world recognized quality products. KCM roller drive chains are used in a broad range of industries for transmission and driving of various equipment.

Technical Data

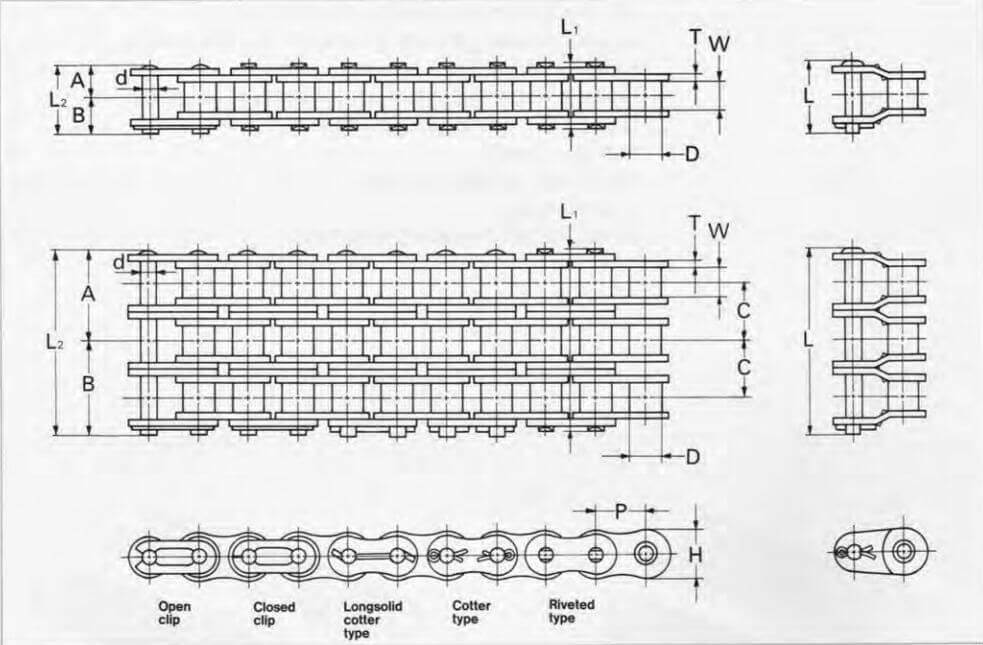

• KCM Chain Number: 100-1
• Pitch (P): 31.75 mm
• Width Between Inner Plates (W): 19.05 mm
• Roller Diameter (D): 19.05 mm
• Pin Diameter d: 9.54 mm
• Pin A: 20°Ckness (T): 4.0 mm
• Link Plate Height (H): 28.9 mm
• JIS Tensile Strength, kN (kgf): 87.0 (8,872 )
• Average Tensile Strength, kN (kgf): 112.8 (11,500 )
• Maximum Allowable Load (kN (kgf): 22.56 (2,300 )
• Approximate Weight:   3.85 kg/m
• Chain Strands: 1 (Simplex)
• Number of Chain Links: 96

Each box contains 10 Foot of Chain and 1 Connecting Link. Additional links may be purchased separately if required.

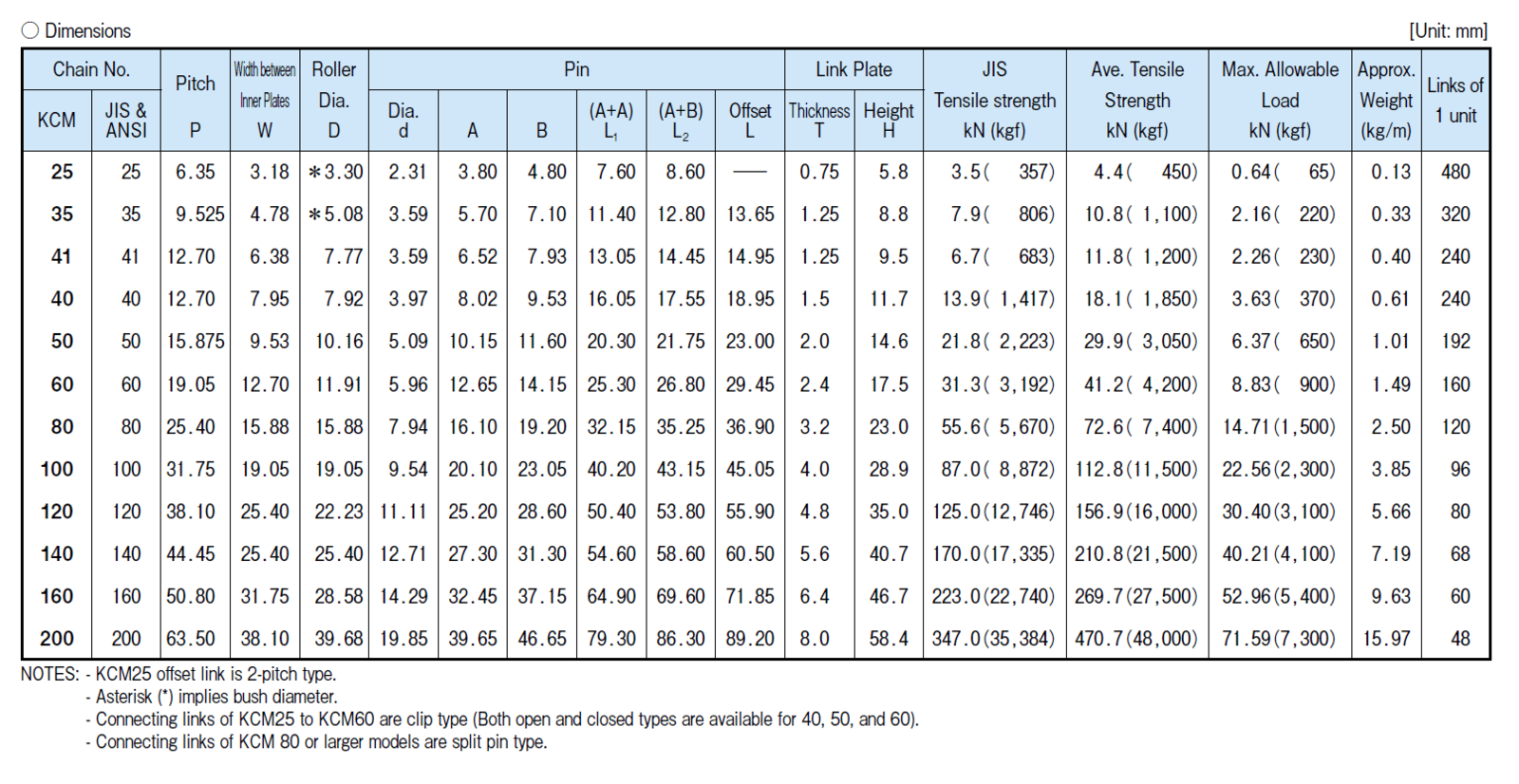

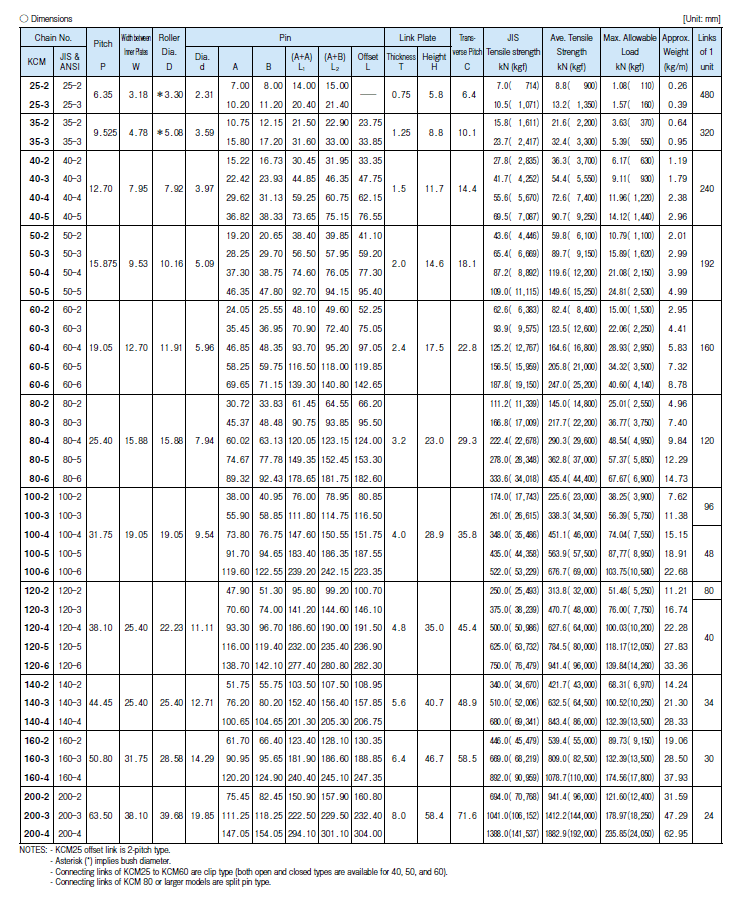

AIMS Industrial Supplies is an authorised roller chain supplier in Australia. If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

Features

• Wide range of roller chain sizes available to suit various applications
• Choose from 3 different strands: Simplex, Duplex or Triplex
• Available in British or American standard
