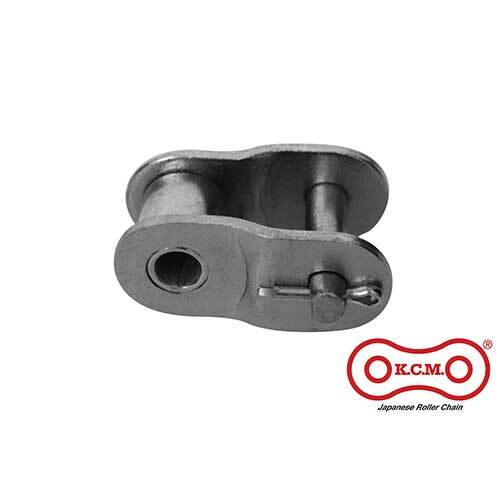

KCM Stainless Steel BS Offset Link Simplex 05BSS-16BSS, 05B
Available
KCM offset links (half links) let a length of BS stainless steel simplex roller chain be made up with an odd number of pitches. Match the link to the KCM chain with the same chain number, strand count and series. Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel.
Where this product is used
- Corrosive environments
- Hot environments and areas that need clean chain
- Wet and washdown areas where carbon steel would corrode
Features
- Matched to the KCM chain of the same number and series
- Lets a chain be made up with an odd number of pitches
- Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel
- Operating range -20 to +400°C
- Slightly magnetic as a result of cold manufacturing
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Offset Link (Half Link) |
| Standard | BS (ISO 606) |
| Series | Stainless Steel (SS) |
| Strands | Simplex |
| Component | Offset link (half link) |
| Material | SUS304 (18Cr-8Ni) stainless steel |
| Chain sizes | 05BSS-16BSS (6) |
| Pitch | 8 to 25.4mm |
| Supplied as | Individual links |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
Choose stainless steel chain where corrosion, heat or cleanliness rules out carbon steel. A strengthened AS stainless chain is also available, with a maximum allowable load 1.5 times that of standard SS.
Related KCM products: KCM Stainless Steel BS Roller Chain Simplex 05BSS-16BSS, 10 ft Box, KCM Stainless Steel BS Roller Chain Connecting Link Simplex 05BSS-16BSS.
| Option | SKU |
|---|---|
| 05B | A0066904 |
| 06B | A0066905 |
| 08B | A0066907 |
| 10B | A0066909 |
| 12B | A0066910 |
| 16B | A0066911 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM Stainless Steel BS Roller Chain Offset Link (Half Link) Simplex 05BSS-16BSS: 05B
SKU: A0066904 | Model: 05B-1SS-OL/KCM
KCM 05BSS BS stainless steel simplex roller chain offset link, 8mm pitch.
