KCM Nickel Plated BS Chain Simplex 08BN, 10B
Available

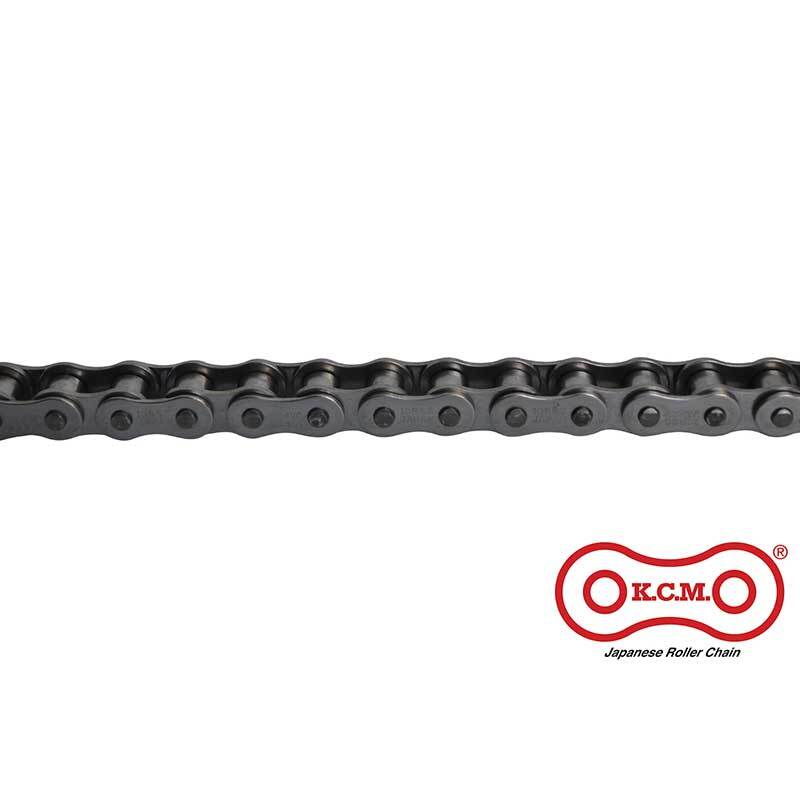

BS nickel plated simplex roller chain from KCM. All parts plated with KCM Rustop special nickel.
Where this product is used
- Applications that need corrosion resistance and a plated finish
- Light-duty drives in damp or mild corrosive areas
- Replacing steel chain where a plated chain is preferred
Features
- All parts plated with KCM Rustop special nickel
- Attractive nickel plated appearance and corrosion resistance
- Maximum allowable load is about 15% lower than standard steel chain
- Operating range -10 to +60°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Roller Chain |
| Standard | BS (ISO 606) |
| Series | Nickel Plated (Rustop N) |
| Strands | Simplex |
| Component | Roller chain |
| Finish | Nickel plated (KCM Rustop N) |
| Chain sizes | 08BN, 10BN and 12BN (3) |
| Pitch | 12.7 to 19.05mm |
| Supplied as | 10 ft (3.05 m) box |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
Choose nickel plated chain where you want corrosion resistance on a standard steel chain design, and the temperature stays between -10 and +60°C. Size it on the nickel plated allowable load, not the steel figure.
Related KCM products: KCM Nickel Plated BS Roller Chain Connecting Link Simplex 08BN, 10BN and 12BN, KCM Nickel Plated BS Roller Chain Offset Link (Half Link) Simplex 06BN-12BN.
| Option | SKU |
|---|---|
| 08B | A0066945 |
| 10B | A0066948 |
| 12B | A0066951 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM Nickel Plated BS Roller Chain Simplex 08BN, 10BN and 12BN, 10 ft Box: 10B
SKU: A0066948 | Model: 10B-1N/KCM
KCM 10BN BS nickel plated simplex roller chain, 5/8" pitch, 10 ft box.
