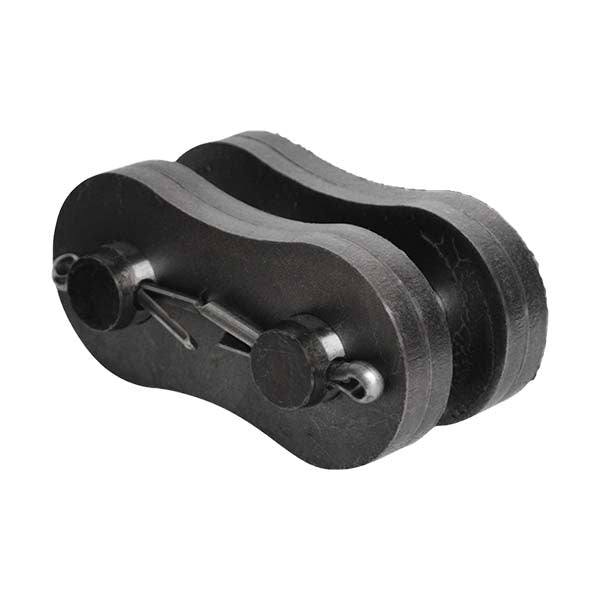

KCM BL Series Leaf Chain Connecting Link BL466-BL1246, BL834
Regular price
$35.53
Sale price
$35.53
Regular price
Inc. GST
Available
KCM connecting links join the ends of a length of leaf chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series (A0067090).
Where this product is used
- Load lifting and balancing
- Mast and counterweight arrangements
Features
- Matched to the KCM chain of the same number and series
- Joins the chain ends into a continuous loop
- BL type is KCM leaf chain for heavy loading
- Use BL type for lifting selection
- Simple construction of plates and pins
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Connecting Link (Full Link) |
| Series | BL Leaf Chain |
| Component | Connecting link |
| Chain sizes | BL466-BL1246 (17) |
| Pitch | 15.875 to 38.1mm |
| Supplied as | Individual links |
Choosing the right option
BL leaf chain is the type for heavy loading and the one to choose when selecting leaf chain. Use roller chain where chain speed is over 30 m/min or daily repetitions exceed 1000.
Related KCM products: KCM BL Series Leaf Chain BL434-BL1246, 10 and 100 ft Boxes.
| Option | SKU |
|---|---|
| BL466 | A0067090 |
| BL523 | A0067091 |
| BL534 | A0067093 |
| BL546 | A0067094 |
| BL566 | A0067095 |
| BL623 | A0067096 |
| BL634 | A0067097 |
| BL644 | A0067098 |
| BL646 | A0067099 |
| BL823 | A0067100 |
| BL834 | A0067101 |
| BL844 | A0067102 |
| BL846 | A0067103 |
| BL866 | A0067104 |
| BL1034 | A0067085 |
| BL1046 | A0067086 |
| BL1246 | A0067088 |
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
KCM BL Series Leaf Chain Connecting Link BL466-BL1246: BL834
SKU: A0067101 | Model: BL834-CL/KCM
KCM BL834 leaf chain connecting link, 1" pitch.
