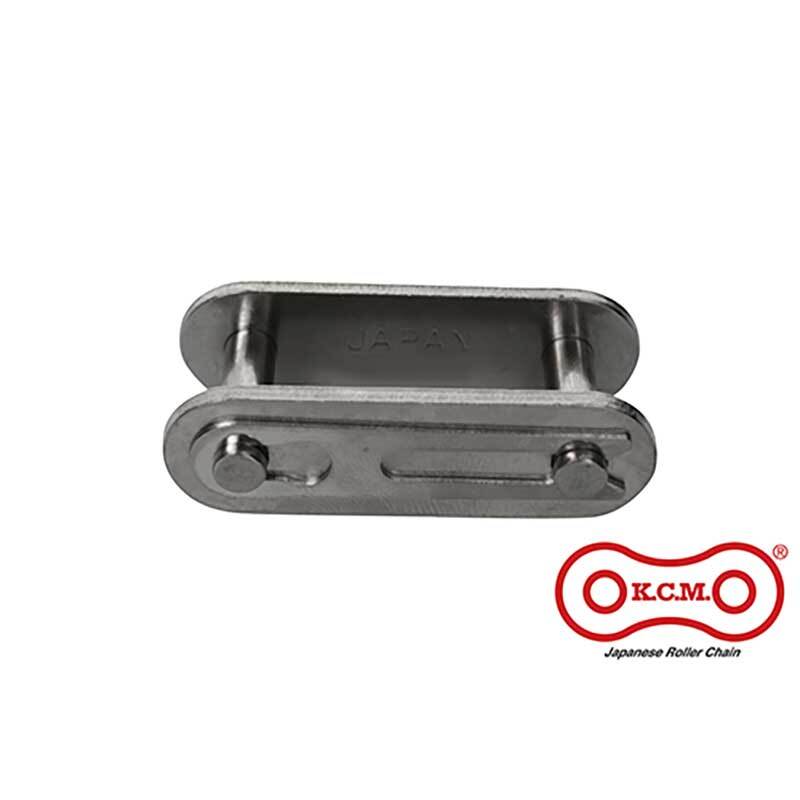

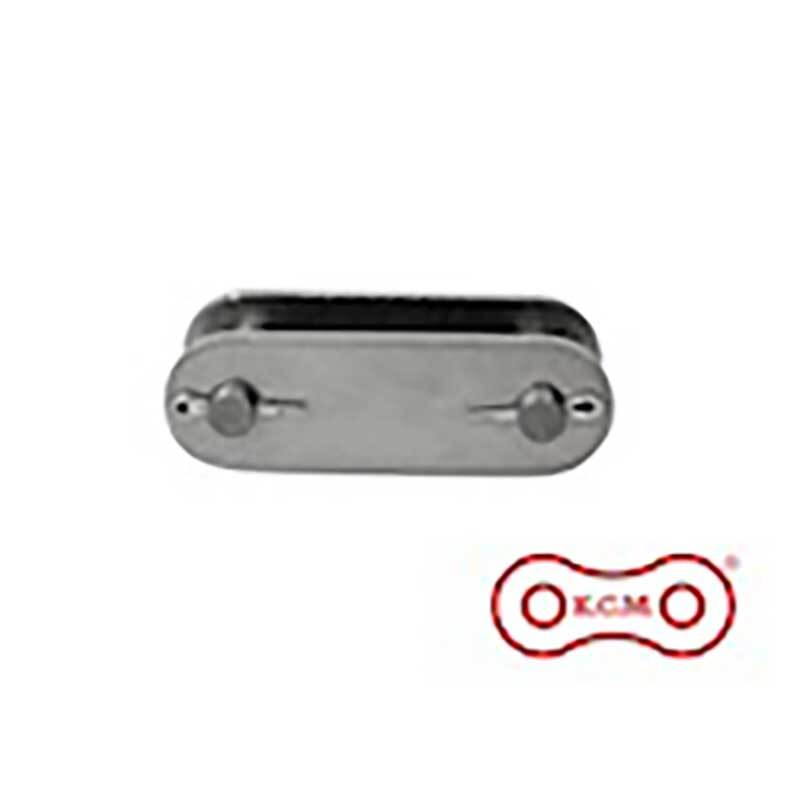

KCM Stainless Steel ASA Double Pitch Connecting Link
Available
KCM connecting links join the ends of a length of ASA double pitch stainless steel roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series. Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel.
Where this product is used
- Corrosive environments
- Hot environments and areas that need clean chain
- Wet and washdown areas where carbon steel would corrode
Features
- Matched to the KCM chain of the same number and series
- Joins the chain ends into a continuous loop
- Made entirely of SUS304 (18Cr-8Ni) austenitic stainless steel
- Operating range -20 to +400°C
- Slightly magnetic as a result of cold manufacturing
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Connecting Link (Full Link) |
| Standard | ASA double pitch |
| Series | Stainless Steel (SS) |
| Component | Connecting link |
| Material | SUS304 (18Cr-8Ni) stainless steel |
| Chain sizes | C2040SS-C2082HSS (8) |
| Pitch | 25.4 to 50.8mm |
| Supplied as | Individual links |
Choosing the right option
Double pitch chain has twice the pitch of the matching standard chain. S-type (chain number ends in 0) and R-type (ends in 2) rollers are available, and R-type chain uses the oversize carrier roller.
Choose stainless steel chain where corrosion, heat or cleanliness rules out carbon steel. A strengthened AS stainless chain is also available, with a maximum allowable load 1.5 times that of standard SS.
Related KCM products: KCM Stainless Steel ASA Double Pitch Roller Chain C2040SS-C2080HSS, 10 ft Box, KCM Stainless Steel ASA Double Pitch Roller Chain Offset Link (Half Link) C2040SS-C2062HSS.
| Option | SKU |
|---|---|
| Double Pitch-C2042SS-CL/KCM / 1 in | A0066875 |
| Double Pitch-C2052SS-CL/KCM / 1-1/4 in | A0066877 |
| Double Pitch-C2062HSS-CL/KCM / 1-1/2 in | A0066879 |
| Double Pitch-C2082HSS-CL/KCM / 2 in | A0066881 |
| Double Pitch / 1 in | A0066874 |
| Double Pitch / 1-1/4 in | A0066876 |
| Double Pitch / 1-1/2 in | A0066878 |
| Double Pitch / 2 in | A0066880 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM Stainless Steel ASA Double Pitch Roller Chain Connecting Link C2040SS-C2082HSS: Double Pitch-C2062HSS-CL/KCM / 1-1/2 in
SKU: A0066879 | Model: C2062HSS-CL/KCM
KCM A0066879: KCM Stainless Steel ASA Double Pitch Connecting Link C2040SS-C2082HSS, Double Pitch-C2062HSS-CL/KCM, 1-1/2". Chain Number: C2062HSS. Series: Stainless Steel (SS). Standard: ASA Double Pitch.
