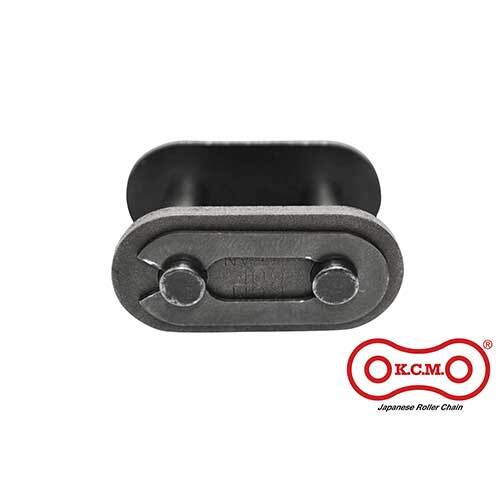

KCM Straight Side Plate ASA Connecting Link Simplex 50F, 80F

KCM connecting links join the ends of a length of ASA straight side plate simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series. Straight contour link plates.

Where this product is used

• Conveyors carrying material directly on the chain
• General power transmission
• Chain that slides along a surface

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• Straight contour link plates
• Suits general power transmission and conveying material placed directly on the chain
• Runs on KCM standard sprockets, reduce the sprocket boss diameter to clear the link plates

Key specifications

Choosing the right option

For ASA chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.

Choose F-type where the chain carries material directly or slides on a surface. Reduce the sprocket boss diameter to avoid interference with the link plates.
