KCM Nickel Plated BS Offset Link Simplex 06BN-12BN, 10B
Available

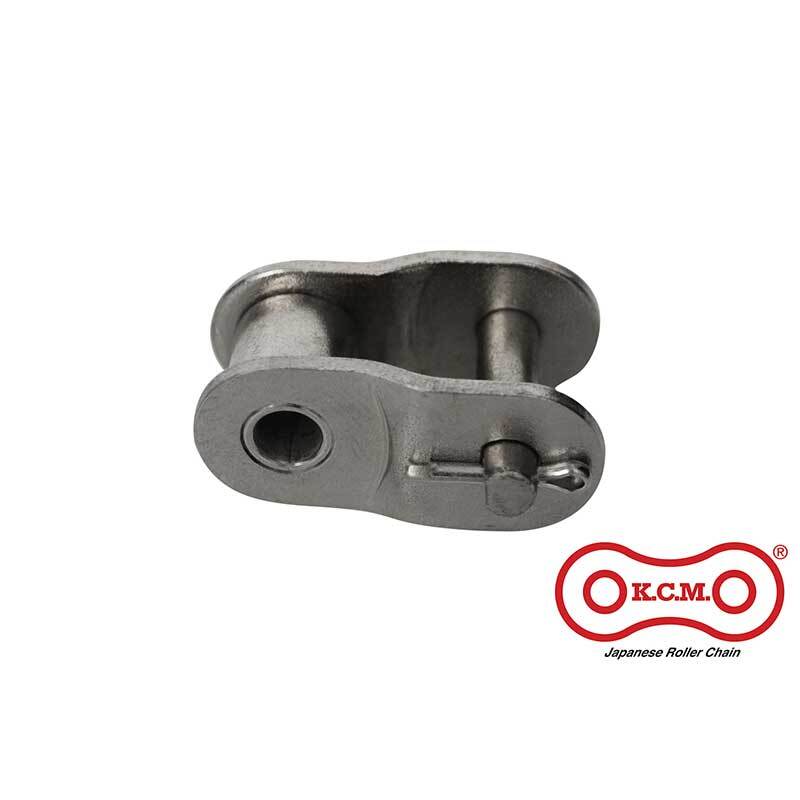

KCM offset links (half links) let a length of BS nickel plated simplex roller chain be made up with an odd number of pitches. Match the link to the KCM chain with the same chain number, strand count and series. All parts plated with KCM Rustop special nickel.
Where this product is used
- Applications that need corrosion resistance and a plated finish
- Light-duty drives in damp or mild corrosive areas
- Replacing steel chain where a plated chain is preferred
Features
- Matched to the KCM chain of the same number and series
- Lets a chain be made up with an odd number of pitches
- All parts plated with KCM Rustop special nickel
- Attractive nickel plated appearance and corrosion resistance
- Maximum allowable load is about 15% lower than standard steel chain
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCM |
| Product type | Offset Link (Half Link) |
| Standard | BS (ISO 606) |
| Series | Nickel Plated (Rustop N) |
| Strands | Simplex |
| Component | Offset link (half link) |
| Finish | Nickel plated (KCM Rustop N) |
| Chain sizes | 06BN-12BN (4) |
| Pitch | 9.525 to 19.05mm |
| Supplied as | Individual links |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
Choose nickel plated chain where you want corrosion resistance on a standard steel chain design, and the temperature stays between -10 and +60°C. Size it on the nickel plated allowable load, not the steel figure.
Related KCM products: KCM Nickel Plated BS Roller Chain Simplex 08BN, 10BN and 12BN, 10 ft Box, KCM Nickel Plated BS Roller Chain Connecting Link Simplex 08BN, 10BN and 12BN.
| Option | SKU |
|---|---|
| 06B | A0066965 |
| 08B | A0066947 |
| 10B | A0066950 |
| 12B | A0066953 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCM Nickel Plated BS Roller Chain Offset Link (Half Link) Simplex 06BN-12BN: 10B
SKU: A0066950 | Model: 10B-1N-OL/KCM
KCM 10BN BS nickel plated simplex roller chain offset link, 5/8" pitch.
