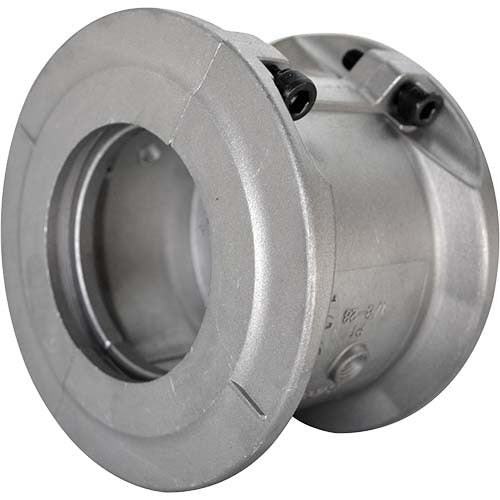

KCP Taper Grid Coupling Horizontal Split Aluminium Cover
Available
This is the Type H cover for the KCP taper grid coupling, a horizontal split aluminium cover, in sizes 1020H to 1150H. It covers the grid and hubs and holds the lubricant in the coupling. The parts of the coupling are the oil seal, cover, hub, grid, gasket, bolt and lube plug.
A complete coupling uses two hubs, one grid and one cover. The cover comes as a horizontal split aluminium cover (Type H) or a vertical split steel cover (Type V).
Where this product is used
- Drives where shock load or vibration needs to be reduced
- Drives with parallel or angular shaft misalignment, or with end float
- Drives that reverse or need a smooth start
- Replacing pin-bush flange or chain couplings
Features
- Accommodates parallel misalignment, angular misalignment and end float
- Torsionally flexible: the grid flexes to take up changing loads, shock and vibration
- A damaged part can be replaced on its own, rather than the whole coupling
- Covered and lubricated: grease goes in through the lube plug of the assembled coupling
- Horizontal split aluminium cover, Type H
Key specifications
| Specification | Detail |
|---|---|
| Brand | KCP |
| Product type | Coupling Cover |
| Type | Taper grid coupling |
| Component | Horizontal split aluminium cover (Type H) |
| Cover type | Type H, horizontal split, aluminium |
| Sizes | 1020H to 1150H (14 sizes) |
| Basic torque | 47.7 to 36,156Nm (486 to 368,686kg-cm), depending on size |
| Maximum speed | 1,500 to 4,500rpm, depending on size |
| Maximum bore | 30mm (size 1020H) to 203mm (size 1150H) |
Fitting and use
Grease the grid and the hub teeth before the covers are fitted, then fill the assembled coupling with grease through the lube plug.
Choosing the right option
To size the coupling, work out the design torque. Use the lowest operating speed of the application.
Choose the size whose basic torque is equal to or above the design torque, then check the shaft diameters against the maximum bore of that size. If the bore is too small, step up to the next size. Check the maximum speed for the size and cover type as well.
See also: taper grid coupling hub, taper grid coupling grid element, vertical split steel cover.
| Option | Part number | SKU |
|---|---|---|
| 1020H | A0148842 | |
| 1030H | A0148843 | |
| 1040H | A0148844 | |
| 1050H | A0148845 | |
| 1060H | A0148846 | |
| 1070H | A0148847 | |
| 1080H | A0148848 | |
| 1090H | A0148849 | |
| 1100H | A0148850 | |
| 1110H | A0148851 | |
| 1120H | A0148852 | |
| 1130H | A0148853 | |
| 1140H | A0148854 | |
| 1150H | A0148855 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
KCP Taper Grid Coupling Horizontal Split Aluminium Cover, Sizes 1020H to 1150H: 1020H
SKU: A0148842 | Model: 1020H-CA
Size 1020H. *** Cover Only **** Horizontal Split Aluminum Cover Taper Grid Coupling Type H cover, horizontal split aluminum cover. Best choice for limited spaces. Allows easy access to the grid spring. Suitable for reversing applications. Lightweight, die-cast aluminum grid cover. About KCP Taper Grid Coupling Taper Grid Couplings are recognizable due to their unique steel flexible grid running through the tapered hubs. The benefits of the Grid Coupling are reduced vibration and shock loads. The compact size of shaft-to-shaft couplings. Handle torque capacity due to high strength hardened alloy steel construction Deflect torsionally for normal shock or vibratory loads. Capacity for misalignment without producing the detrimental side loads. Designed with a trapezoidal cross-section and tempered for spring hardness. Increase in strength rating and provide reserve strength for a longer part life. Easy to fit the trapezoidal grids into the slots of the hub and short time of installation. Free to rock, pivot, and float.
