Precision Imperial Square Key Steel 3/16 x 3/16 in | KS3/16X3/16
Available

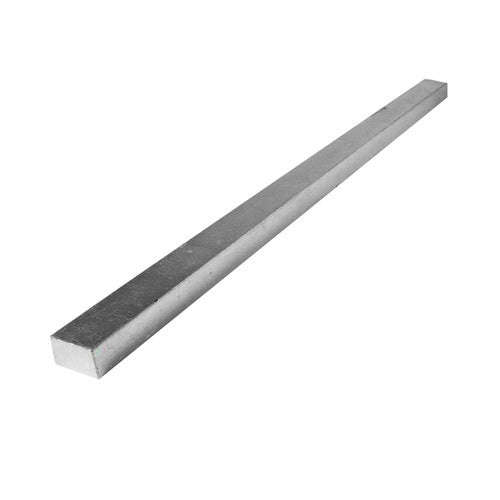

This Precision Brand imperial square key steel comes in 4 sizes and is supplied in 12 in (305 mm) lengths, with the size marked on each piece. The sizes are 3/16 x 3/16, 3/8 x 3/8, 5/8 x 5/8 and 3/4 x 3/4 in.
The key steel is cold drawn low carbon C1018 steel, plated for rust prevention. Most dimension tolerances are oversized, so the key fits tightly in the keyway for positive, zero backlash power transmission. Made in USA (manufacturer-stated).
Where this product is used
- Power transmission, where a key drives a pulley, coupling, propeller or drum from a shaft
- Keyway fitting by manufacturers and fitters
- Die setting
Features
- 4 sizes, from 3/16 x 3/16 to 3/4 x 3/4 in
- 12 in (305 mm) lengths, with the size marked on each piece
- Made from cold drawn low carbon C1018 steel
- Plated for rust prevention
- Most dimension tolerances are oversized for a tight keyway fit and zero backlash power transmission
- Made in USA (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Precision Brand |
| Product | Square key steel |
| Sizes | 4 sizes (imperial) |
| Length | 12 in (305 mm) |
| Material | Cold drawn low carbon C1018 steel |
| Finish | Plated for rust prevention |
| Origin | Made in USA (manufacturer-stated) |
Options and part numbers
| Option | Part number | Shape | Approx. size (mm) | Material |
|---|---|---|---|---|
| 3/16 x 3/16 in | KS3/16X3/16 | Square | 4.8 x 4.8 mm | C1018 low carbon steel |
| 3/8 x 3/8 in | KS3/8X3/8 | Square | 9.5 x 9.5 mm | C1018 low carbon steel |
| 5/8 x 5/8 in | KS5/8X5/8 | Square | 15.9 x 15.9 mm | C1018 low carbon steel |
| 3/4 x 3/4 in | KS3/4X3/4 | Square | 19.1 x 19.1 mm | C1018 low carbon steel |
Selecting the right option
Match the key to the keyway on your shaft and hub, using the size in the options table. Square key steel suits a keyway where the width and height are equal. Imperial and metric keyways are not interchangeable, so check the unit on your shaft. Key steel is supplied in 12 in (305 mm) lengths and is cut to the length you need. If you are unsure of the size, contact AIMS.
