Klingspor rotary burr HF 100, 6mm, 50mm
Available

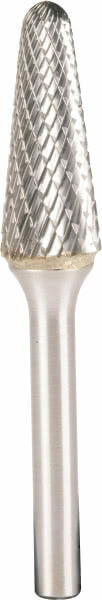

Klingspor Carbide Burr Cone End HF 100 L is a rotary burr from Klingspor. It suits construction steel, NF metals, heat-resistant materials (chromium steel), cast iron and plastics. Available in burr diameter 6mm, 8mm, 9.6mm and 12.7mm; overall length 50mm, 51mm, 70mm, 76mm and 77mm.
Where this product is used
- Deburring
- Grinding contours
- Chamfering and rounding
- Levelling weld seams
- Reshaping workpiece geometry, materials: construction steel, NF metals, heat-resistant steel, cast iron, plastic
Features
- Conical round-nosed head for hard-to-reach places, DIY and professional
- Carbide, geometry and cut aimed at good stock removal and long service life
- Each burr inspected for material quality, dimensional accuracy and solder joint quality
- Use only with clamping systems and drives free of play
- Medium speed range recommended for precision and longer life
Key specifications
| Specification | Detail |
|---|---|
| Brand | Klingspor |
| Product type | Rotary Burr |
| Series | HF 100 L |
| Machines | Flexible shaft grinder, die grinder |
| Shape | Cone, round nose |
| Burr Diameter options | 6mm, 8mm, 9.6mm, 12.7mm |
| Overall Length options | 50mm, 51mm, 70mm, 76mm, 77mm |
Choosing the right option
Related Klingspor products: Klingspor Tungsten Carbide Burr 70 x 100mm 6mm Shaft 5-pc Set 309577, Klingspor Tungsten Carbide Burr 70 x 100mm 6.35mm Shaft 5-pc Set 310743, Klingspor Carbide Burr Cylindrical - Ball End HF 100 C.
| Option | SKU |
|---|---|
| 6 / 50 | A0097545 |
| 6 / 51 | A0097549 |
| 8 / 51-310288 | A0097550 |
| 8 / 70 | A0097546 |
| 9.6 / 70-296201 | A0097547 |
| 9.6 / 76 | A0097551 |
| 12.7 / 76-310285 | A0097552 |
| 12.7 / 77 | A0097548 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Klingspor Carbide Burr Cone End HF 100 L: 6 / 50
SKU: A0097545 | Model: 296200
Klingspor A0097545: klingspor rotary burr HF 100, 6mm, 50mm. Burr Diameter: 6mm. Overall Length: 50mm. Head size (mm): 6 x 18.
