Klingspor rotary burr B00, 6mm, 50mm
Available

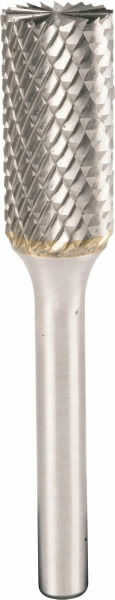

Klingspor Carbide Burr Cylindrical - End Cut HF B00 C is a rotary burr from Klingspor. It suits construction steel, NF metals, heat-resistant alloys, cast iron and stainless steel. Available in burr diameter 6mm, 8mm, 9.6mm and 12.7mm; overall length 50mm, 51mm, 64mm and 70mm.
Where this product is used
- Construction steel
- NF metals
- Highly heat-resistant materials
- Cast iron
- Flexible shaft grinder, die grinder
Features
- Cylindrical burr with end cut, for blind holes and end faces of inner contours
- For finishing, deburring and end-surface grinding
- Several head sizes combinable with different cuts
- Each burr gets 100% final inspection for dimensional accuracy, cut and solder joint quality
- Use medium speed range, larger head diameter = lower speed, too low a speed can cause bouncing or cutting-edge fracture
- Clamp at least 25mm length
Key specifications
| Specification | Detail |
|---|---|
| Brand | Klingspor |
| Product type | Rotary Burr |
| Series | HF 100 B |
| Shape | Cylindrical with end cut |
| Burr Diameter options | 6mm, 8mm, 9.6mm, 12.7mm |
| Overall Length options | 50mm, 51mm, 64mm, 70mm |
Choosing the right option
Related Klingspor products: Klingspor Tungsten Carbide Burr 70 x 100mm 6mm Shaft 5-pc Set 309577, Klingspor Tungsten Carbide Burr 70 x 100mm 6.35mm Shaft 5-pc Set 310743, Klingspor Carbide Burr Cylindrical - Ball End HF 100 C.
| Option | SKU |
|---|---|
| 6 / 50 | A0097513 |
| 6 / 51 | A0097517 |
| 8 / 51-310210 | A0097518 |
| 9.6 / 51-310211 | A0097519 |
| 8 / 64 | A0097514 |
| 9.6 / 64 | A0097515 |
| 12.7 / 64-295610 | A0097516 |
| 12.7 / 70 | A0097520 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Klingspor Carbide Burr Cylindrical - End Cut HF B00 C: 6 / 50
SKU: A0097513 | Model: 295532
Klingspor A0097513: klingspor rotary burr B00, 6mm, 50mm. Burr Diameter: 6mm. Overall Length: 50mm. Head size (mm): 6 x 18.
