Ko-Ken 14145PM-110 extra thin wall impact wheel nut socket

Ko-Ken 14145PM-110 is an extra thin wall impact wheel nut socket with a 1/2" square drive for wheel nut work. Sizes are 17, 19 and 21mm. Length is 110mm.

Where this product is used

• Wheel nuts that sit deep inside the wheel, where the 110mm length gives extra reach
• Aluminium wheel nuts where access to the nut is tight
• Tyre and wheel servicing with an impact wrench

Features

• 1/2" square drive
• 6-point (hexagon) opening
• Extra thin wall design for wheel nut work
• 110mm overall length for nuts recessed deep inside the wheel
• Detachable plastic protector helps prevent damage to the wheel in tight areas

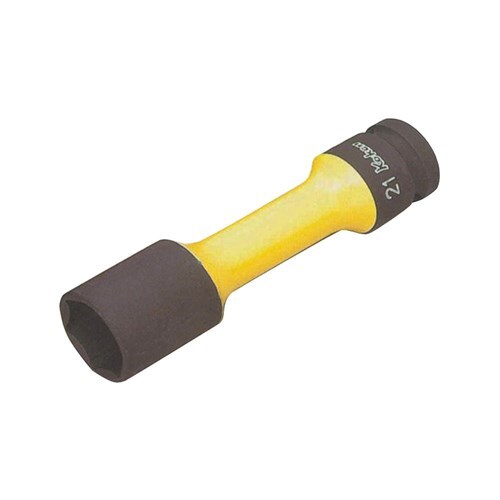

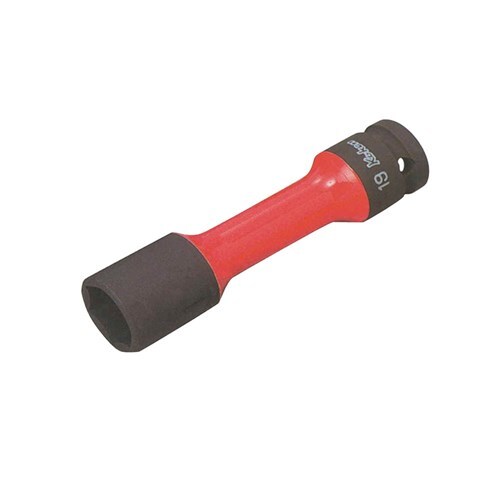

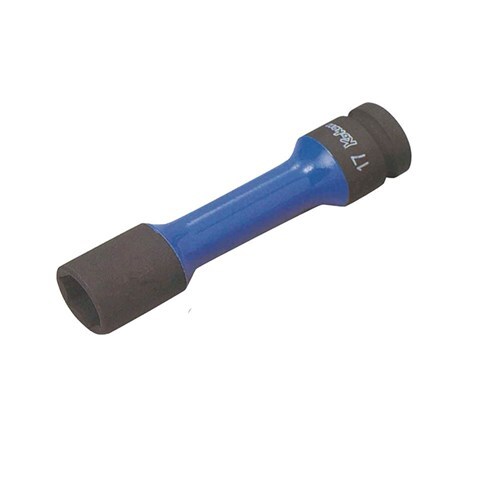

• Colour coded shafts: blue 17mm, red 19mm and yellow 21mm
• Plastic insert helps prevent damage to the wheel nut
• Retaining pin and O-ring or C-ring parts for each size

Key specifications

Choosing the right option

Match the 1/2" square drive to your impact wrench, then choose the size that fits the wheel nut. Dimension labels: D2 and H. Retaining parts for these sockets: pin A41 with O-ring B41 or C-ring C41. The part for each size is shown in its specifications. The thin walled design is only for wheel nut work. The torque rating is limited. Select impact sockets only for electric or air impact wrenches, wear safety goggles when using nut runners or impact wrenches, never substitute a hand socket for an impact socket, and replace sockets with cracked walls, battered points or other marks of wear.
