Ko-Ken 4400MZ Z-series 6-point socket, 8mm
Available

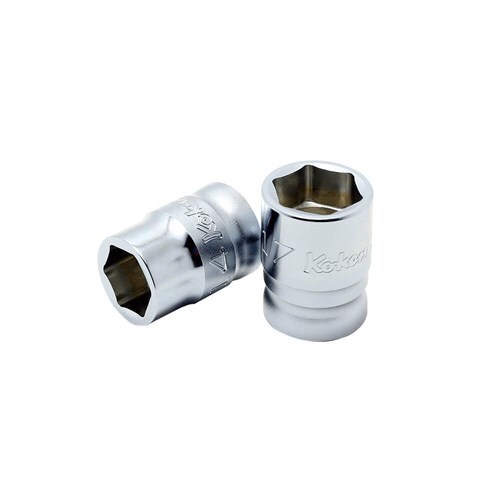

Ko-Ken 4400MZ is a Z-series 6-point socket with a 1/2" square drive. Sizes run from 8 to 32mm. Lengths are 26 to 32mm.
Where this product is used
- Turning metric nuts and bolts with a 1/2" drive ratchet or handle
- Workshop, maintenance and assembly work on exposed fasteners
- General workshop and maintenance fastening
Features
- 1/2" square drive
- 6-point (hexagon) opening
- Size: 8 to 32mm
- Length: 26 to 32mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Socket |
| Drive | 1/2" |
| Opening | 6-point |
| Size | 8 to 32mm |
| Length | 26 to 32mm |
| Weight | 30 to 178 g |
Choosing the right option
Match the 1/2" square drive to your ratchet or handle, then choose the size that fits the fastener. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken 4400M 6-Point Socket, Metric Sizes, 1/2" Drive, Ko-Ken 4300M 6-Point Deep Socket, Metric Sizes, 1/2" Drive, Ko-Ken 4300M L120 6-Point Extra Deep Socket, Metric Sizes, 1/2" Drive, Ko-Ken 4405M 12-Point Socket, Metric Sizes, 1/2" Drive.
| Option | Part number | SKU |
|---|---|---|
| 8 | KO4400MZ08H | A0120356 |
| 10 | KO4400MZ10H | A0120357 |
| 12 | KO4400MZ12H | A0120358 |
| 13 | KO4400MZ13H | A0120359 |
| 14 | KO4400MZ14H | A0120360 |
| 16 | KO4400MZ16H | A0120361 |
| 17 | KO4400MZ17H | A0120362 |
| 18 | KO4400MZ18 | A0190702 |
| 19 | KO4400MZ19H | A0120363 |
| 21 | KO4400MZ21H | A0120364 |
| 22 | KO4400MZ22H | A0120365 |
| 24 | KO4400MZ24H | A0120366 |
| 27 | KO4400MZ27H | A0120367 |
| 30 | KO4400MZ30 | A0120368 |
| 32 | KO4400MZ32 | A0120369 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 4400MZ Z-Series 6-Point Socket, Metric Sizes, 1/2 in Drive: 8
SKU: A0120356 | Model: KO4400MZ08H

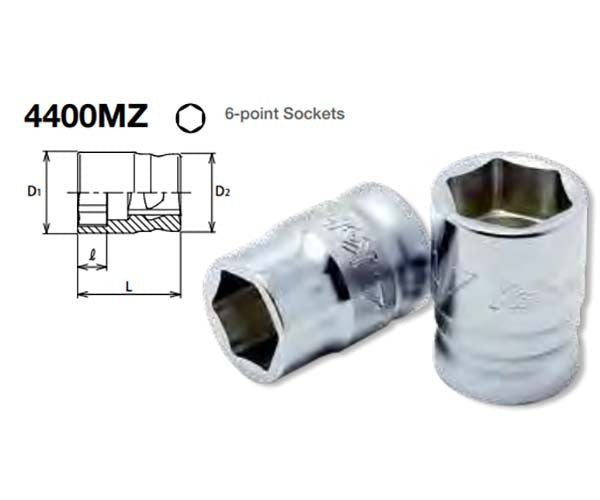

Ko-Ken KO4400MZ08H: Z-series 6-point socket, 8mm. 1/2" drive, 26mm long, 30 g. Dimensions: D1 12.9, D2 20.6, H 4.5mm.
