Ko-Ken 2300A 6-point deep socket, 1/2"
Available
Ko-Ken 2300A is a 6-point deep socket with a 1/4" square drive. Sizes run from 1/8 to 9/16". Length is 50mm.
Where this product is used
- Turning inch nuts and bolts with a 1/4" drive ratchet or handle
- Nuts on long studs and recessed fasteners where a standard socket will not reach
- General workshop and maintenance fastening
Features
- 1/4" square drive
- 6-point (hexagon) opening
- Deep body
- Length: 50mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Socket |
| Drive | 1/4" |
| Opening | 6-point |
| Socket depth | Deep |
| Length | 50mm |
| Weight | 15 to 57 g |
Choosing the right option
Match the 1/4" square drive to your ratchet or handle, then choose the size that fits the fastener. Choose the deep series when a standard socket will not reach the fastener, for example a nut on a long stud. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken 2305A 12-Point Deep Socket, Inch Sizes, 1/4" Drive, Ko-Ken 2400A 6-Point Socket, Inch Sizes, 1/4" Drive, Ko-Ken 2300M 6-Point Deep Socket, Metric Sizes, 1/4" Drive, Ko-Ken 2405A 12-Point Socket, 1/8", 1/4" Drive.
| Option | Part number | SKU |
|---|---|---|
| 1/2 | KO2300A16 | A0119718 |
| 1/4 | KO2300A08 | A0119712 |
| 1/8 | KO2300A04 | A0119708 |
| 3/8 | KO2300A12 | A0119716 |
| 3/16 | KO2300A06 | A0119710 |
| 5/16 | KO2300A10 | A0119714 |

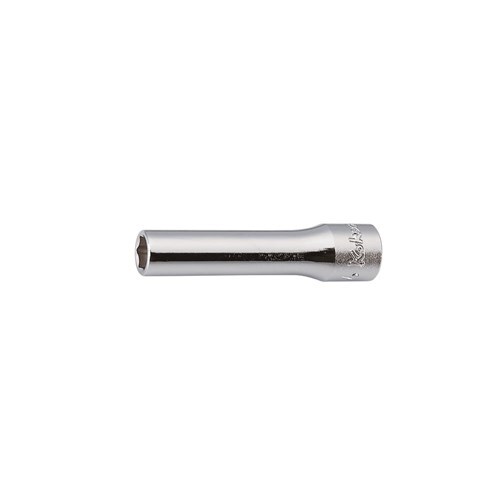

| 5/32 | KO2300A05 | A0119709 |
| 7/16 | KO2300A14 | A0119717 |
| 7/32Af | KO2300A07 | A0119711 |
| 9/16 | KO2300A18 | A0119719 |
| 9/32 | KO2300A09 | A0119713 |
| 11/32 | KO2300A11 | A0119715 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

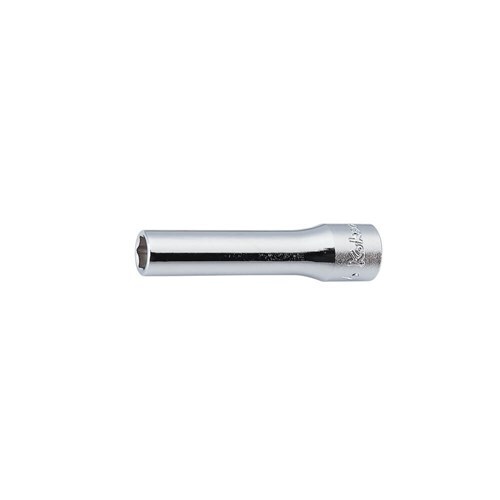

Ko-Ken 2300A 6-Point Deep Socket, Inch Sizes, 1/4 in Drive: 1/2
SKU: A0119718 | Model: KO2300A16
Ko-Ken KO2300A16: 6-point deep socket, 1/2". 1/4" drive, 50mm long, 52 g. Dimensions: D1 18, D2 16.4, H1 14, H2 39mm.
