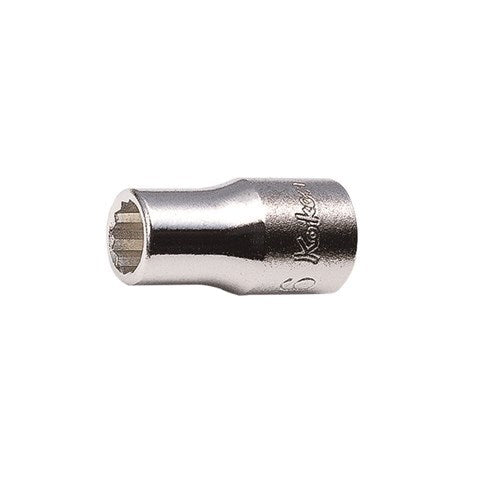

Ko-Ken 2405M 12-point socket, 4mm
Available
Ko-Ken 2405M is a 12-point socket with a 1/4" square drive. Sizes run from 3 to 14mm. Lengths are 22 and 24mm.
Where this product is used
- Turning metric nuts and bolts with a 1/4" drive ratchet or handle
- Workshop, maintenance and assembly work on exposed fasteners
- General workshop and maintenance fastening
Features
- 1/4" square drive
- 12-point (bi-hexagon) opening
- Size: 3 to 14mm
- Length: 22mm, 24mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Socket |
| Drive | 1/4" |
| Opening | 12-point |
| Size | 3 to 14mm |
| Length | 22mm, 24mm |
| Weight | 7 to 30 g |
Choosing the right option
Match the 1/4" square drive to your ratchet or handle, then choose the size that fits the fastener. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken 2415M Double Square Socket, Metric Sizes, 1/4" Drive, Ko-Ken 2400M 6-Point Socket, Metric Sizes, 1/4" Drive, Ko-Ken 2450MS Nut Grip Socket, Metric Sizes, 1/4" Drive, Ko-Ken 2305M 12-Point Deep Socket, Metric Sizes, 1/4" Drive.
| Option | Part number | SKU |
|---|---|---|
| 3 | KO2405M03 | A0119822 |
| 4 | KO2405M04 | A0119823 |
| 4.5 | KO2405M04.5 | A0182630 |
| 5 | KO2405M05 | A0119824 |
| 5.5 | KO2405M05.5 | A0119825 |
| 6 | KO2405M06 | A0119826 |
| 7 | KO2405M07 | A0119827 |
| 8 | KO2405M08 | A0119828 |
| 9 | KO2405M09 | A0119829 |
| 10 | KO2405M10 | A0119830 |
| 11 | KO2405M11 | A0119831 |
| 12 | KO2405M12 | A0119832 |
| 13 | KO2405M13 | A0119833 |
| 14 | KO2405M14 | A0119834 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 2405M 12-Point Socket, Metric Sizes, 1/4 in Drive: 4
SKU: A0119823 | Model: KO2405M04
Ko-Ken KO2405M04: 12-point socket, 4mm. 1/4" drive, 22mm long, 8 g. Dimensions: D1 6.7, D2 11.2, H 3.5mm.
