Ko-Ken 6305A 12-point deep socket, 1-1/2"
Available
Ko-Ken 6305A is a 12-point deep socket with a 3/4" square drive. Sizes run from 3/4 to 2-1/2". Lengths are 90 and 100mm.
Where this product is used
- Turning inch nuts and bolts with a 3/4" drive ratchet or handle
- Nuts on long studs and recessed fasteners where a standard socket will not reach
- General workshop and maintenance fastening
Features
- 3/4" square drive
- 12-point (bi-hexagon) opening
- Deep body
- Length: 90mm, 100mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Socket |
| Length | 90mm, 100mm |
| Weight | 292 to 1,787 g |
Choosing the right option
Match the 3/4" square drive to your ratchet or handle, then choose the size that fits the fastener. Choose the deep series when a standard socket will not reach the fastener, for example a nut on a long stud. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken 6305A 12-Point Deep Socket, 15/16", 3/4" Drive, Ko-Ken 6405A 12-Point Socket, Inch Sizes, 3/4" Drive, Ko-Ken 6305M 12-Point Deep Socket, Metric Sizes, 3/4" Drive, Ko-Ken 6405M 12-Point Socket, Metric Sizes, 3/4" Drive.
| Option | Part number | SKU |
|---|---|---|
| 1 | KO6305A32 | A0181888 |
| 1-1/2 | KO6305A48 | A0120473 |
| 1-1/4 | KO6305A40 | A0120470 |
| 1-1/8 | KO6305A36 | A0120468 |
| 1-1/16 | KO6305A34 | A0120467 |
| 1-3/4 | KO6305A56 | A0181892 |
| 1-3/8 | KO6305A44 | A0120472 |
| 1-3/16 | KO6305A38 | A0120469 |
| 1-5/8 | KO6305A52 | A0181891 |
| 1-5/16 | KO6305A42 | A0120471 |
| 1-7/16 | KO6305A46 | A0181889 |
| 1-9/16 | KO6305A50 | A0181890 |
| 1-11/16 | KO6305A54 | A0120474 |
| 1-13/16 | KO6305A58 | A0181893 |
| 2 | KO6305A64 | A0120475 |
| 2-1/2 | KO6305A80 | A0120476 |
| 2-1/4 | KO6305A72 | A0181897 |
| 2-1/8 | KO6305A68 | A0181895 |
| 2-1/16 | KO6305A66 | A0181894 |
| 2-3/8 | KO6305A76 | A0181899 |
| 2-3/16 | KO6305A70 | A0181896 |
| 2-5/16 | KO6305A74 | A0181898 |
| 2-7/16 | KO6305A78 | A0181900 |
| 3/4 | KO6305A24 | A0181886 |

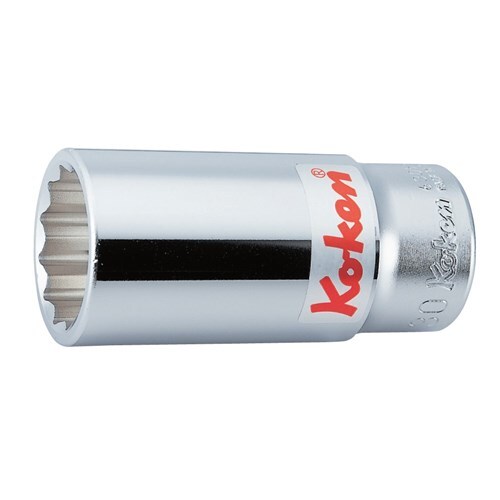

| 7/8 | KO6305A28 | A0181887 |
| 13/16 | KO6305A26 | A0120465 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 6305A 12-Point Deep Socket, Inch Sizes, 3/4 in Drive: 1-1/2
SKU: A0120473 | Model: KO6305A48
Ko-Ken KO6305A48: 12-point deep socket, 1-1/2". 3/4" drive, 90mm long, 710 g. Dimensions: D1 52, D2 45, H1 39, H2 60mm.
