Ko-Ken 3305M 12-point deep socket, 6mm
Available
Ko-Ken 3305M is a 12-point deep socket with a 3/8" square drive. Sizes run from 6 to 27mm. Lengths are 55 and 65mm.
Where this product is used
- Turning metric nuts and bolts with a 3/8" drive ratchet or handle
- Nuts on long studs and recessed fasteners where a standard socket will not reach
- General workshop and maintenance fastening
Features
- 3/8" square drive
- 12-point (bi-hexagon) opening
- Deep body
- Size: 6 to 27mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Socket |
| Drive | 3/8" |
| Opening | 12-point |
| Socket depth | Deep |
| Size | 6 to 27mm |
| Length | 55mm, 65mm |
| Weight | 37 to 218 g |
Choosing the right option
Match the 3/8" square drive to your ratchet or handle, then choose the size that fits the fastener. Choose the deep series when a standard socket will not reach the fastener, for example a nut on a long stud. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken 3300M 6-Point Deep Socket, Metric Sizes, 3/8" Drive, Ko-Ken 3350M Nut Grip Deep Socket, Metric Sizes, 3/8" Drive, Ko-Ken 3405M 12-Point Socket, Metric Sizes, 3/8" Drive, Ko-Ken 3305A 12-Point Deep Socket, Inch Sizes, 3/8" Drive.
| Option | Part number | SKU |
|---|---|---|
| 6 | KO3305M06 | A0120026 |
| 7 | KO3305M07 | A0120027 |
| 8 | KO3305M08 | A0120028 |

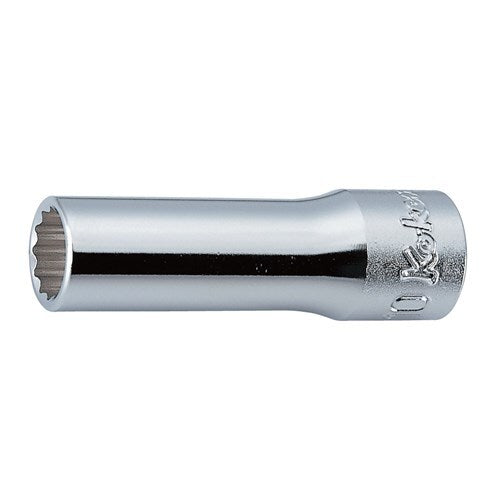

| 9 | KO3305M09 | A0120029 |
| 10 | KO3305M10 | A0120030 |
| 11 | KO3305M11 | A0120031 |
| 12 | KO3305M12 | A0120032 |
| 13 | KO3305M13 | A0120033 |
| 14 | KO3305M14 | A0120034 |
| 15 | KO3305M15 | A0120035 |
| 16 | KO3305M16 | A0120036 |
| 17 | KO3305M17 | A0120037 |
| 18 | KO3305M18 | A0120038 |
| 19 | KO3305M19 | A0120039 |
| 21 | KO3305M21 | A0120040 |
| 22 | KO3305M22 | A0120041 |
| 23 | KO3305M23 | A0120042 |
| 24 | KO3305M24 | A0120043 |
| 25 | KO3305M25 | A0120044 |
| 26 | KO3305M26 | A0120045 |

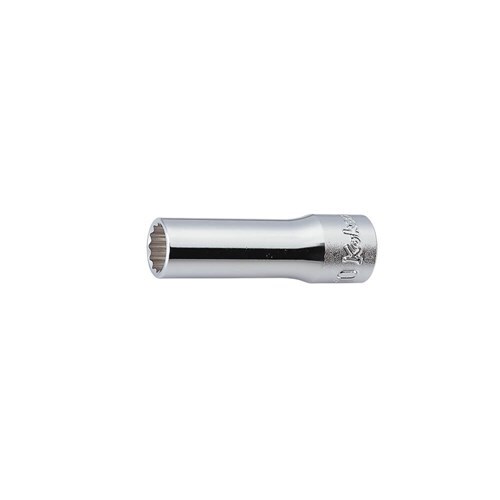

| 27 | KO3305M27 | A0120046 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 3305M 12-Point Deep Socket, Metric Sizes, 3/8 in Drive: 6
SKU: A0120026 | Model: KO3305M06
Ko-Ken KO3305M06: 12-point deep socket, 6mm. 3/8" drive, 55mm long, 37 g. Dimensions: D1 9.9, D2 17.3, H1 7, H2 41.5mm.
