Ko-Ken 3012M-75 inhex socket, 4mm
Available

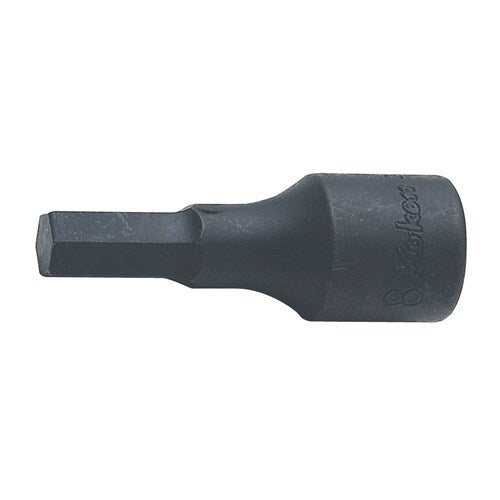

Ko-Ken 3012M-75 is an inhex socket with a 3/8" square drive. Do not use with a power or impact wrench.". Hex sizes run from 4 to 10mm. Overall length is 75mm.
Where this product is used
- Driving inhex (hex socket) screws with a 3/8" drive ratchet or handle
- Machinery and equipment maintenance where hex socket fasteners are used
- Workshop and maintenance work
Features
- 3/8" square drive
- Inhex (internal hex) bit socket
- 75mm overall length
- Hex size: 4 to 10mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Inhex Socket |
| Drive | 3/8" |
| Length | 75mm |
| Hex size | 4 to 10mm |
| Weight | 43 to 114 g |
Choosing the right option
Match the 3/8" square drive to your ratchet or handle, then choose the hex size that fits the fastener. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken RS3012M/8-L52 Inhex Socket Set on Rail, 3 to 12mm, 8 Pieces, 3/8" Drive, Ko-Ken RS3010M/8 Inhex Socket Set on Rail, L38, L62 and L100, 8 Pieces, 3/8" Drive, Ko-Ken 3010M Inhex Bit Socket, 3 to 12mm, 38 and 100mm Long, 3/8" Drive, Ko-Ken 3010MZ-50 Inhex Bit Socket, 3 to 12mm, 50mm Long, 3/8" Drive.
| Option | Part number | SKU |
|---|---|---|
| 4 | KO3012M7504 | A0119894 |
| 5 | KO3012M7505 | A0119895 |
| 6 | KO3012M7506 | A0119896 |
| 8 | KO3012M7508 | A0119897 |
| 10 | KO3012M7510 | A0190708 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 3012M-75 Inhex Socket, 4 to 10 mm, 75 mm Long, 3/8 in Drive: 4
SKU: A0119894 | Model: KO3012M7504

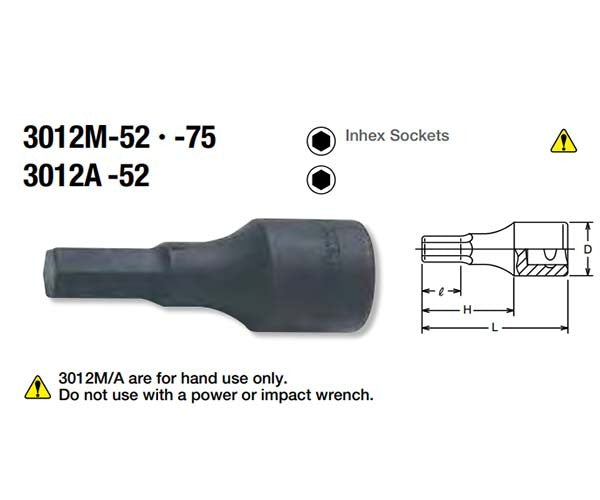

Ko-Ken KO3012M7504: inhex socket, 4mm. 3/8" drive, 75mm long, 43 g. Dimensions: D 18, H1 15.5, H2 57mm.
