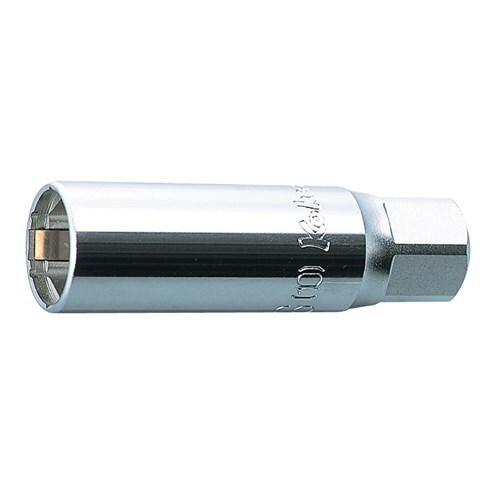

Ko-Ken 3300C spark plug socket with spring clips, 14mm
Available
Ko-Ken 3300C is a spark plug socket with spring clips and a 3/8" square drive. Sizes are 14, 16, 18 and 20.8mm. Length is 70mm.
Where this product is used
- Removing and fitting spark plugs, where the spring clips grip the plug at its hexagon
- Engine servicing in the workshop
- Maintenance on petrol engines
Features
- 3/8" square drive
- Two stainless spring clips grip the spark plug at its hexagon
- Internal brass guide holds the clips in place and keeps the plug aligned with the threaded hole in the cylinder head
- Length: 70mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Socket |
| Drive | 3/8" |
| Length | 70mm |
| Size | 14 to 20.8mm |
| Weight | 82 to 140 g |
Choosing the right option
Match the 3/8" square drive to your ratchet or handle, then choose the size that matches your spark plug hex. Spring clip type spark plug sockets can deform the clip if used with shallow engagement.
Related Ko-Ken products: Ko-Ken 3300S Spark Plug Socket with Rubber Insert, Metric Sizes, 3/8" Drive, Ko-Ken 3305P Spark Plug Socket with Magnet, Metric Sizes, 3/8" Drive, Ko-Ken 3300CZ Z-Series Spark Plug Socket with Spring Clips, Metric Sizes, 3/8" Drive, Ko-Ken 4300C Spark Plug Socket with Spring Clips, Metric Sizes, 1/2" Drive.
| Option | Part number | SKU |
|---|---|---|
| 14mm | KO3300C14 | A0119952 |
| 16mm | KO3300C16 | A0119953 |
| 18mm | KO3300C18 | A0119954 |
| 20mm | KO3300C20.8 | A0119955 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 3300C Spark Plug Socket with Spring Clips, Metric Sizes, 3/8 in Drive: 14mm
SKU: A0119952 | Model: KO3300C14
Ko-Ken KO3300C14: spark plug socket with spring clips, 14mm, 3/8" drive. 70mm long, 82 g. Dimensions: H1 11, H2 17, D 19mm.
