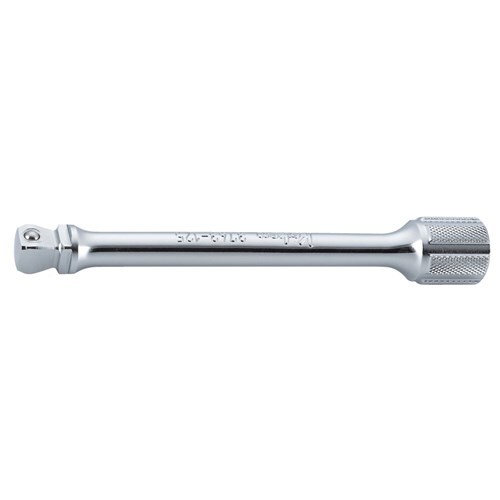

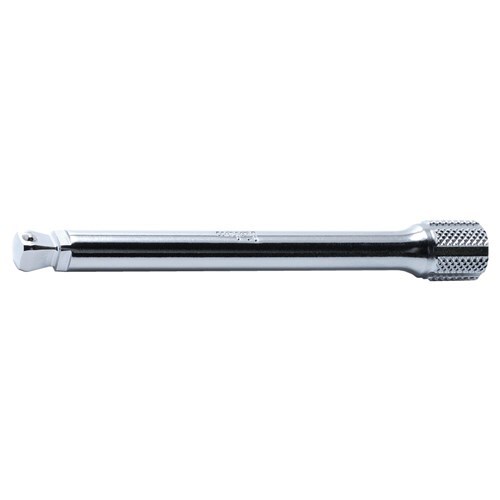

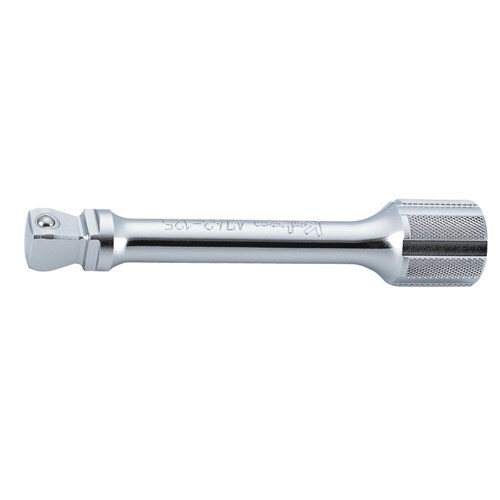

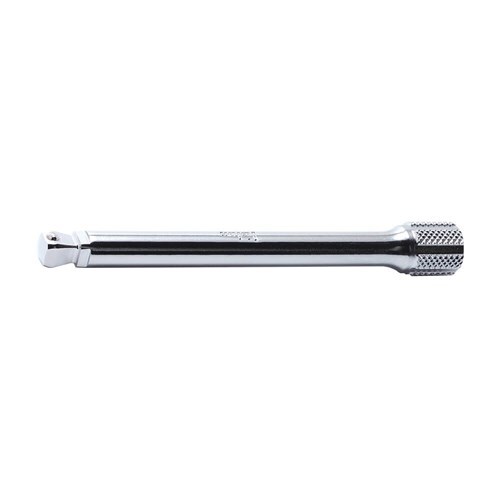

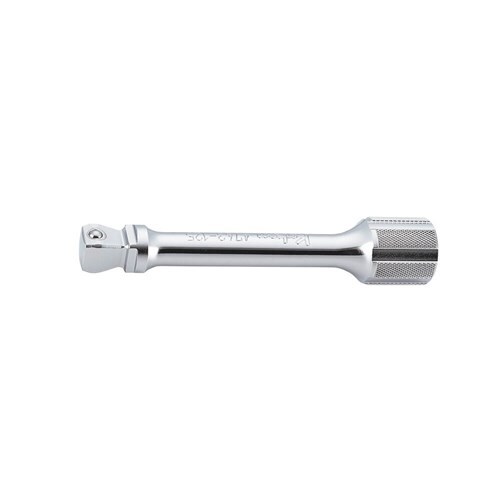

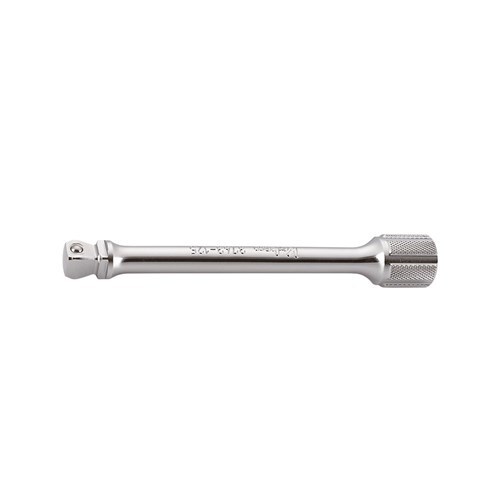

Ko-Ken 2763, 28mm long, 1/4"
Available
Ko-Ken 2763, 3763 and 4763 are Wobble-Fix extension bars with square drives of 1/4", 3/8" and 1/2". Lengths are 28 to 400mm.
Where this product is used
- Reaching fasteners recessed below the surface beyond the depth of a socket
- Providing clearance between the drive handle and nearby obstructions
- Extending square drive sockets in engine bays, machinery and assemblies
Features
- Square drives: 1/4", 3/8" and 1/2"
- Wobble-Fix: works as a flexible extension bar giving 15° angle operation, or as a normal extension bar (patented)
- 6-point knurling on the outside of the female square drive gives a grip for the fingers and stops the bar rolling on flat surfaces
- Drive: 1/4", 3/8", 1/2"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Extension Bar |
| Drive | 1/4", 3/8", 1/2" |
| Length | 28 to 400mm |
| Dimension D | 12.3 to 24mm |
| Weight | 14 to 650 g |
Choosing the right option
Match the square drive to your sockets and handle, and choose the length for the reach you need. Using several short extensions in place of one correctly sized bar should be avoided. The Wobble-Fix extension bar has less strength than a normal extension bar because of its specific design with a reduced square drive, so use it correctly. Select impact sockets only for electric or air impact wrenches and do not substitute hand sockets for impact sockets.
Related Ko-Ken products: Ko-Ken PK4763/5 Wobble-Fix Extension Bar Set, 5 Pieces, 1/2" Drive, Ko-Ken PK2763/6 Wobble-Fix Extension Bar Set, 6 Pieces, 1/4" Drive, Ko-Ken PK3763/6 Wobble-Fix Extension Bar Set, 6 Pieces, 3/8" Drive, Ko-Ken 2760Z, 3760Z and 4760Z Z-Series Extension Bar, 1/4, 3/8 and 1/2" Drive.
| Option | Part number | SKU |
|---|---|---|
| 28 / 1/4" | KO2763028 | A0177295 |
| 32 / 3/8" | KO3763032 | A0177301 |
| 50 / 1/2" | KO4763050 | A0177307 |
| 50 / 1/4" | KO2763050 | A0177296 |
| 50 / 3/8" | KO3763050 | A0177302 |
| 75 / 1/2" | KO4763075 | A0177308 |
| 75 / 1/4 | KO2763075 | A0186666 |
| 75 / 3/8" | KO3763075 | A0177303 |
| 100 / 1/4" | KO2763100 | A0177297 |
| 125 / 1/2" | KO4763125 | A0177309 |
| 125 / 3/8" | KO3763125 | A0177304 |
| 150 / 1/2" | KO4763150 | A0177310 |
| 150 / 1/4" | KO2763150 | A0177298 |
| 150 / 3/8" | KO3763150 | A0177305 |
| 200 / 1/4" | KO2763200 | A0177299 |
| 250 / 1/2" | KO4763250 | A0177311 |
| 250 / 1/4" | KO2763250 | A0177300 |
| 250 / 3/8" | KO3763250 | A0177306 |
| 300 / 3/8 | KO3763300 | A0186665 |
| 400 / 1/2" | KO4763400 | A0177312 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 2763, 3763 and 4763 Wobble-Fix Extension Bar, 1/4, 3/8 and 1/2 in Drive: 28 / 1/4"
SKU: A0177295 | Model: KO2763028
Ko-Ken KO2763028: Wobble-Fix extension bar. 1/4" drive, 28mm long, 14 g. Dimension D: 12.3mm.
