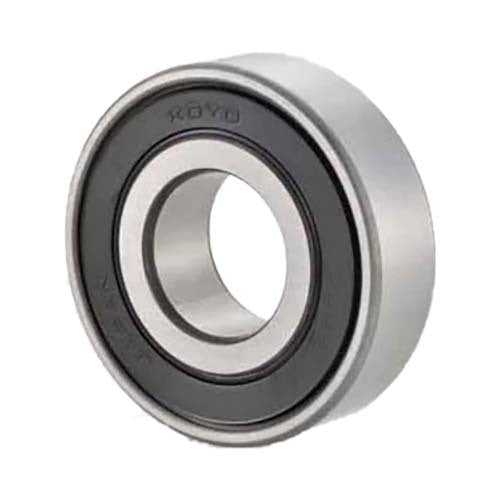

Koyo/JTEKT 60/22-2RS Deep Groove Ball Bearing Rubber Seal 22 x 44 x 12mm
Regular price
$32.78
Sale price
$32.78
Regular price
Inc. GST
Available
Koyo/JTEKT 60/22-2RS. Sealed (rubber): rubber seals retain grease and exclude contaminants. Koyo precision chrome steel races and balls. Standard clearance. Koyo/JTEKT Deep Groove Ball Bearing Rubber Seal 60/22-63/32 Series is a service-grade replacement for industrial and automotive drive shafts.
Bearing type: Deep groove ball bearing. Sealing: Sealed (rubber). Clearance: Standard. Material: Chrome bearing steel. Refer to title for dimensions.
Available Sizes
8 sizes available — select the exact size you need from the dropdown above. Key figures for each:
| Bore Diameter x Outer Diameter x Width (mm) | Basic Load Rating (kN) Cr | Basic Load Rating (kN) C0r | Limiting Speed (min-1) Oil lub. (Z) |
|---|---|---|---|
| 22 x 44 x 12 | 11.7 | 5.15 | 20000 |
| 22 x 50 x 14 | 16 | 6.65 | 17000 |
| 28 x 52 x 12 | 15.6 | 7.4 | 16000 |
| 28 x 58 x 16 | 22.4 | 9.75 | 14000 |
| 28 x 68 x 18 | 29.4 | 13.1 | 12000 |
| 32 x 58 x 13 | 18.8 | 9.15 | 14000 |
| 32 x 65 x 17 | 29.4 | 13.1 | 12000 |
| 32 x 75 x 20 | 37.6 | 16.2 | 11000 |
Where This Is Used
- Automotive: Transmissions, electrical devices, truck, and trailer equipment.
- Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
- Electrical Equipment: Standard motors, electric appliances for domestic use.
- Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.
Features
- Features Deep Groove Radial Bearing.
- Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
- The most popular rolling bearing type used in a wide variety of industries and applications.
- The inner and outer rings have deep uninterrupted grooves.
- They can support radial loading and a certain degree of axial loading in either direction.
- High-speed capability.
- The Maximum style not to be used when axial loading or high speed is involved.
- Sealed and shielded types are filled with an appropriate volume of grease.
- Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
- Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel.
Full engineering specifications (all 16 fields, 8 sizes)

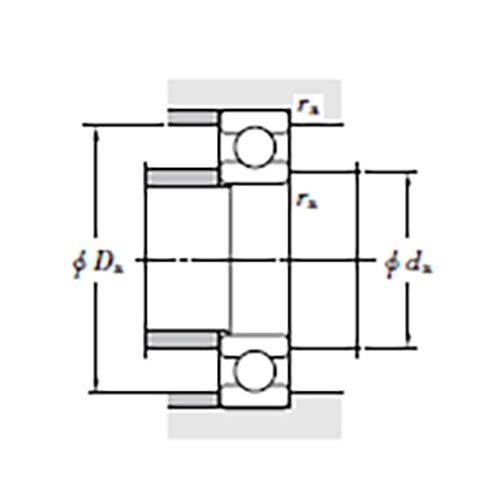

| Bearing Width B (mm) | Bore Diameter x Outer Diameter x Width (mm) | Limiting Speed (min-1) Oil lub. (Z) | Basic Load Rating (kN) Cr | Limiting Speed (min-1) Grease lub. (RS, 2RS) (Z) | Fatigue Load Limit (kN) Cu | Outside Diameter D (mm) | Basic Load Rating (kN) C0r | Bore Diameter d (mm) | Mounting Dimension (mm) Da Max | Mounting Dimension (mm) Ra Max | Factor F 0 | Limiting Speed (min-1) Grease lub. (RU, 2RU) | Limiting Speed (min-1) Grease lub. (RD, 2RD) | Mounting Dimension (mm) Da Min | Boundary Dimension (mm) r min. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 22 x 44 x 12 | 20000 | 11.7 | 9900 | 0.35 | 44 | 5.15 | 22 | 40 | 0.6 | 14.1 | 17000 | 15000 | 26 | 0.6 |
| 14 | 22 x 50 x 14 | 17000 | 16 | 9700 | 0.51 | 50 | 6.65 | 22 | 45 | 1 | 13.2 | 15000 | 14000 | 27 | 1 |
| 12 | 28 x 52 x 12 | 16000 | 15.6 | 8100 | 0.48 | 52 | 7.4 | 28 | 48 | 0.6 | 14.5 | 14000 | 13000 | 32 | 0.6 |
| 16 | 28 x 58 x 16 | 14000 | 22.4 | 7600 | 0.72 | 58 | 9.75 | 28 | 53 | 1 | 13.4 | 12000 | 11000 | 33 | 1 |
| 18 | 28 x 68 x 18 | 12000 | 29.4 | 6900 | 0.99 | 68 | 13.1 | 28 | 61.5 | 1 | 13.3 | 10000 | 9000 | 34.5 | 1.1 |
| 13 | 32 x 58 x 13 | 14000 | 18.8 | 7200 | 0.6 | 58 | 9.15 | 32 | 53 | 1 | 14.5 | 12000 | 11000 | 37 | 1 |
| 17 | 32 x 65 x 17 | 12000 | 29.4 | 6900 | 0.99 | 65 | 13.1 | 32 | 60 | 1 | 13.3 | 10000 | 9000 | 37 | 1 |
| 20 | 32 x 75 x 20 | 11000 | 37.6 | 6400 | 1.3 | 75 | 16.2 | 32 | 68.5 | 1 | 12.7 | 9300 | 8400 | 38.5 | 1.1 |
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
22 x 44 x 12mm bearing
Model Number: 60/22-2RS/KOYO
-
22 x 50 x 14mm bearing
Model Number: 62/22-2RS/KOYO
-
28 x 52 x 12mm bearing
Model Number: 60/28-2RS/KOYO
-
28 x 58 x 16mm bearing
Model Number: 62/28-2RS/KOYO
-
28 x 68 x 18mm bearing
Model Number: 63/28-2RS/KOYO
-
32 x 58 x 13mm bearing
Model Number: 60/32-2RS/KOYO
-
32 x 65 x 17mm bearing
Model Number: 62/32-2RS/KOYO
-
32 x 75 x 20mm bearing
Model Number: 63/32-2RS/KOYO
