INOX 304 linch pins, M4
The price shown is for the box.
Available
INOX Linch Pin - 304 Stainless Steel is a linch pin. The Linch Pin, 304 Stainless Steel is a pin with a pivoting lock ring (or a retaining collar) used to secure a wheel, hitch or coupling on a shaft.
You can choose from 4 variants, covering sizes M4 to M10. Variants are supplied in packs of 10 to 20, depending on size. A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Trailer, tractor and equipment hitches
- Retaining pins and couplings that are fitted and removed often
- Fresh water and general outdoor fittings
- Indoor architectural and joinery work
- General workshop and maintenance use
Features
- Supplied in packs of 10 to 20
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Positive retention of the pin
- Locks quickly and is quick to remove
- Range covers M4 to M10 in 4 variants

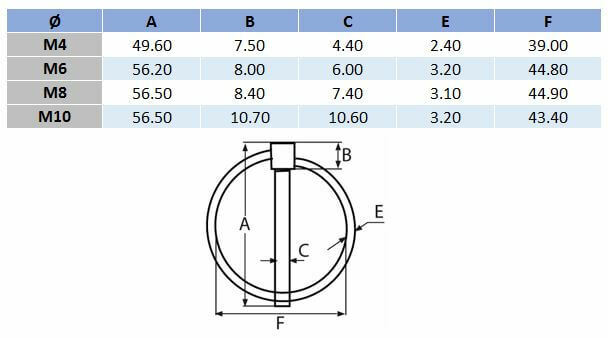

Key specifications
| Specification | Detail |
|---|---|
| Brand | INOX |
| Product | Linch Pin |
| Type | Pin with a pivoting lock ring (or a retaining collar) used to secure a wheel, hitch or coupling on a shaft |
| Material | A2 (304) stainless steel |
| Variants | 4 |
| Key features | Locks quickly and is quick to remove, Positive retention of the pin |
| Size range | M4 to M10 |
| Environment | Indoor, fresh water and general outdoor use |
| Pack quantity | 10 to 20, by size |
Choosing the right option
Check the pin diameter against the shaft or hitch hole. Near the coast, around pools or in marine settings, use the A4 (316) version instead: Linch Pin Stainless Steel.
| Option | Part number | SKU |
|---|---|---|
| M4 | A0088030 | |
| M6 | A0088031 | |
| M8 | A0088032 | |
| M10 | A0088033 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Linch Pin - 304 Stainless Steel: M4
SKU: A0088030 | Model: LPIA2M4
LPIA2M4: M4 linch pin, 304 Stainless Steel. Sold in a box of 20. Suits securing wheels and hubs on shafts.
