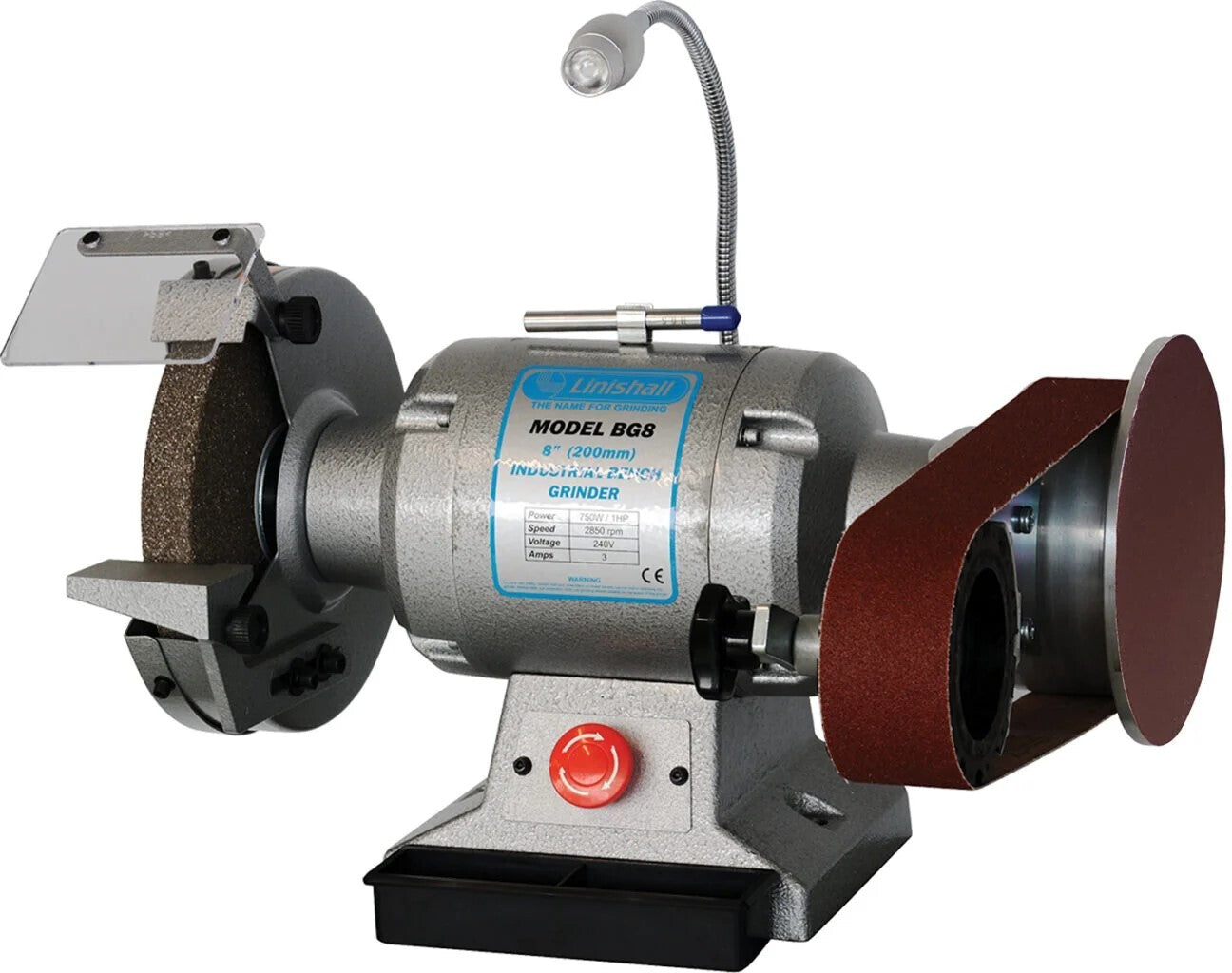

Linishall 200mm (8") bench grinder with 915 x 50mm belt

The Linishall BG8/915 is a heavy duty 200mm (8") bench grinder with a 915 x 50mm belt and disc grinding attachment fitted. It is supplied fully assembled and pre-tracked by a technician, and it can be fitted on a pedestal for a complete package.

The attachment has a top platen for flat surface grinding, a 180mm sanding disc and a grooved contact wheel that avoids belt hop on lap joint belts and runs cooler. It has sealed for life bearings, a large handle for tracking adjustment, a tensioner locking lever for easy belt changes and an E-stop switch, and the attachment can be rotated 360 degrees.

Where this product is used

• Grinding and finishing steel, stainless steel, ceramics, timber, plastics and carbide with 50 x 915mm abrasive belts in a range of grits and materials
• Flat surface grinding on the top platen and disc sanding with the 180mm disc

Features

• 200mm (8") heavy duty bench grinder with 915 x 50mm belt and disc attachment
• Supplied fully assembled and pre-tracked by a technician
• Can be fitted on a pedestal for a complete package
• Attachment rotates 360 degrees
• Top platen for flat surface grinding
• 180mm sanding disc
• Grooved contact wheel avoids belt hop on lap joint belts and runs cooler
• Sealed for life bearings
• Large handle for easy tracking adjustment
• Tensioner locking lever for easy belt changing

Key specifications

Choosing the right option

Choose this model when you want the 915 attachment fitted and tracked for you. If you already have a grinder or motor, the Linishall 915 belt grinding attachment can be bought on its own.

Belts are in the: Linishall linishing belt range, Linishall hook and loop sanding discs, Linishall self adhesive sanding discs.

The: Linishall 915 pivoting table.
