Linishall Pedestal Mounted Belt Grinder 1220/50/P1 - 1220 x 50 mm, single phase 240 V

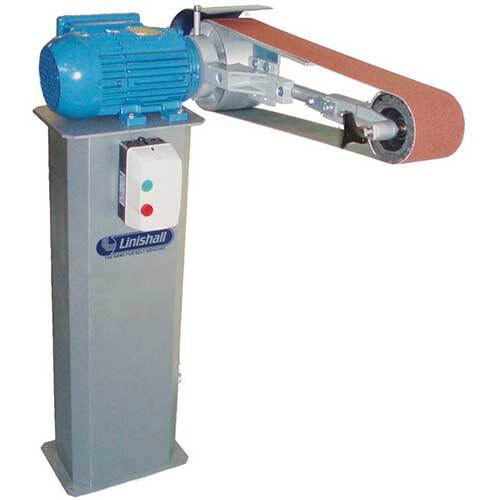

The Linishall pedestal mounted belt grinder is a belt grinding attachment fitted to a continuous rated 1.1 kW (1.5 HP) TEFC motor and mounted on a pedestal to form a free standing machine. It runs three common belt sizes: 1220 x 50 mm, 1520 x 50 mm and 1520 x 100 mm, with a single phase 240 V or three phase 415 V motor as shown in the model number.

All pedestal units have IP65 rated switchgear fitted, which includes thermal overload and no-volt release (manufacturer-stated). The rubber contact wheel has air grooves for cooling, which gives longer wheel life, and belt tracking needs no tools.

Where this product is used

• Linishing, weld blending and finishing on a free standing machine in engineering workshops and toolrooms.

Features

• Belt grinding attachment fitted to a continuous rated 1.1 kW (1.5 HP) TEFC motor
• Mounted on a pedestal to form a free standing machine
• IP65 rated switchgear with thermal overload and no-volt release (manufacturer-stated)
• Single phase (240 V) or three phase (415 V) as shown in the model number
• Three common belt sizes: 1220 x 50, 1520 x 50 and 1520 x 100 mm
• Longer rubber contact wheel life with air grooves for cooling
• Easy belt tracking with no tools required

Key specifications

All models have a continuous rated 1.1 kW (1.5 HP) TEFC motor.

Selecting the right option

Choose the belt size and the supply: the model number ends in P1 for single phase 240 V and P3 for three phase 415 V. Confirm that your workshop supply suits the motor before ordering. A 1220 x 100 mm belt model is listed separately: see the Linishall 1220/100/P1 heavy duty belt grinder. Contact AIMS if you are unsure which Linishall machine or accessory suits your job.
