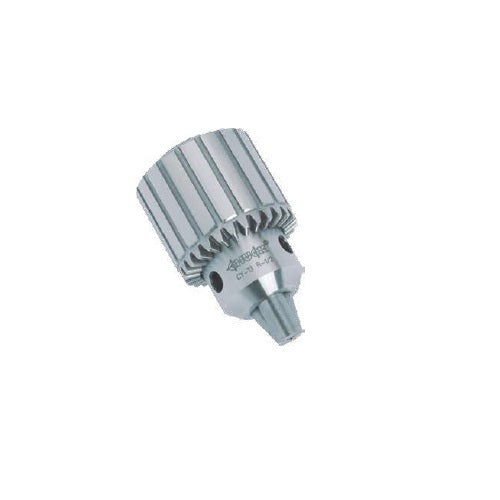

Llambrich CYX-13-J6 Heavy Duty Keyed Drill Chuck, 1-13mm, J-6 (6JT) Mount

Llambrich lists the CYX-13-J6 as an extra heavy duty model of its CY keyed industrial chuck (manufacturer-stated).

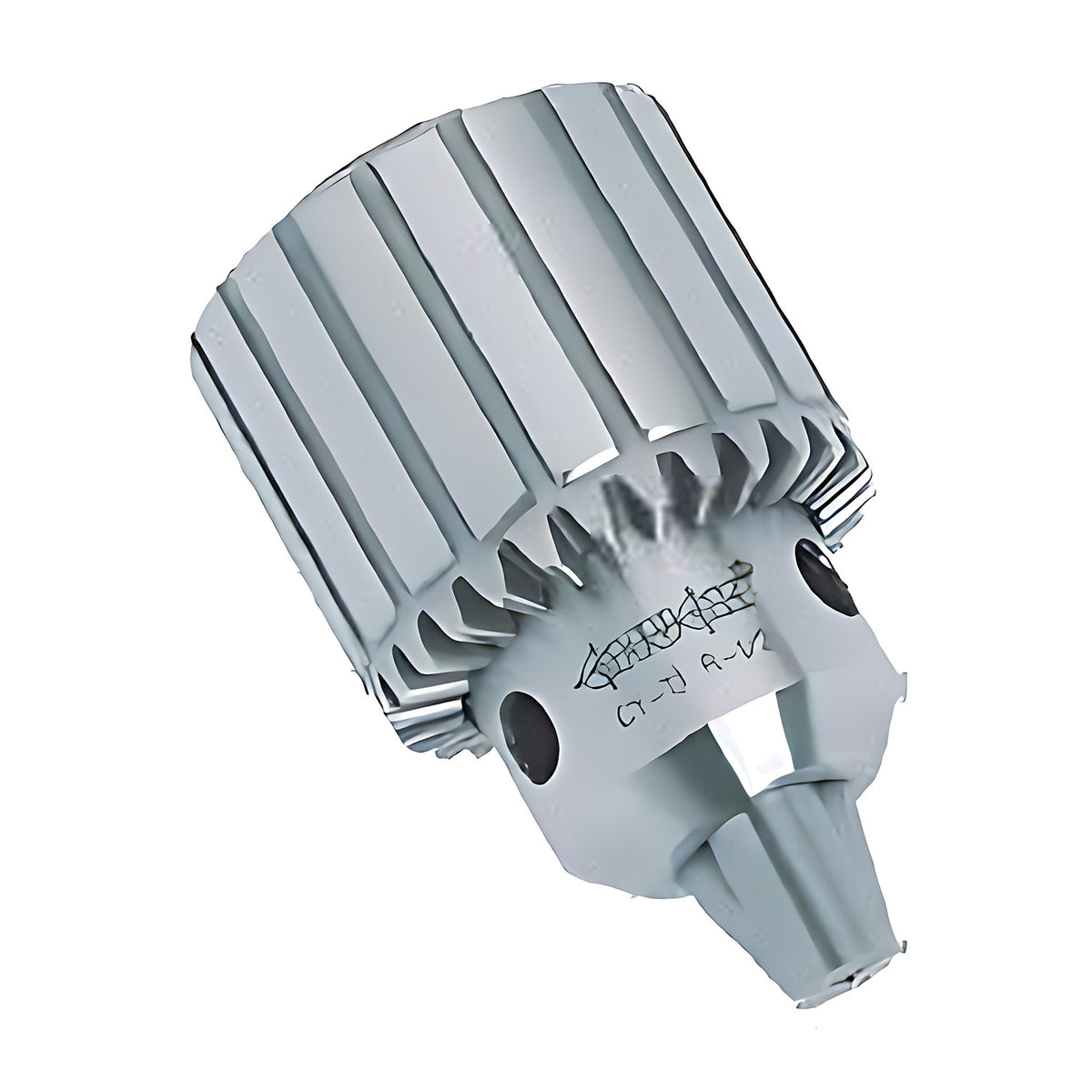

The CYX-13 is a 13mm chuck on a Jacobs taper mount. Llambrich lists the CYX-13-J6 on a J-6 (6JT) mount with a 1-13mm capacity, a ø53mm outside diameter, lengths L1 69mm and L2 89mm, and the LK3 chuck key (manufacturer-stated). The CYX-13-J2 has a J-2 (2JT) mount.

Where this product is used

• Stationary drilling, turning, milling and woodworking machines (manufacturer-stated)
• Portable drilling machines (manufacturer-stated)

Features

• Heavy duty CYX-13 keyed chuck; the J-6 model is listed by Llambrich as extra heavy duty (manufacturer-stated)
• One-piece gear ring and sleeve, which Llambrich says removes the possibility of tooth breakage (manufacturer-stated)
• Jaws, gear ring and body all totally hardened, to avoid wear and lengthen the life of the chuck (manufacturer-stated)
• Machine fitting via DIN-238 or Jacobs tapers and UNF screw fittings (manufacturer-stated)

Key specifications

Selecting the right option

The CYX-13 and the CY-13 are both 13mm chucks. Llambrich lists the CYX-13-J6 with a larger body than the CY-13-J6: ø53mm against ø46mm, L1 69mm against 62mm and L2 89mm against 77mm, a lower capacity limit of 1mm against 1.5mm, and the LK3 key in place of LK2 (manufacturer-stated). Choose the J-6 (6JT) or J-2 (2JT) mount to suit your machine spindle. For the CY-13 on other mounts see the industrial keyed drill chuck.

Related products

Same series: CY industrial keyed drill chuck and CYX-13 heavy duty Morse taper keyed chuck. Chuck keys: Chuck Key - Imperial.
