Llambrich CSS stainless steel keyed chucks, 0-6.5 x 1JT

Llambrich CSS chucks are keyed drill chucks in stainless steel, from the INOX stainless steel range. They are for use in the medical, dental and food industries and are made from stainless steel to withstand corrosion.

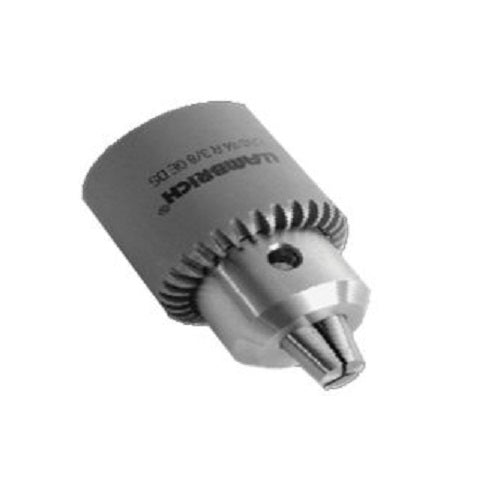

The three chucks here are the CSS-04-J0-GE with a J0 mount, the CSS-06-J1-GE-DS with a 1JT mount and the CSS-06R3/8-GE-DS with a 3/8-24 mount. All GE models are bead blasted with glass balls and passivated by electro-polishing, adds protection against all types of corrosion and improves the surface finish.

Where this product is used

• Medical, dental and food industries

Features

• Stainless steel construction to withstand corrosion
• Bead blasted with glass balls, then passivated by electro-polishing (GE models)
• Electro-polishing eliminates undesirable residual contaminants
• Through hole in the chuck for inserting nails, screws, pins and other medical fasteners
• Special laser markings to hold up to the autoclave process
• Manufactured in Spain

Key specifications

Choosing the right option

The CSS-04-J0-GE is the small chuck, 0.5-4mm with a J0 mount. The two CSS-06 chucks differ by mount: the CSS-06-J1-GE-DS has a 1JT mount for a spindle or arbor with that taper, and the CSS-06R3/8-GE-DS has a 3/8-24 mount for a threaded drive. It has key LK0M for the CSS-04 and LK1M for the CSS-06: see Chuck Key - Imperial.

See also: Chuck Key - Imperial, 1/4" hex to 3/8" x 24 adapter, keyed drill chucks for portable tools, industrial keyed drill chucks.
