Loc-Line 3/4" NPT connector: 61505, Black / 4
Available

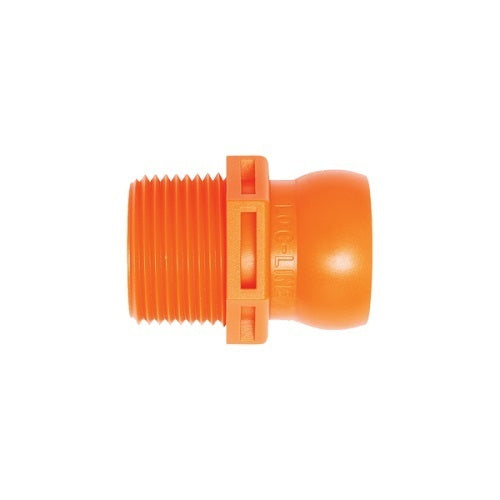

The 3/4" NPT connector for the 3/4" Loc-Line modular hose system (Lockwood Products, USA) is available as 4 variants: 61505 (pack of 4), 61505-BLK (pack of 4, black), 69545 (pack of 50) and 69545-BLACK (pack of 50, black). It is part of the connectors section of the 3/4" system.
Line pressure, flow rate and acetal temperature figures for the 3/4" system are in the specifications.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- 3/4" NPT connector for the 3/4" Loc-Line modular hose system
- Pack contents: 61505: (4) NPT connectors, 61505-BLK: (4) NPT connectors, 69545: (50) NPT connectors, 69545-BLACK: (50) NPT connectors
- System: 3/4" Loc-Line modular hose system
- Part type: 3/4" NPT connector
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| System | 3/4" Loc-Line modular hose system |
| Part type | 3/4" NPT connector |
| Pack contents | 61505: (4) NPT connectors, 61505-BLK: (4) NPT connectors, 69545: (50) NPT connectors, 69545-BLACK: (50) NPT connectors |
| Colour suffixes | Colour suffixes -BLK (black) and -G (grey) for 69545 |
| Colour | 61505: Orange, 69545: Orange |
| Line pressure, 3/4" system | 20 PSI standard, up to 50 PSI with element clamps on all joints, fully tightened |
| Flow rate, 3/4" system | 1,140 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
Choosing the right option
NPT and a BSPT connector for this size; this is the NPT connector. Check the thread on your machine fitting before you choose. No -W suffix is printed against the cells for these numbers. Match the part to the hose system: a 3/4" system part does not fit hose from another system.
Same size, BSPT thread: 3/4" BSPT connectors.
Matching 3/4" system parts: 3/4" hose, 50 ft coil, 3/4" round nozzles, 3/4" male NPT valves.
| Option | Part number | SKU |
|---|---|---|
| Black / 4 | 61505-BLK | A0107210 |
| Black / 50 | 69545-BLACK | A0107211 |
| Orange / 4 | 61505 | A0107220 |
| Orange / 50 | 69545 | A0107221 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

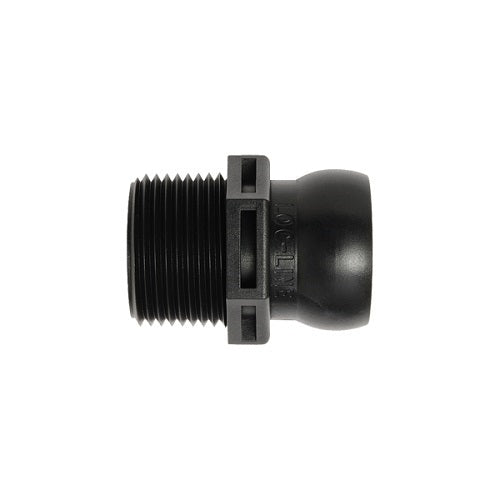

Loc-Line 3/4" NPT Connector for 3/4" Modular Hose: Black / 4
SKU: A0107210 | Model: 61505-BLK
Loc-Line 61505-BLK: 3/4" NPT connector for the 3/4" system, pack of 4, black. Standard line pressure 20 PSI.
