Loc-Line ProStream nozzles, 0.16 / 0.5 / Orange
Available
Loc-Line ProStream nozzles for the 1/4" Loc-Line modular hose system (Lockwood Products, USA) come in four diameters, 0.062", 0.086", 0.117" and 0.160", each in two lengths, 0.50" and 1.25". Each size as a pack of 2 (41420 to 41427) and as a pack of 10 under its own number. It comes in nine options: the eight packs of 2 and the pack of 10 in 0.117" x 0.50" (49482).
"WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov" against the ProStream nozzles and brass ball adapters. The 1/4" system standard line pressure is 55 PSI.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- Four diameters (0.062", 0.086", 0.117" and 0.160") in two lengths (0.50" and 1.25")
- Colour suffixes printed for the pack of 10 numbers: -BLK (black) and -G (grey)
- the range carries a Prop 65 warning for ProStream nozzles: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Nozzle: ProStream nozzle
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| Nozzle | ProStream nozzle |
| System | 1/4" Loc-Line modular hose |
| Sizes | 0.062", 0.086", 0.117" and 0.160" Ø, 0.50" and 1.25" L |
| Pack contents | 41420 to 41427: (2) ProStream nozzles, 49482: (10) ProStream nozzles |
| Colour suffixes | -BLK (black) and -G (grey) for the pack of 10 numbers |
| Warning | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Line pressure, 1/4" system | 55 PSI standard, up to 110 PSI with element clamps on all joints, fully tightened |
| Flow rate, 1/4" system | 250 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
| Diameter x length | 0.062" Ø x 0.50" L, 0.086" Ø x 0.50" L, 0.117" Ø x 0.50" L, 0.160" Ø x 0.50" L, 0.062" Ø x 1.25" L, 0.086" Ø x 1.25" L, 0.117" Ø x 1.25" L, 0.160" Ø x 1.25" L |
Choosing the right option
Match the nozzle to the hose system: a 1/4" system part does not fit hose from another system.
Other 1/4" system nozzles: 1/4" side flow nozzles for 1/4" hose (41478, 49443), 1/4" 45° nozzles for 1/4" hose (41463, 49473), 1/4" 90° nozzles for 1/4" hose (41472, 49441).
Hose and fittings for the 1/4" system: 1/4" modular hose, 50 ft coil (49421), 1/4" hose kit (40413), 1/4" NPT connectors.
| Option | Part number | SKU |
|---|---|---|
| 0.062 / 0.5 / Orange | 41420 | A0107231 |
| 0.062 / 1.25 / Orange | 41424 | A0107235 |
| 0.086 / 0.5 / Orange | 41421 | A0107232 |

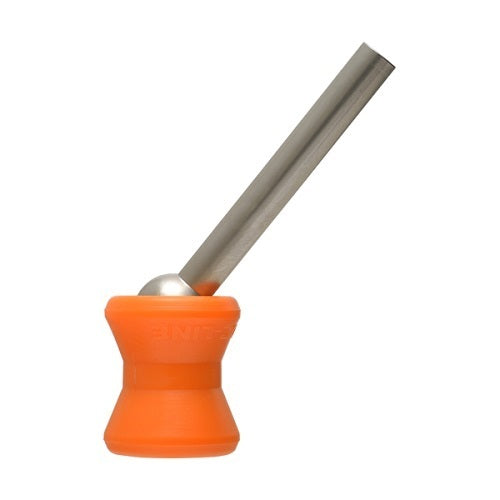

| 0.086 / 1.25 / Orange | 41425 | A0107236 |
| 0.117 / 0.5 / Black | 49482 | A0107230 |

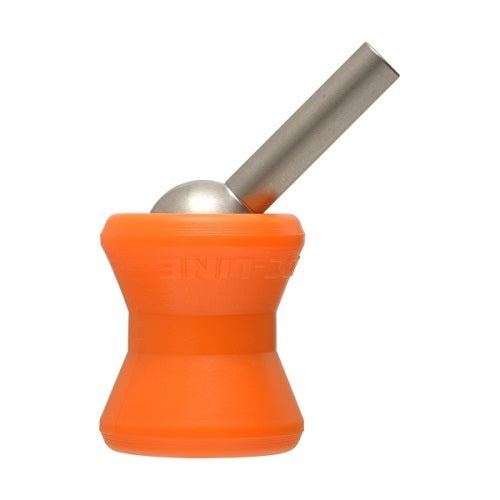

| 0.117 / 0.5 / Orange | 41422 | A0107233 |
| 0.117 / 1.25 / Orange | 41426 | A0107237 |
| 0.16 / 0.5 / Orange | 41423 | A0107234 |
| 0.16 / 1.25 / Orange | 41427 | A0107238 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Loc-Line ProStream Nozzle for 1/4" Modular Hose: 0.16 / 0.5 / Orange
SKU: A0107234 | Model: 41423
Loc-Line 41423 is a ProStream nozzles, 0.16 / 0.5 / Orange. System: 1/4" Loc-Line modular hose. Nozzle: ProStream nozzle.
