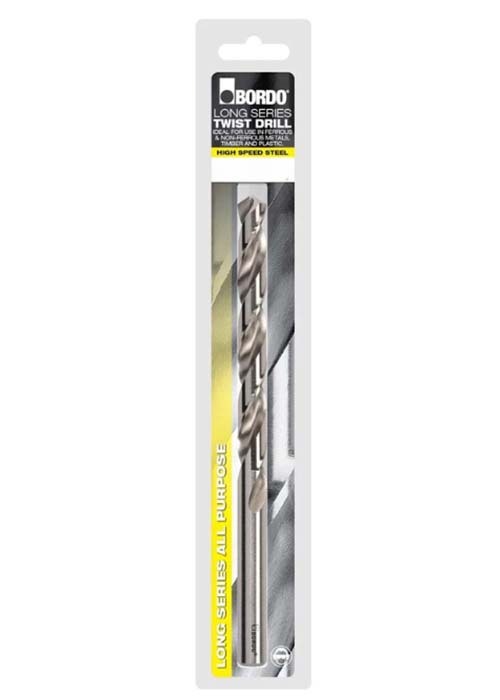

Bordo 1mm Long Series Bright Drill Bit Clam Shell (2506) - Metric

$13.05
$13.05
Inc. GST

Available

The Bordo Long Series Bright Drill Bit Clam Shell (2506) - Metric is part of Bordo's Australian drill bit range, engineered for reliable performance in trade and industrial drilling applications.

Key Specifications

Diameter (mm) 1
Spindle Speed Free Cutting Stl RPM 13696
Surface Finish Bright
Flute Type 30° Helix
Flute Length (mm) 29
Overall Length (OAL) mm 57
Feed per Revolution (mm) 0.04
Spindle Speed Aluminium/Brass RPM 19429
Spindle Speed Stainless Steel RPM 3822
Spindle Speed Wood/Plastic RPM 28984
Spindle Speed Malleable Iron RPM 8600
Spindle Speed Med. Carbon Steel RPM 9555
Spindle Speed Cast Iron RPM 7644
Spindle Speed Tool Steel RPM 5733
Type of Point 118° Split Point

Product Features

  • ANSI B94-11
  • Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition
  • 118° split point with 30° helix
Product Highlights −

• Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition

• Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced

• 118° point angles are ideal for use in materials such as mild steel and cast iron

These tools are suitable for general purpose use, particularly for non-ferrous applications. The 118° point creates easily controlled chips which are wide and thin.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 1mm drill bit
    Model Number: 2506-1.00S
  • 1.5mm drill bit
    Model Number: 2506-1.50S
  • 2mm drill bit
    Model Number: 2506-2.00S
  • 2.5mm drill bit
    Model Number: 2506-2.50S
  • 3mm drill bit
    Model Number: 2506-3.00S
  • 3.3mm drill bit
    Model Number: 2506-3.30S
  • 3.5mm drill bit
    Model Number: 2506-3.50S
  • 4mm drill bit
    Model Number: 2506-4.00S
  • 4.5mm drill bit
    Model Number: 2506-4.50S
  • 5mm drill bit
    Model Number: 2506-5.00S
  • 5.5mm drill bit
    Model Number: 2506-5.50S
  • 6mm drill bit
    Model Number: 2506-6.00S
  • 6.5mm drill bit
    Model Number: 2506-6.50S
  • 7mm drill bit
    Model Number: 2506-7.00S
  • 7.5mm drill bit
    Model Number: 2506-7.50S
  • 8mm drill bit
    Model Number: 2506-8.00S
  • 8.5mm drill bit
    Model Number: 2506-8.50S
  • 9mm drill bit
    Model Number: 2506-9.00S
  • 9.5mm drill bit
    Model Number: 2506-9.50S
  • 10mm drill bit
    Model Number: 2506-10.00S
  • 10.5mm drill bit
    Model Number: 2506-10.50S
  • 11mm drill bit
    Model Number: 2506-11.00S
  • 11.5mm drill bit
    Model Number: 2506-11.50S
  • 12mm drill bit
    Model Number: 2506-12.00S
  • 12.5mm drill bit
    Model Number: 2506-12.50S
  • 13mm drill bit
    Model Number: 2506-13.00S
