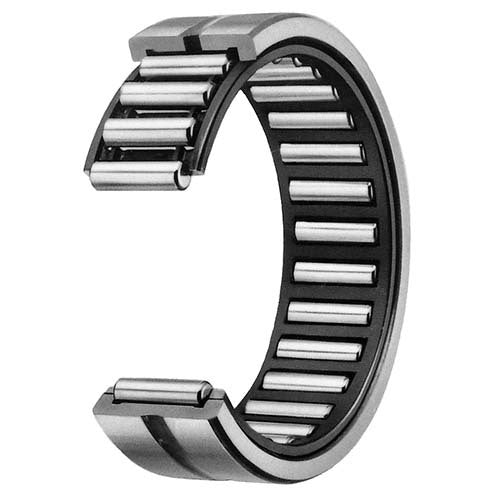

IKO BR162412 Needle Roller Bearing without Inner Ring 25.4 x 38.1 x 19.05 mm
Available
IKO BR needle roller bearings are machined type caged bearings without an inner ring, in inch sizes. This page lists 27 sizes: 15.875 to 101.6 mm (5/8 to 4 in) shaft, 28.575 to 127 mm (1 1/8 to 5 in) outside diameter and 19.05 to 50.8 mm wide, all open (no seals).
Machined type needle roller bearings have a low sectional height and large load ratings. The outer ring is rigid and can be used even in light alloy housings. Without an inner ring the shaft is the raceway, which allows a compact design and lets you choose the radial clearance by the shaft diameter. The shaft needs to be heat-treated and ground; where it cannot be, ask AIMS about an inner ring for the size.
In the model number the figures after BR are the shaft diameter, outside diameter and width in sixteenths of an inch, so BR122012 is 3/4 x 1 1/4 x 3/4 in.
Where this product is used
- Inch size shafts that are hardened and ground
- Compact shaft supports with a low sectional height
- Light alloy housings
Features
- Machined type caged needle roller bearing without inner ring, inch series (BR), 27 sizes
- Shaft 15.875 to 101.6 mm (5/8 to 4 in), outside diameter 28.575 to 127 mm (1 1/8 to 5 in)
- No inner ring: the shaft is the raceway, so a compact design is possible
- Basic dynamic load ratings 18.9 to 176 kN, static 19.7 to 368 kN
- Allowable rotational speed 4,000 to 25,000 rpm (oil lubrication)
Key specifications
| Specification | Detail |
|---|---|
| Brand | IKO (Nippon Thompson Co., Ltd., Japan) |
| Type | Machined type caged needle roller bearing without inner ring, inch series (BR) |
| Series | BR |
| Models | BR101812 to BR648032 (27 sizes) |
| Roller set bore diameter Fw (shaft diameter) | 15.875 to 101.6 mm (5/8 to 4 in) |
| Outside diameter D | 28.575 to 127 mm (1 1/8 to 5 in) |
| Outer ring width C | 19.05 to 50.8 mm |
| Inner ring | None: the shaft is the raceway |
| Oil hole | One in the outer ring, with an oil groove, up to 69.85 mm shaft (22 sizes); two above that (5 sizes) |
| Grease | Not prepacked: lubricate before use |
| Basic dynamic load rating C | 18.9 to 176 kN |
| Basic static load rating C0 | 19.7 to 368 kN |
| Allowable rotational speed | 4,000 to 25,000 rpm (oil lubrication; up to 60% of this for grease lubrication) |
Available sizes
Show all 27 BR sizes
| Model | Fw mm (in) | D mm (in) | C mm (in) | C (kN) | C0 (kN) | Speed (rpm) |
|---|---|---|---|---|---|---|
| BR101812 | 15.875 (5/8) | 28.575 (1 1/8) | 19.05 (3/4) | 18.9 | 19.7 | 25,000 |
| BR122012 | 19.05 (3/4) | 31.75 (1 1/4) | 19.05 (3/4) | 21.7 | 24.4 | 20,000 |
| BR122016 | 19.05 (3/4) | 31.75 (1 1/4) | 25.4 (1) | 27.6 | 33.1 | 20,000 |
| BR142216 | 22.225 (7/8) | 34.925 (1 3/8) | 25.4 (1) | 29.1 | 36.8 | 18,000 |
| BR162412 | 25.4 (1) | 38.1 (1 1/2) | 19.05 (3/4) | 25.3 | 31.9 | 16,000 |
| BR162416 | 25.4 (1) | 38.1 (1 1/2) | 25.4 (1) | 32.1 | 43.3 | 16,000 |
| BR182616 | 28.575 (1 1/8) | 41.275 (1 5/8) | 25.4 (1) | 34.9 | 49.9 | 14,000 |
| BR182620 | 28.575 (1 1/8) | 41.275 (1 5/8) | 31.75 (1 1/4) | 43.2 | 65.6 | 14,000 |
| BR202816 | 31.75 (1 1/4) | 44.45 (1 3/4) | 25.4 (1) | 36 | 53.5 | 13,000 |
| BR223016 | 34.925 (1 3/8) | 47.625 (1 7/8) | 25.4 (1) | 38.5 | 60 | 11,000 |
| BR223020 | 34.925 (1 3/8) | 47.625 (1 7/8) | 31.75 (1 1/4) | 47.7 | 78.9 | 11,000 |
| BR243316 | 38.1 (1 1/2) | 52.388 (2 1/16) | 25.4 (1) | 43.7 | 66.9 | 11,000 |
| BR243320 | 38.1 (1 1/2) | 52.388 (2 1/16) | 31.75 (1 1/4) | 54.2 | 88.2 | 11,000 |
| BR263516 | 41.275 (1 5/8) | 55.562 (2 3/16) | 25.4 (1) | 44.8 | 70.9 | 9,500 |
| BR283716 | 44.45 (1 3/4) | 58.738 (2 5/16) | 25.4 (1) | 47.5 | 78.2 | 9,000 |
| BR283720 | 44.45 (1 3/4) | 58.738 (2 5/16) | 31.75 (1 1/4) | 58.9 | 103 | 9,000 |
| BR324116 | 50.8 (2) | 65.088 (2 9/16) | 25.4 (1) | 51 | 89.4 | 8,000 |
| BR324120 | 50.8 (2) | 65.088 (2 9/16) | 31.75 (1 1/4) | 63.2 | 118 | 8,000 |
| BR364828 | 57.15 (2 1/4) | 76.2 (3) | 44.45 (1 3/4) | 105 | 191 | 7,000 |
| BR405224 | 63.5 (2 1/2) | 82.55 (3 1/4) | 38.1 (1 1/2) | 94.6 | 174 | 6,500 |
| BR405228 | 63.5 (2 1/2) | 82.55 (3 1/4) | 44.45 (1 3/4) | 110 | 210 | 6,500 |
| BR445624 | 69.85 (2 3/4) | 88.9 (3 1/2) | 38.1 (1 1/2) | 98.7 | 189 | 5,500 |
| BR486024 | 76.2 (3) | 95.25 (3 3/4) | 38.1 (1 1/2) | 105 | 211 | 5,500 |
| BR486028 | 76.2 (3) | 95.25 (3 3/4) | 44.45 (1 3/4) | 122 | 255 | 5,500 |
| BR526832 | 82.55 (3 1/4) | 107.95 (4 1/4) | 50.8 (2) | 154 | 290 | 5,000 |
| BR567232 | 88.9 (3 1/2) | 114.3 (4 1/2) | 50.8 (2) | 162 | 316 | 4,500 |
| BR648032 | 101.6 (4) | 127 (5) | 50.8 (2) | 176 | 368 | 4,000 |

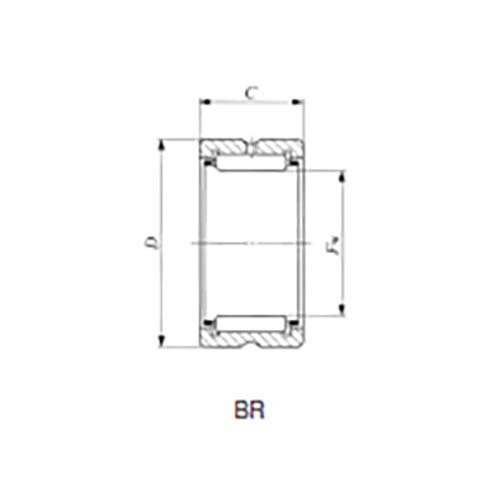

Fw is the roller set bore diameter, D the outside diameter and C the width; C and C0 are the basic dynamic and static load ratings, and speed is the allowable rotational speed.
Selecting the right option
Choose the size with the Outside Diameter option (in inches) and the Width (mm) option; the sizes table gives the shaft diameter, outside diameter and width in both millimetres and inches, so check the model number against the table.
LRB inner rings are the ring type for the BR series. Ask AIMS to match a ring to your size.
Fitting and use
These bearings are not prepacked with grease, so lubricate them before use. The allowable rotational speed in the tables is for oil lubrication; for grease lubrication use up to 60% of it. Bearings up to 69.85 mm shaft have one oil hole in the outer ring with an oil groove (22 sizes); larger sizes have two (5 sizes).

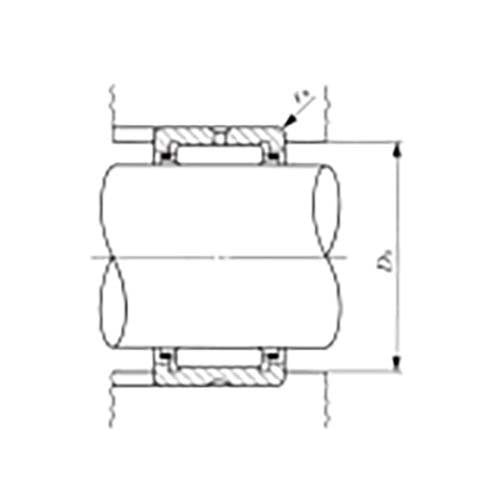

The shaft is the raceway, so it needs to be heat-treated and ground. Ask AIMS for the shaft and housing tolerances and the radial clearance that suit your application.
