Machined Type Needle Roller Bearing with Inner Ring1

Machined Type Needle Roller Bearing with Inner Ring2

Koyo/JTEKT Needle Roller Bearing with Inner Ring 100 x 130 x 30mm

Koyo/JTEKT Needle Roller Bearing with Inner Ring 100 x 130 x 40mm

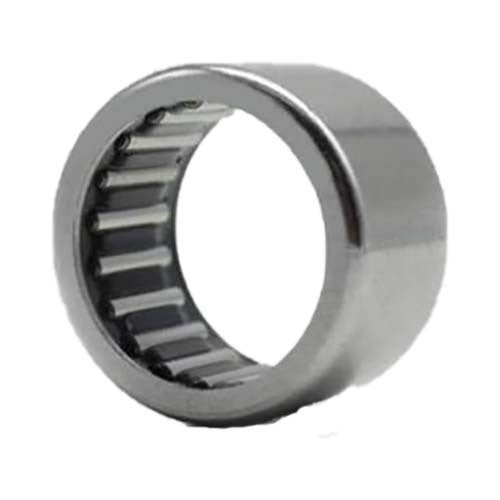

Koyo/JTEKT Needle Roller Bearing with Inner Ring 12 x 24 x 16mm (JR12x16x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 12 x 24 x 20mm (JR12x16x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 15 x 27 x 16mm (JR15x19x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 15 x 27 x 20mm (JR15x19x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 17 x 29 x 16mm (JR17x21x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 17 x 29 x 20mm (JR17x21x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 20 x 32 x 16mm (JR20x24x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 20 x 32 x 20mm (JR20x24x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 22 x 34 x 16mm (JR22x26x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 22 x 34 x 20mm (JR22x26x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 25 x 38 x 20mm (JR25x29x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 25 x 38 x 30mm (JR25x29x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 28 x 42 x 20mm (JR28x32x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 28 x 42 x 30mm (JR28x32x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 30 x 45 x 20mm (JR30x35x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 30 x 45 x 30mm (JR30x35x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 32 x 47 x 20mm (JR32x37x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 32 x 47 x 30mm (JR32x37x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 35 x 50 x 20mm (JR35x40x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 35 x 50 x 30mm (JR35x40x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 40 x 55 x 20mm (JR40x45x20)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 40 x 55 x 30mm (JR40x45x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 42 x 57 x 20mm

Koyo/JTEKT Needle Roller Bearing with Inner Ring 42 x 57 x 30mm (JR42x47x30)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 45 x 62 x 25mm (JR45x50x25)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 45 x 62 x 35mm (JR45x55x35)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 50 x 68 x 35mm (JR50x55x35)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 6 x 16 x 16mm (JR6x19x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 60 x 82 x 35mm (JR60x68x35)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 65 x 90 x 25mm (JR65x72x25)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 7 x 17 x 12mm (JR7x10x12)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 7 x 17 x 16mm (JR7x10x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 70 x 95 x 25mm (JR70x80x25)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 70 x 95 x 35mm (JR70x80x35)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 75 x 105 x 35mm

Koyo/JTEKT Needle Roller Bearing w Inner Ring 80 x 110 x 25mm (JR80x90x25)

Koyo/JTEKT Needle Roller Bearing w Inner Ring 85 x 115 x 26mm (JR85x95x26)

Koyo/JTEKT Needle Roller Bearing w Inner Ring 85 x 115 x 36mm (JR85x95x36)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 9 x 19 x 12mm (JR9x12x12)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 9 x 19 x 16mm (JR9x12x16)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 90 x 120 x 26mm (JR90x100x26)

Koyo/JTEKT Needle Roller Bearing with Inner Ring 95 x 125 x 26mm (JR95x105x26)

Description +

*** JTEKT (Formerly Koyo Brand) ***

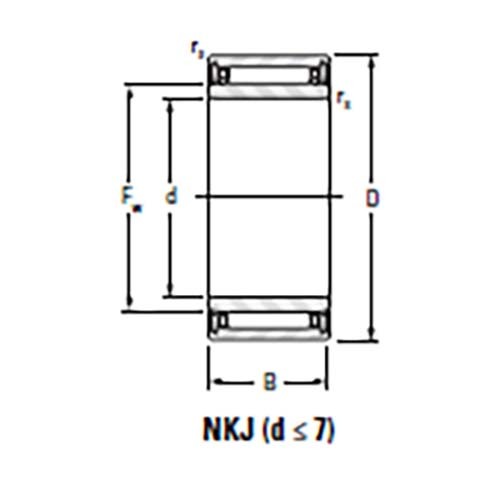

Machined Type Needle Roller Bearing with Inner Ring (NKJ)

NKJ, needle roller bearing with the inner ring.

About Metric Series Needle Roller Bearings with Inner Ring

This applies to the NKJ, NA, and NAO series.
When it is impractical to finish the shaft to meet the desired raceway design requirements, an inner ring may be used.
Standard needle roller bearings are available with inner rings (such as the NA Series) to form complete bearings.
Bearings furnished with inner rings meet the quality requirements in accordance with ISO standards.
For inner- and outer-ring tolerances, the metric series 1206 covering radial bearings.
Bearings to more precise tolerance classes, P6 and P5, may be obtained upon request.
The metric series bearings may be obtained with radial internal clearance in accordance with ISO Standard 5753, also specified for cylindrical roller bearings.
Mostly, they follow the normal (C0) radial clearance group, although follow the normal (C0) radial clearance group, although bearings to clearance groups C2, C3, and C4 may be made available on request.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Machined Type Needle Roller Bearing with Inner Ring

SKU: A0157006

Type: Needle Roller Bearing

$85.94

Inc. GST

Buy It Now

Available

The Machined Type Needle Roller Bearing with Inner Ring by Koyo is a Needle Roller Bearing with inner ring. It provides the metric series 1206 radial bearings and is suitable for Bearings & Power Transmission applications.
