Mackay Double Shear V-Shaped Marine Mount

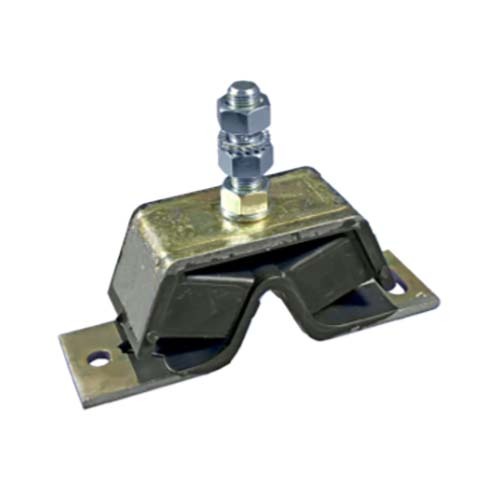

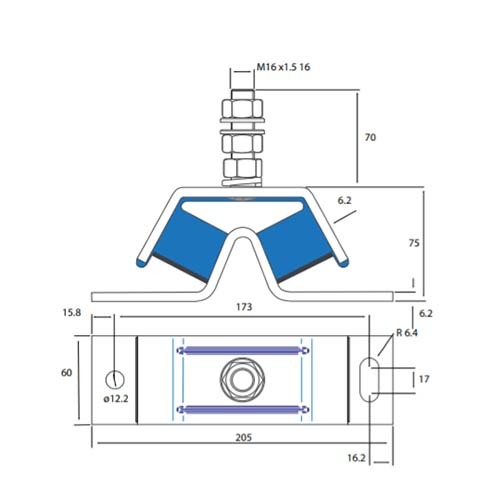

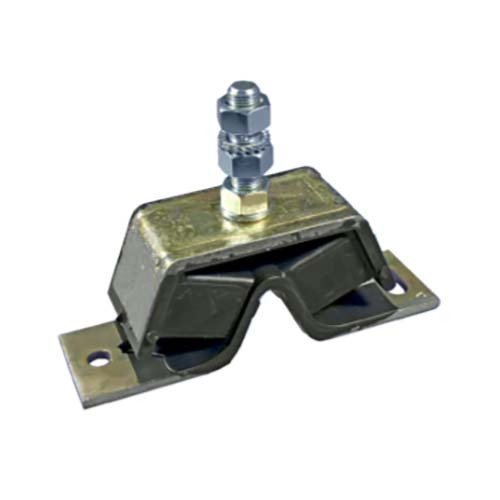

• The V-shaped marine mount works the elastomer at shear compression. It is comprised of 2 metal parts which permit its installation by means of a screw at the top and two holes for securing it to the chassis.

Technical Characteristics

• The V-shaped marine mount has a V-shaped architecture to provide major deflection at low loads. This means that the natural frequency is low and ideal for engines which normally work ticking over.
• Has three different stiffnesses per axis X,Y,Z to be able to adjust the modes of the suspended unit to obtain an optimal isolation.
