Mackay Rubber flexible bearing
Available
Mackay flexible bearings are rubber bushes with an inner sleeve and outer shell, with nominal dimensions, maximum torsion moment and angle, maximum axial and radial load, and weight. Available as 20 sizes, from a 10mm bore and 22mm outer diameter to a 50mm bore and 80mm outer diameter.
Across the 20 part numbers: torsion MT max from 7 to 450Nm, angle torsion max from 6.6 to 25° and axial load FA max from 250 to 7800 N.
Where this product is used
- Mounting points that need torsional, axial and radial movement within the Mackay limits for this size
Features
- Housing limits are given for both a rigid housing interference fit and a rolled spring eye
- Number of sizes: 20
- Bore (A): 10 to 50mm
- Outer diameter (B): 22 to 80mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Vibration Isolator |
| Number of sizes | 20 |
| Bore (A) | 10 to 50mm |
| Outer diameter (B) | 22 to 80mm |

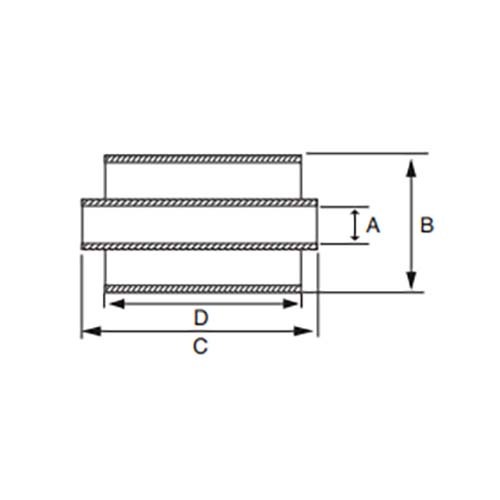

| Sleeve length (C) | 25 to 110mm |
| Outer shell length (D) | 20 to 100mm |
| Torsion MT max | 7 to 450Nm |
| Angle torsion max | 6.6 to 25° |
| Axial load FA max | 250 to 7800 N |
| Weight | 0.034 to 1.4kg |
| Outer length (D) | 20 to 100 |
| Torsion MT max (Nm) | 7 to 450 |
| Angle torsion max (deg) | 6.6 to 25 |
| Axial load FA max (N) | 250 to 7800 |

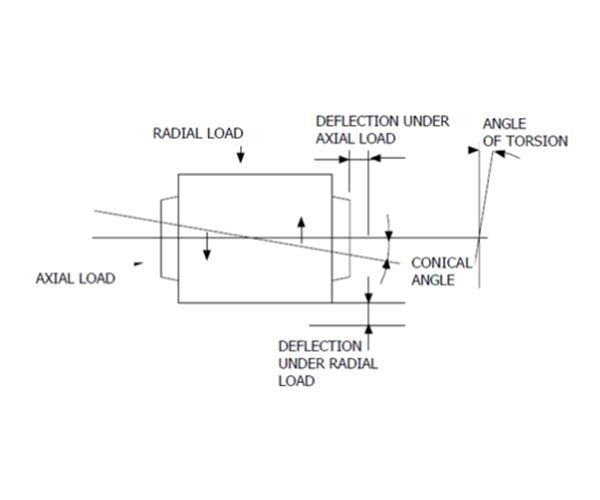

| Axial load SA max (mm) | 0.9 to 7.8 |
| Radial load FR max (N) | 1200 to 35000 |
| Radial load SR max (mm) | 0.25 to 2.3 |
| Weight (kg) | 0.034 to 1.4 |
Choosing the right option
Start with the bore (A) and outer diameter (B) that fit your pin and housing, then check the torsion, axial and radial limits for that part number against your duty. Each limit is a maximum, so choose a size with margin above your working loads. All properties are nominal.
Rigid housing interference fit:.
Rolled spring eye:.
Related Mackay products: Mackay Cushion Connector, Mackay Annular Isolator, Mackay U-Flex Isolator.
| Option | SKU |
|---|---|
| 20 x 25 x 25 | A0171062 |
| 22 x 30 x 32 | A0171054 |
| 25 x 30 x 22 | A0171043 |
| 28 x 34 x 30 | A0171058 |
| 30 x 32 x 22 | A0171044 |
| 35 x 40 x 45 | A0171061 |
| 40 x 60 x 40 | A0171059 |
| 40 x 45 x 27 | A0171060 |
| 44 x 55 x 45 | A0171055 |
| 45 x 45 x 80 | A0171057 |
| 47 x 55 x 66 | A0171053 |
| 48.5 x 58.5 x 36 | A0171045 |
| 50 x 56 x 50 | A0171046 |
| 52 x 60 x 46.4 | A0171056 |
| 55 x 65 x 70 | A0171047 |
| 55 x 59 x 32 | A0171052 |
| 64 x 70 x 45 | A0171050 |
| 80 x 85 x 50 | A0171048 |
| 90 x 100 x 75 | A0171051 |
| 100 x 110 x 80 | A0171049 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

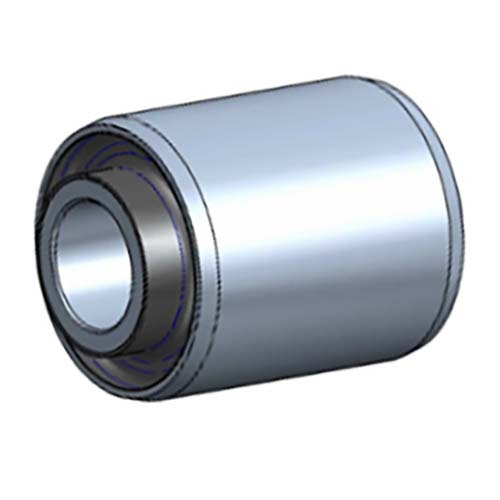

Mackay Flexible Bearing: 20 x 25 x 25
SKU: A0171062 | Model: M154168
Mackay M154168: flexible bearing, 20 x 25 x 25mm (D x C x B), 10mm bore, torsion 8Nm max at 10°, axial 250 N max. Axial load SA max: 1mm.
