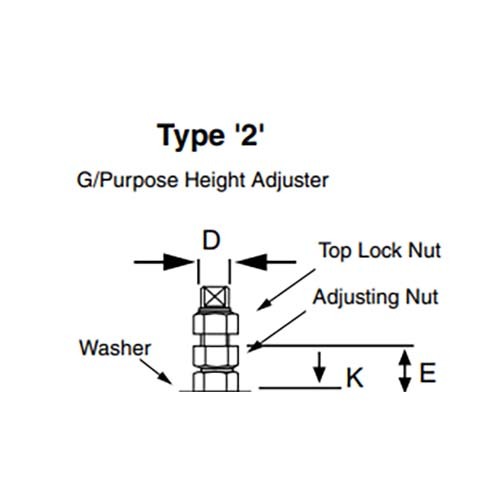

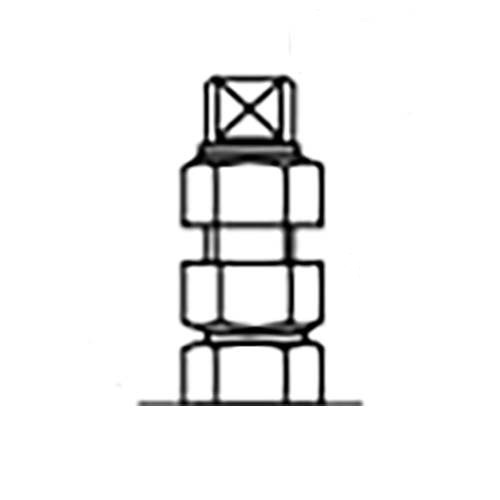

Mackay Isomount Type 2 general purpose adjuster, M12

Mackay Isomount general purpose height adjuster is the Type 2 adjuster for Isomount isolators, suitable for static applications. Recommended height adjusters where precise alignment is required.

It is sold on its own in three sizes, M2000A (M12 thread), M2200A (M16) and M2400A (M20), one for each size of Isomount, and weighs 0.13kg, 0.3kg and 0.5kg. Fitting an inappropriate height adjuster has in the past damaged the centre spindle and caused early failure of the isolator, and care must be taken not to put excessive bending forces on the centre spindle.

Where this product is used

• Static applications where the Isomount must be aligned precisely
• Height and alignment adjustment of Isomount isolators using the adjuster and the slotted holes in the mounting base

Features

• General purpose adjuster for static applications (Type 2)
• Available separately for each size of Isomount
• Washer is placed hard against the top cap and the adjusting spindle is fully located into the isolator
• Part numbers: M2000A to M2400A

Key specifications

Choosing the right option

Fit the isolator with the adjuster in its mean position, place the washer hard against the top cap, fully locate the adjusting spindle into the isolator, and use shims or packing pieces under the mounting base if the adjuster does not give enough height. Tighten the centre fixings to the recommended torque (45-50Nm for M12, 100-110Nm for M16, 150-170Nm for M20) and recheck alignment.
