***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

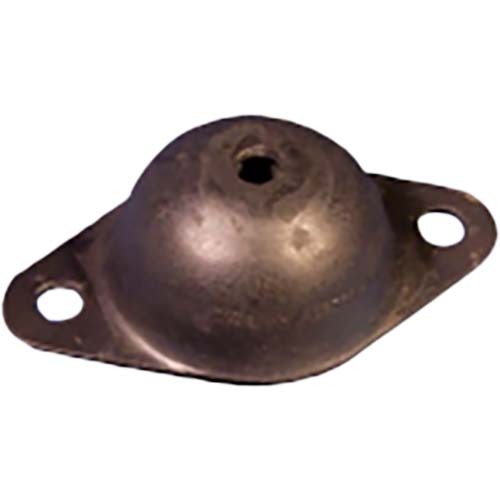

Mackay Heavy Duty Flange Isolator 316 Stainless Steel
- These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
- Loads can be suspended as well as supported.
- The isolators can be fastened to the floor or other base
- Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.
Specifications
Specifications

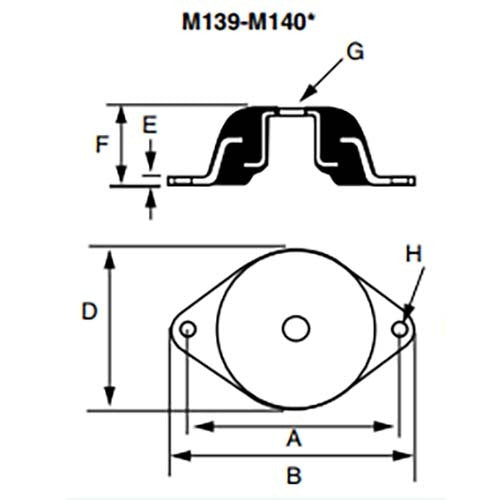

Dimensions
- Compression Load (kg): 725 - 900
- Compression Deflection (mm): 3.6 - 4.4
- Shear Load (kg): 400 - 550
- Shear Deflection (mm): 3.4 - 4.6
- Centre to Centre (mm): 127
- Length (mm): 157
- Width (mm): 102
- Plate Thickness (mm): 3
- Height Size (mm): 48
- Thread Size: 13/16 inch
- Hole Diameter (mm): 14.2
- Weight (kg): 0.6
- Durometer: 60
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Mackay M13960SS Heavy Duty Flange Isolator 157 x 102 x 48mm - 725 to 900kg
Mackay M13960SS Heavy Duty Flange Isolator 157 x 102 x 48mm - 725 to 900kg
SKU: A0166496
Type: Flange Isolator
- Wide Range
- Reliable Services
- Proven Trust
Available
The Mackay M13960SS Heavy Duty Flange Isolator 157 x 102 x 48mm by Mackay is a Flange Isolator in 316 Stainless Steel and designed for machinery installations. It offers a 725 to 900kg compression load and is suitable for anti-vibration mounts.
