Mackay M19360K Suspension Isolator 45kg

Mackay M19360K is a suspension isolator with a 45kg load rating, 11mm deflection, Duro 60 and a white colour code. Mackay designed its suspension isolators for the building and construction industry, to give satisfactory isolation of vibration and structure-borne noise transmitted in piping and ductwork.

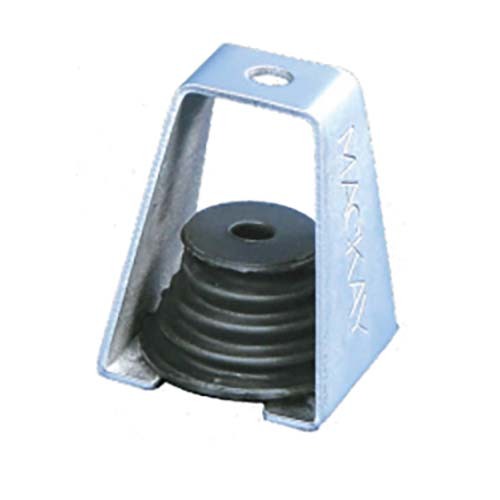

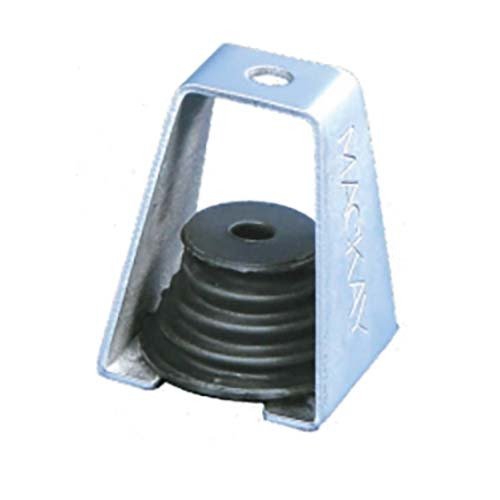

It is supplied in two parts: a frame that is fixed to the building structure and a rubber flexible element installed in the frame, with the hanger rod passed through the base. The components form an interlocking link, so the mount does not fail if the rubber is destroyed or damaged.

Where this product is used

• Heavy pipe installations, air conditioning, ducting, suspended fan units and acoustical ceilings
• Piping and ductwork, to isolate vibration and structure-borne noise in building and construction work

Features

• Two-part mounting: the frame fixes to the building structure by loxin bolts, welding or other suitable means
• Height adjustment is possible when threaded hanger rods are used
• Strong, compact failsafe mounting, the components form an interlocking link, so it does not fail if the rubber is damaged
• The smaller unit allows pre-assembly of the hanger rod into the rubber element before raising into position

Key specifications

Choosing the right option

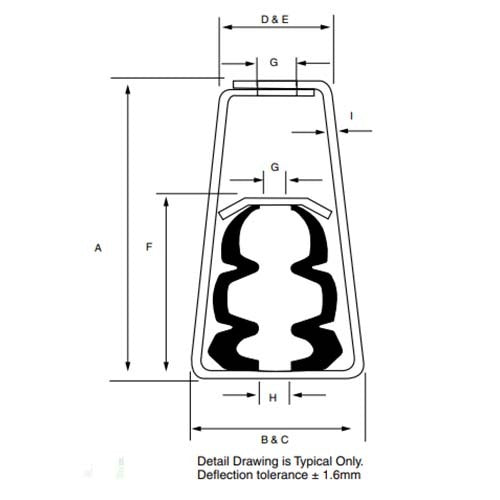

The deflection tolerance is 1.6mm either way, so allow for it in your hanger rod length. Fix the frame to the building structure by loxin bolts, welding or another suitable means. All properties are nominal.

All properties are nominal.
