Mackay Neoprene two piece isolator, load 18
Available
Mackay Mobile Two Piece isolator is made of two parts of neoprene elastomer bonded to a central tube, and is built in four sizes (outer diameter 33.2, 47.7, 64.8 and 88.9mm) with three stiffnesses in each. The bolt size, SAE grade and a maximum torque for each size (9mm bolt, 40Nm, up to a 22mm bolt, 813Nm). The elastomer element is resistant to oils, and snubbing washers, which it does not supply, are recommended for assembly.
Where this product is used
- Isolating pumps, compressors, generators, electronic equipment, engines, transmissions, plant cabs and radiators, in static or mobile applications
- Reducing noise and absorbing vibration in all directions, with good isolation against structural noises
- Assemblies that need an anti-rebound effect, when the isolator is assembled with a washer
Features
- Two pieces of neoprene elastomer bonded to a central tube, with an interior reinforced by a cylindrical tube
- Elastomer element resistant to oils
- Neoprene resistance to oils, most solvents and ozone
- Four sizes, with load capacity under axial loads from 18 to 953kg
- Simple and economical, and simple to fit
- Anti-rebound effect when it is assembled with a washer
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Vibration Isolator |
| Part numbers | M83090311 to M83090315, M53090321 to M53090345 (12 parts, four sizes) |
| Elastomer | Neoprene |
| Durometer (Duro) | 40 to 75 |
| Load per isolator | 18 to 953kg, deflection 1.2 to 3.5mm |

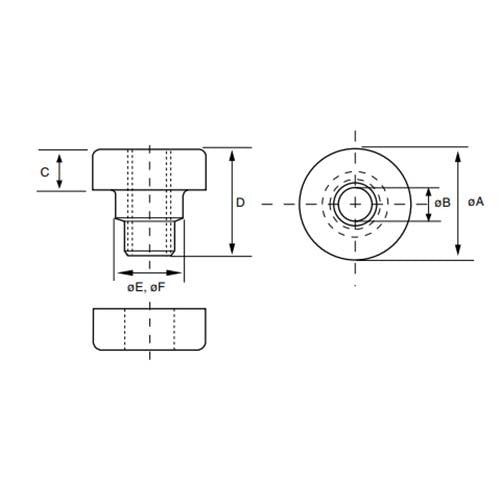

| Outer diameter (øA) | 33.2, 47.7, 64.8 or 88.9mm |
| Bolt size | 9, 13, 16 or 22mm |
| Weight | 0.04 to 0.67kg each, by size |
| Load per isolator (kg) | 18 to 953 |
| Def (mm) | 1.2 to 3.5 |
| Support plate detail E1 (mm) | 9.5 to 28.6 |
| Bolt size (mm) | 9 to 22 |
| SAE grade | 5, 8 |
| Max torque (Nm) | 40 to 813 |
Choosing the right option
Check the support plate against the E1 detail for that size (9.5, 14.3, 22.2 or 28.6mm), the mounting hole diameter (øF) and the bolt size and torque. All properties are nominal. If the isolator will carry a shock load, fit the recommended snubbing washer.

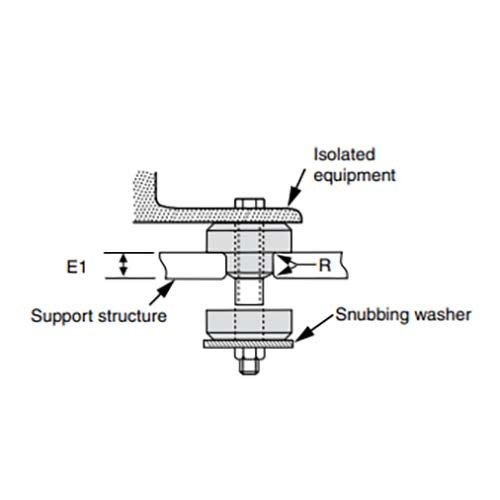

Snubbing washers are recommended for assembling the isolator because they ensure correct static and dynamic loading and protect suspended equipment under shock loads, and the washers are not supplied by Mackay Consolidated Industries. The standard washer material is low-carbon steel, and the washer part numbers are given as reference only.
Related Mackay products: Mackay Dual Compression Mobile Isolator, Mackay Dual Compression Mobile Isolator With Snubbing Washer, Mackay Dual Compression Mobile Isolator Without Snubbing Washer.
| Option | SKU |
|---|---|
| 18 | A0166430 |
| 59 | A0166433 |
| 64 | A0166431 |
| 95 | A0166436 |
| 109 | A0166434 |
| 123 | A0166439 |
| 136 | A0166432 |
| 222 | A0166437 |
| 286 | A0166435 |
| 350 | A0166440 |
| 604 | A0166438 |
| 953 | A0166441 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

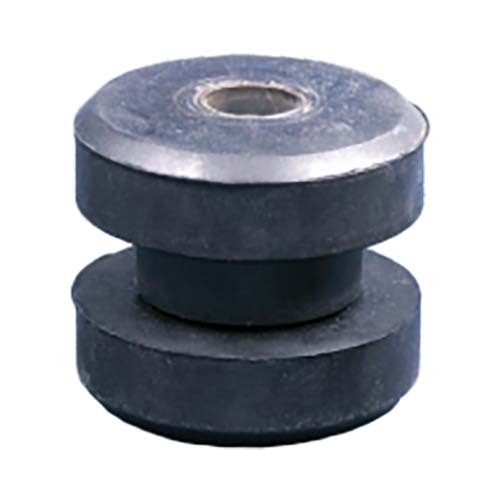

Mackay Mobile Two Piece Isolator: 18
SKU: A0166430 | Model: M83090311
Mackay M83090311: mobile two piece isolator, Duro 40, 18kg load per isolator at 1.2mm, 33.2mm outer diameter, 9mm bolt. Colour code (neoprene): red.
