Mackay M12503540 50 x 35 mm Duro 40 Multibuffer
Available

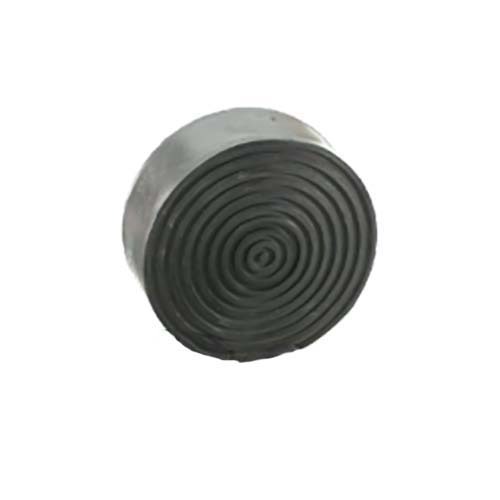

The Mackay Multibuffer is a rubber buffer designed for control of vibration, shock and acoustic noise. Mackay says it is equally adaptable for controlling impact or for use as simple machine feet (manufacturer-stated). Mackay says the Multibuffer face profile is designed to provide a simple slip resistant surface while maintaining optimum impact and static properties (manufacturer-stated).
This listing covers 12 part numbers from 20 x 18 mm to 150 x 55 mm. Eleven are Duro 55 and one, M12503540 (50 x 35 mm), is Duro 40. Threads are M6, M8, M10 and M16. The catalogue lists a static load from 25 kg to 1382 kg and a buffing load from 53 kg to 2950 kg. The 100 x 40 mm part (M121004055) is shown as 509 or 637 kg static and 1073 or 1284 kg buffing because the two Mackay catalogues differ.
The Multibuffer uses the optional Multicushion stud system. Mackay also lists type 304 stainless steel versions of the 20 x 18 mm to 50 x 35 mm sizes (manufacturer-stated).
Where this product is used
- Controlling vibration, shock and acoustic noise (manufacturer-stated).
- Controlling impact (manufacturer-stated).
- Use as simple machine feet (manufacturer-stated).
Features
- Designed for control of vibration, shock and acoustic noise (manufacturer-stated)
- Face profile gives a simple slip resistant surface (manufacturer-stated)
- Suits controlling impact or use as simple machine feet (manufacturer-stated)
- Uses the optional Multicushion stud system (manufacturer-stated)
- Static load and buffing load, each with deflection, are listed for every part number (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Part numbers | 12 (11 in Duro 55, one in Duro 40) |
| Diameter (A) | 20 to 150 mm |
| Height (B) | 18 to 55 mm |
| Hardness (Duro) | 55 (M12503540 is 40) |
| Thread (C, metric) | M6, M8, M10 and M16 |
| Studs | Optional Multicushion stud system |
Key specifications
| Mackay part number | Diameter A (mm) | Height B (mm) | Duro | Thread C | Static load (kg) | Static deflection (mm) | Buffing load (kg) | Buffing deflection (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| M12201855 | 20 | 18 | 55 | M6 | 26 | 2.5 | 57 | 5 | 0.01 |
| M12252555 | 25 | 25 | 55 | M6 | 25 | 3 | 53 | 6 | 0.02 |
| M12302055 | 30 | 20 | 55 | M8 | 46 | 2.5 | 105 | 5 | 0.03 |
| M12303055 | 30 | 30 | 55 | M8 | 47 | 3.5 | 94 | 7 | 0.04 |
| M12402055 | 40 | 20 | 55 | M8 | 78 | 2.5 | 184 | 5 | 0.05 |
| M12403055 | 40 | 30 | 55 | M8 | 78 | 3.5 | 162 | 7 | 0.06 |
| M12503540 | 50 | 35 | 40 | M10 | 60 | 4 | 130 | 8 | 0.1 |
| M12503555 | 50 | 35 | 55 | M10 | 157 | 4 | 316 | 8 | 0.1 |
| M12754055 | 75 | 40 | 55 | M10 | 323 | 4.5 | 696 | 9 | 0.3 |
| M121003055 | 100 | 30 | 55 | M16 | 580 | 3.5 | 1555 | 7.5 | 0.5 |
| M121004055 | 100 | 40 | 55 | M16 | 509 or 637 (catalogues differ) | 4.5 | 1073 or 1284 (catalogues differ) | 9 | 0.5 |
| M121505555 | 150 | 55 | 55 | M16 | 1382 | 6 | 2950 | 12 | 1.4 |

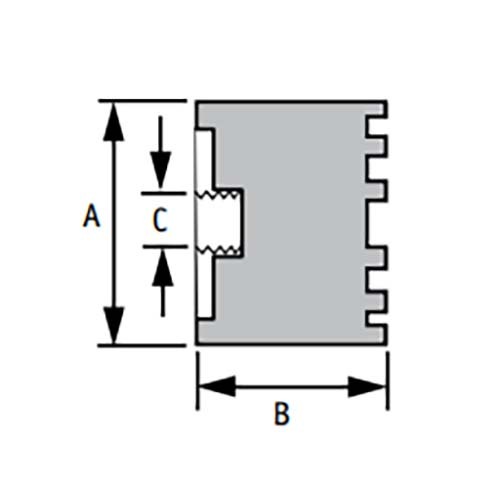

Dimensions are in millimetres: A is the diameter and B is the height, as read from the catalogue diagram, and C is the metric thread size. The load columns use Mackay's own headings (Static and Buffing, each with Load in kg and deflection in mm). Mackay prints all properties as nominal and asks you to contact them for technical advice. The 50 x 35 mm Duro 40 part is M12503540; the other parts are Duro 55. Where the Mackay Vibration Isolators catalogue (Industrial Edition 09/2026) and the older Mackay Industrial Rubber Technology catalogue print different loads, both figures are shown, newer catalogue first. The older catalogue prints no load figures for M121003055.
Selecting the right option
Choose the buffer by load first. Each part number has its own static load and buffing load, each with its own deflection, so work out the load each buffer carries and stay within the figure that matches how you use it. Because the figures are nominal, contact Mackay for critical loads and for M121004055, where the two catalogues differ. M121003055 is listed in the current catalogue only, so there is no second figure to check it against. The C column gives the thread size for the optional studs, which are chosen from the Multicushion stud list linked below. For a type 304 stainless steel version, see the stainless Multibuffer.
Related products
The stainless steel version is Mackay Multibuffer Stainless Steel. Studs for the optional stud system: Mackay Stud for Multicushion Isolator. Cushion isolators: Mackay Multicushion Isolator and Mackay Multicushion Isolator Stainless Steel.
