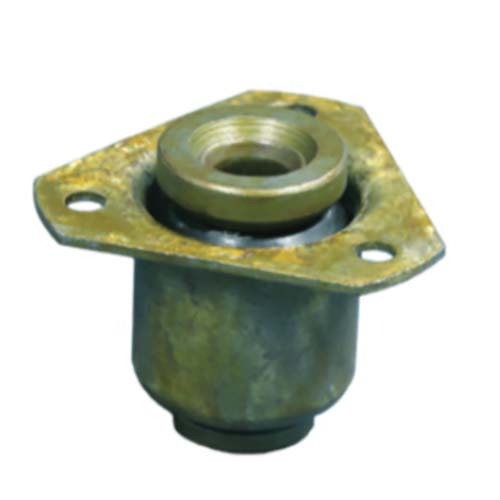

Mackay Recessed Flange Isolator M70675
Available
Mackay M70675 is a one-piece recessed flange isolator that gives a low profile way of supporting a range of equipment. Its fail-safe feature protects the supported equipment under shock loads. It has a three-hole flange (3 x ø8.4mm holes on a 69.9mm PCD), a body ø47.6mm and an overall height of 64mm. Three compression figures for the one part number: 100kg with 1.0mm deflection, 147kg with 1.63mm and 200kg with 2.3mm. Weight is 0.4kg.
Where this product is used
- Supporting a range of equipment where a low profile recessed flange isolator is needed
- Equipment that needs protection from shock loads through the isolator's fail-safe feature
Features
- One-piece recessed flange isolator with a low profile
- Fail-safe feature protects the supported equipment under shock loads
- Three-hole flange, 3 x ø8.4mm holes on a 69.9mm PCD

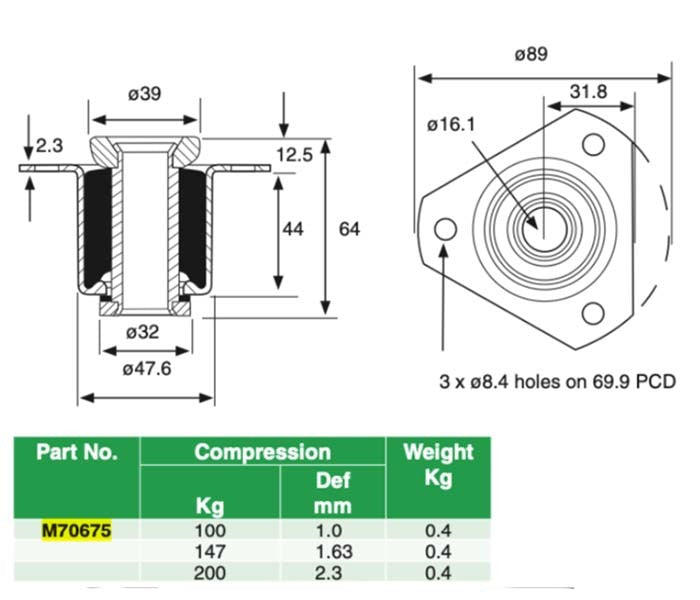

- Flange diameter (diagram): ø89mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Flange Vibration Isolator |
| Flange diameter (diagram) | ø89mm |
| Fixing holes | 3 x ø8.4mm on a 69.9mm PCD (pitch circle diameter) |
| Overall height | 64mm |
| Body diameter | ø47.6mm |
| Centre hole (plan view) | ø16.1mm |
| Compression | 100, 147 and 200kg |
| Deflection (Def) | 1.0, 1.63 and 2.3mm |
| Weight | 0.4kg |
| Mackay part number | M70675 |
| Compression (kg) | 100 to 200 |
| Deflection, Def (mm) | 1.0 to 2.3 |
| Weight (kg) | 0.4 |
Choosing the right option
Work out the share of the machine weight each mount carries and compare it with these figures. Check the three ø8.4mm holes on a 69.9mm PCD and the 64mm overall height against your mounting. All properties are nominal.
