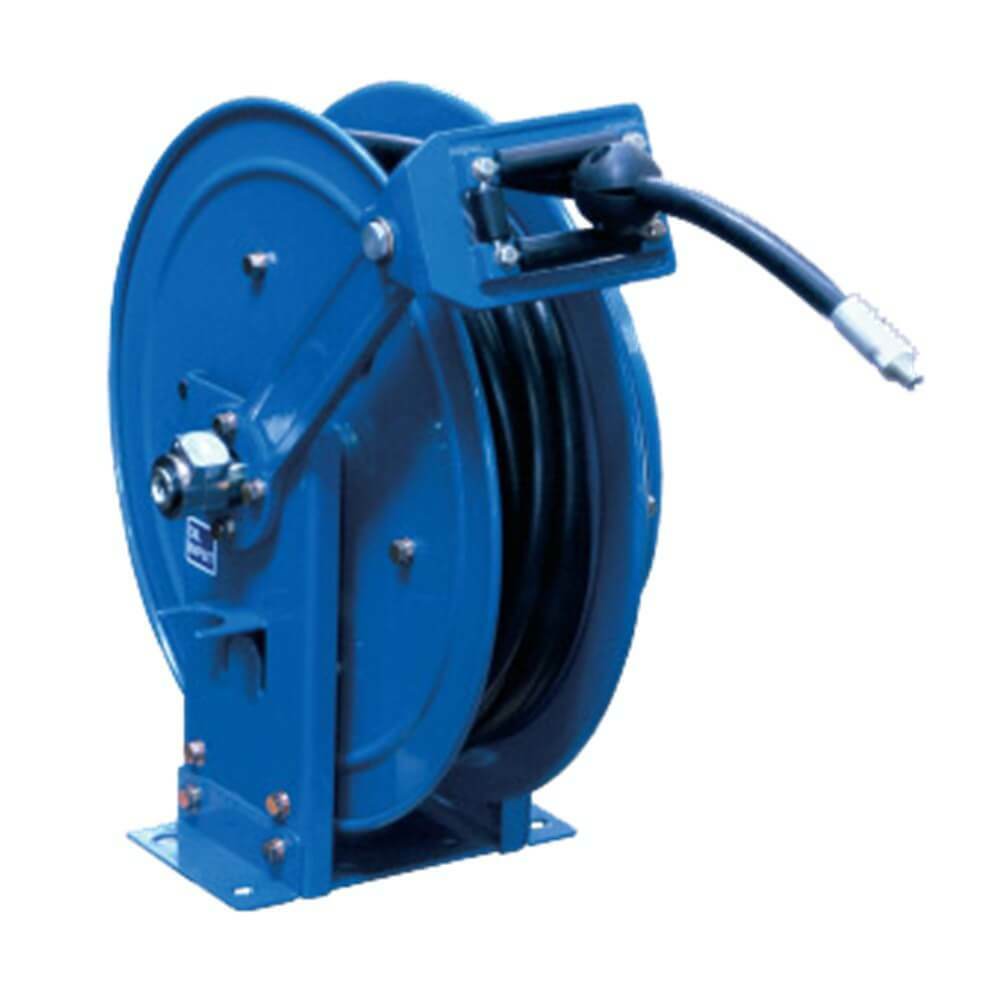

Macnaught 1/4" x 15m Twin Pedestal Grease Reel MGTP0615-01
Available
The Macnaught MGTP0615-01 is a heavy-duty, spring-rewind grease hose reel. It comes fitted with 15m of 6mm (1/4") inside diameter hose and has 1/4" BSP connections. It is ideal for truck mount and mine applications. Working pressure is up to 34,500 kPa (5,000 psi) and the maximum temperature is 100°C.
Twin pedestal means the reel drum is carried on two supports. BSP is the British Standard Pipe thread. (F) means female and (M) means male. Working pressure is the highest pressure the reel and hose are rated for, and line pressure must not exceed it. Skin contact with pressurised air or fluid could result in severe bodily injury. It is the smaller-bore of the two twin pedestal grease reels. The MGTP0915-01 has a 9mm (3/8") hose and 3/8" BSP connections, and the single pedestal MGS0615-01 has the same 6mm hose as a single pedestal reel.
Where this product is used
- Grease lines on trucks and mobile service vehicles
- Mine site and heavy equipment greasing
- Workshop grease distribution that needs 15m of hose on a reel
Features
- Fitted with 15m x 6mm i.d. Hose
- Rated for grease
- Working pressure up to 34,500 kPa (5,000 psi)
- Maximum operating temperature of 100°C
- 1/4" BSP (F) reel inlet and 1/4" BSP (M) hose outlet
- Heavy-duty spring-rewind design
- Wall and floor mounting bracket built into the reel
- Line pressure must not exceed the reel's rated operating pressure
- Skin contact with pressurised air or fluid could result in severe bodily injury
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | MGTP0615-01 |
| Part number | MGTP0615-01 |
| Type | Twin pedestal, spring-rewind, heavy duty |
| Fluid | Grease |
| Hose | 15m x 6mm i.d. Hose |
| Working pressure | 34,500 kPa (5,000 psi) |
| Maximum temperature | 100°C |
| Reel inlet | 1/4" BSP (F) |
| Hose outlet | 1/4" BSP (M) |
Supplied with
- Reel with 15m x 6mm i.d. Hose fitted
- Built-in wall and floor mounting bracket
Related Macnaught products
- Macnaught 10mm x 15m Twin Pedestal Grease Reel MGTP0915-01: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught 1/4" x 15m Twin Pedestal Grease Reel MGTP0615-01
SKU: A0082795 | Model: MGTP0615-01
The MGTP0615-01 is a heavy-duty twin pedestal, spring-rewind reel for grease. It has 15m of 6mm i.d. Hose fitted and 1/4" BSP connections, rated up to 34,500 kPa (5,000 psi) and 100°C.
